0.8mm
Ford #4: 8 sec or less
Dyes, inks, shellac and stain.
$519Cap 5100-1
Fuji Spray · T-Model gravity gun
Gravity fed.
Finish ready.

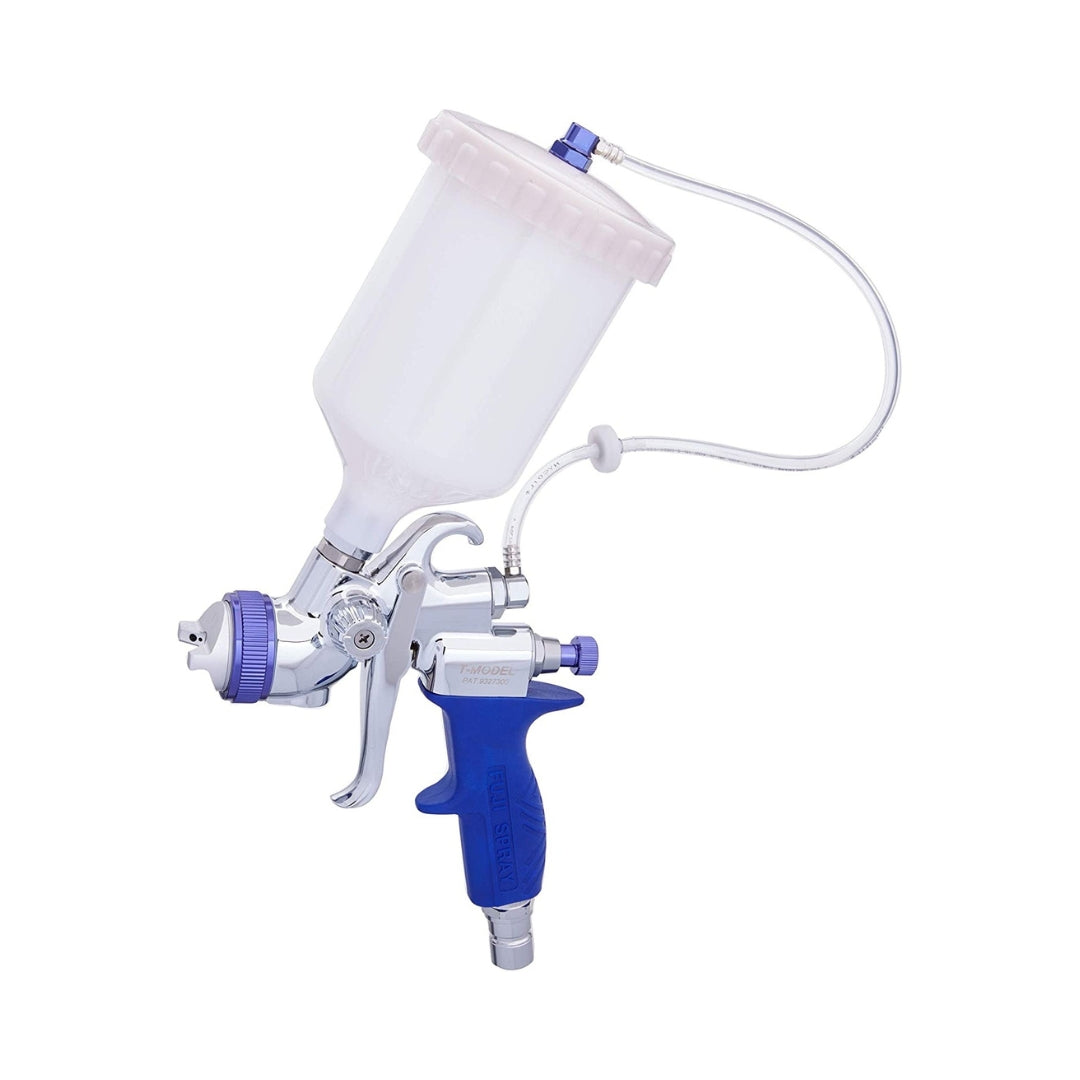

The Fuji T75G is the T-Model HVLP turbine gun with a 600 mL centre-mounted gravity cup. Pick the air cap size it comes with, from 0.8 mm for stains to 2.5 mm for multi-fleck finishes.
600 mLgravity cup
7air cap sizes
1.3 mmthe standard cap
T-ModelFuji's pro gun line
Fusil à peinture Fuji T-Model HVLP à turbine, alimentation par gravité
600 mL gravity cup · Choose your air cap, 0.8 to 2.5 mm
Prix habituel
$519.00 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji T75G (5175G) is a T-Model HVLP turbine spray gun with a 600 mL centre-mounted gravity cup. It's light and comfortable to hold, with side-mounted fan control and stainless-steel fluid passages for waterborne and solvent-based coatings. Choose the air cap it comes with, from 0.8 mm to 2.5 mm.
Key Features & Benefits
- 600 mL centre-mounted cup: Coating feeds down from the top, which suits horizontal surfaces, shading and touch-up work.
- Side-mounted fan control: Full incremental adjustment of the fan pattern without taking your eye off the work.
- Rotating rear nipple: Turns the pressure tube to either side, which makes the gun easier to set up for left-handed painters.
- Stay Cool Handle: A nylon-coated handle that stays cool and comfortable through a long day.
- Stainless fluid passages: Made for both waterborne and solvent-based coatings.
- Easy to strip down: Metal fluid knob and collar, and it comes apart quickly for cleaning.
Applications & Recommended Uses
Coating feeds down from the 600 mL cup on top, which suits horizontal surfaces, shading and touch-up work.
- Cabinets and flat work
- Furniture, shading and touch-ups
- Waterborne and solvent-based coatings, thanks to the stainless fluid passages
- Most lacquers, sealers, varnishes and polyurethanes with the standard 1.3 mm cap, and waterborne paint and primer with the 2.0 mm cap
Which Size Do I Need?
| Size | Part | Use it for |
|---|---|---|
| 0.8 mm | 5100-1 | Dyes, inks, shellac and stain. (Ford #4: 8 sec or less) |
| 1.0 mm | 5100-2 | Shellac, stain, sanding sealer and bathtub coatings. (Ford #4: 8 to 17 sec) |
| 1.3 mm | 5100-3 | Sanding sealer, clear lacquer, varnish and polyurethane. (Ford #4: 17 to 25 sec) |
| 1.5 mm | 5100-4 | Polyurethane and pigmented lacquer. (Ford #4: 25 to 37 sec) |
| 1.8 mm | 5100-5 | Pigmented lacquer, oil-based paint and primer. (Ford #4: 37 to 50 sec) |
| 2.0 mm | 5100-6 | Waterborne paint and primer. (Ford #4: 50 to 80 sec) |
| 2.5 mm | 5100-7 | Multi-fleck finishes. (Ford #4: 80 sec or more) |
Uses and #4 Ford cup ranges from Fuji Spray's 5100 chart. The 1.3 mm cap (5100-3) is standard.
What's Included
- Fuji T75G T-Model spray gun (5175G)
- 600 mL nylon gravity cup
- Air cap set in the size you choose (1.3 mm is standard)
Compatibility
The T75G is a gun option on Fuji Mini-Mite Platinum, Q Platinum and D6 systems. It takes 5100 air cap sets and the 5262 rebuild kit. Not sure about your turbine? Ask us.
Product Specifications
| Model | 5175G, T-Model T75G |
| Type | HVLP turbine spray gun, gravity feed |
| Cup | 600 mL (600 cc) nylon, centre-mounted |
| Air cap sizes | 0.8, 1.0, 1.3 (standard), 1.5, 1.8, 2.0 and 2.5 mm |
| Fan control | Side-mounted, full incremental adjustment |
| Fluid passages | Stainless steel, for waterborne and solvent-based coatings |
| Rebuild kit | 5262 |
| Replacement air caps | 5100 series |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
How to Set Up and Use
- Strain and check. Strain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- Connect. Attach the turbine hose to the gun and fit the cup's pressure tube. Turn the rear nipple to suit your hand.
- Set the fluid. Turn the fluid knob clockwise to close it, then back it out until you get enough material.
- Test on cardboard. Adjust the fan control and fluid until the pattern is even.
- Spray. Hold the gun square to the surface and overlap each pass by about half.
- Clean right away. Empty the cup, flush it through with the right cleaner and wipe it down. Never soak the whole gun.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 5100 air caps, T75G cups and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Size guide
Pick the air cap it ships with.
Thin coatings atomize best through a small cap and thick ones need a bigger opening. Measure your coating with the #4 Ford cup and choose the size whose range it falls in.
1.0mm
Ford #4: 8 to 17 sec
Shellac, stain, sanding sealer and bathtub coatings.
$519Cap 5100-2
1.3mm
Ford #4: 17 to 25 sec
Sanding sealer, clear lacquer, varnish and polyurethane.
$519Cap 5100-3
1.5mm
Ford #4: 25 to 37 sec
Polyurethane and pigmented lacquer.
$519Cap 5100-4
1.8mm
Ford #4: 37 to 50 sec
Pigmented lacquer, oil-based paint and primer.
$519Cap 5100-5
2.0mm
Ford #4: 50 to 80 sec
Waterborne paint and primer.
$519Cap 5100-6
2.5mm
Ford #4: 80 sec or more
Multi-fleck finishes.
$519Cap 5100-7
Uses and Ford cup ranges from Fuji Spray's 5100 air cap chart. Test on cardboard before you spray the job.
Not sure? Start with 1.3 mm.
It handles most lacquers, sealers, varnishes and polyurethanes. You can add other sizes later with 5100 air cap sets.
Compare
Which Fuji gun is right for you?
All five are HVLP turbine guns. Air caps and rebuild parts are made for one gun family, so parts for the T70 and T75G, the G-XPC and the M-Model guns don't swap.
| T75GThis gun | T70 | G-XPC | 7001 | 7002G | |
|---|---|---|---|---|---|
| Feed | Gravity, centre-mounted cup | Bottom feed | Gravity, side-mounted cup | Bottom feed | Gravity, U-tube cup |
| Cup | 600 mL nylon | 1 qt (1000 mL), pressurized | 400 mL | 1 qt | 400 mL aluminum |
| Air cap | Your choice, 0.8 to 2.5 mm | Your choice, 0.8 to 2.5 mm | 1.4 mm installed | 1.3 mm installed | 1.3 mm installed |
| Other sizes | 5100 sets | 5100 sets | 8050 sets, 0.7 to 2.2 mm | 7020 sets, 0.8 to 2.0 mm | 7020 sets, 0.8 to 2.0 mm |
| Rebuild kit | 5262 | 5262 | 9610 | 2342 | 2342 |
| Comes on | Mini-Mite, Q Platinum and D6 systems | Mini-Mite, Q Platinum and D6 systems | Mini-Mite, Q Platinum and D6 systems | Semi-PRO 2 | Semi-PRO 2 Gravity |
| Best for | Cabinets, flat work and touch-ups | Bigger jobs, fewer refills | Tight spots, any angle | Hobby and occasional use | Hobby and occasional use |
| Price | $519 | $519 | $509 | $319 | $319 |
Cup sizes, air caps and system pairings from Fuji Spray. Prices update from the store.
Features
Built for fine finishing.
600 mL centre-mounted cupCoating feeds down from the top, which suits horizontal surfaces, shading and touch-up work.
Side-mounted fan controlFull incremental adjustment of the fan pattern without taking your eye off the work.
Rotating rear nippleTurns the pressure tube to either side, which makes the gun easier to set up for left-handed painters.
Stay Cool HandleA nylon-coated handle that stays cool and comfortable through a long day.
Stainless fluid passagesMade for both waterborne and solvent-based coatings.
Easy to strip downMetal fluid knob and collar, and it comes apart quickly for cleaning.
What's included
Ready to spray.
In the box
- Fuji T75G T-Model spray gun (5175G)
- 600 mL nylon gravity cup
- Air cap set in the size you choose (1.3 mm is standard)
Worth adding
Worth having on hand
Specifications
T75G specs.
| Model | 5175G, T-Model T75G |
|---|---|
| Type | HVLP turbine spray gun, gravity feed |
| Cup | 600 mL (600 cc) nylon, centre-mounted |
| Air cap sizes | 0.8, 1.0, 1.3 (standard), 1.5, 1.8, 2.0 and 2.5 mm |
| Fan control | Side-mounted, full incremental adjustment |
| Fluid passages | Stainless steel, for waterborne and solvent-based coatings |
| Rebuild kit | 5262 |
| Replacement air caps | 5100 series |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
From box to first coat.
- 1Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 2ConnectAttach the turbine hose to the gun and fit the cup's pressure tube. Turn the rear nipple to suit your hand.
- 3Set the fluidTurn the fluid knob clockwise to close it, then back it out until you get enough material.
- 4Test on cardboardAdjust the fan control and fluid until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Clean right awayEmpty the cup, flush it through with the right cleaner and wipe it down. Never soak the whole gun.
Customer reviews
From T75G owners.
“Great spray gun. Fast shipping, easy instructions. Works great.”
Goes with it
More for your T75G.
Air caps, cups, gaskets and a rebuild kit, all in stock at our Mississauga spray centre.
5100 air caps
0.8 to 2.5 mm caps for T70 and T75G guns.
$99.959775 1000 mL cup
Bigger T75G gravity cup, fewer refills.
$84.759860 600 mL nylon cup
Spare gravity cup for the T75G.
$74.159740 400 mL cup
Smaller, lighter T-Series gravity cup.
$70.955262 rebuild kit
Seals and parts for T70 and T75 guns.
$58.255330 gun holder stand
Holds a gravity gun upright to fill and clean.
$21.959216C chemical-resistant gaskets
5-pack for 600 cc gravity cups.
$29.055137 air cap case
Holds spare T-Series and M-Model cap sets.
$20.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
T75G questions, answered.
Which air cap size should I choose?
Start with the 1.3 mm cap for most lacquers, sealers, varnishes and polyurethanes. Go smaller for dyes, shellac and stain, 1.8 mm for pigmented lacquer and oil-based paint, and 2.0 mm for waterborne paint and primer.
Can I change the air cap later?
Yes. The T75G takes 5100 air cap sets from 0.8 to 2.5 mm. Each set is a matched cap, needle and nozzle.
Which turbines does the T75G work with?
Fuji offers the T75G on its Mini-Mite Platinum, Q Platinum and D6 systems. Have an older or different turbine? Ask us before you order.
T75G, T70 or G-XPC: which should I get?
The T75G has a 600 mL cup on top, for cabinets, flat work and touch-ups. The T70 has a 1 qt bottom-feed cup for fewer refills. The G-XPC has a 400 mL side-mounted cup for tight spots and spraying at any angle.
Can I get a bigger cup?
Yes. The 9775 1000 mL cup fits the T75G, and so do the 9860 600 mL and 9740 400 mL cups.
Is it good for waterborne coatings?
Yes. The fluid passages are stainless steel, so it handles waterborne and solvent-based coatings. Use the 2.0 mm cap for waterborne paint and primer.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
