0.8mm
Ford #4: 8 sec or less
Dyes, inks, shellac and stain.
$99.95#5100-1
Fuji Spray · T-Series air cap sets
The right cap
for every coat.
Genuine Fuji 5100 air cap sets for the T70 and T75G guns. Each set is a matched air cap, needle and nozzle, in seven sizes from 0.8 mm for dyes and stains to 2.5 mm for multi-fleck finishes.
7sizes, 0.8 to 2.5 mm
3matched parts per set
1.3 mmthe standard set
T-SeriesT70 and T75G guns
Fuji 5100 Air Cap Sets for T70 and T75G Spray Guns, 0.8 to 2.5 mm
Cap, needle and nozzle · 7 sizes · T70 and T75G guns
Regular price
$99.95 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
Genuine Fuji 5100 air cap sets for the Fuji T70 and T75G T-Series HVLP spray guns. Each set is a matched, colour-coded air cap, fluid needle and fluid nozzle, in seven sizes from 0.8 mm to 2.5 mm. Changing size lets one Fuji gun spray everything from dyes and stains to pigmented lacquer, oil-based paint and waterborne primer with a fine finish.
Key Features & Benefits
- Seven sizes, 0.8 to 2.5 mm: match the cap to the coating for clean atomization.
- Complete matched set: air cap, needle and nozzle sized to work together.
- Colour-coded caps so you can tell sizes apart at a glance.
- Genuine Fuji Spray parts for T70 and T75G guns.
Compatibility
5100 sets fit the Fuji T70 bottom-feed and T75G gravity guns that come with Mini-Mite, Q Platinum and D6 systems. They don't fit M-Model guns (use 7020 sets), the G-XPC gun (use 8050 sets) or older Fuji guns.
Which Size Do I Need?
| Size | Part | Use it for |
|---|---|---|

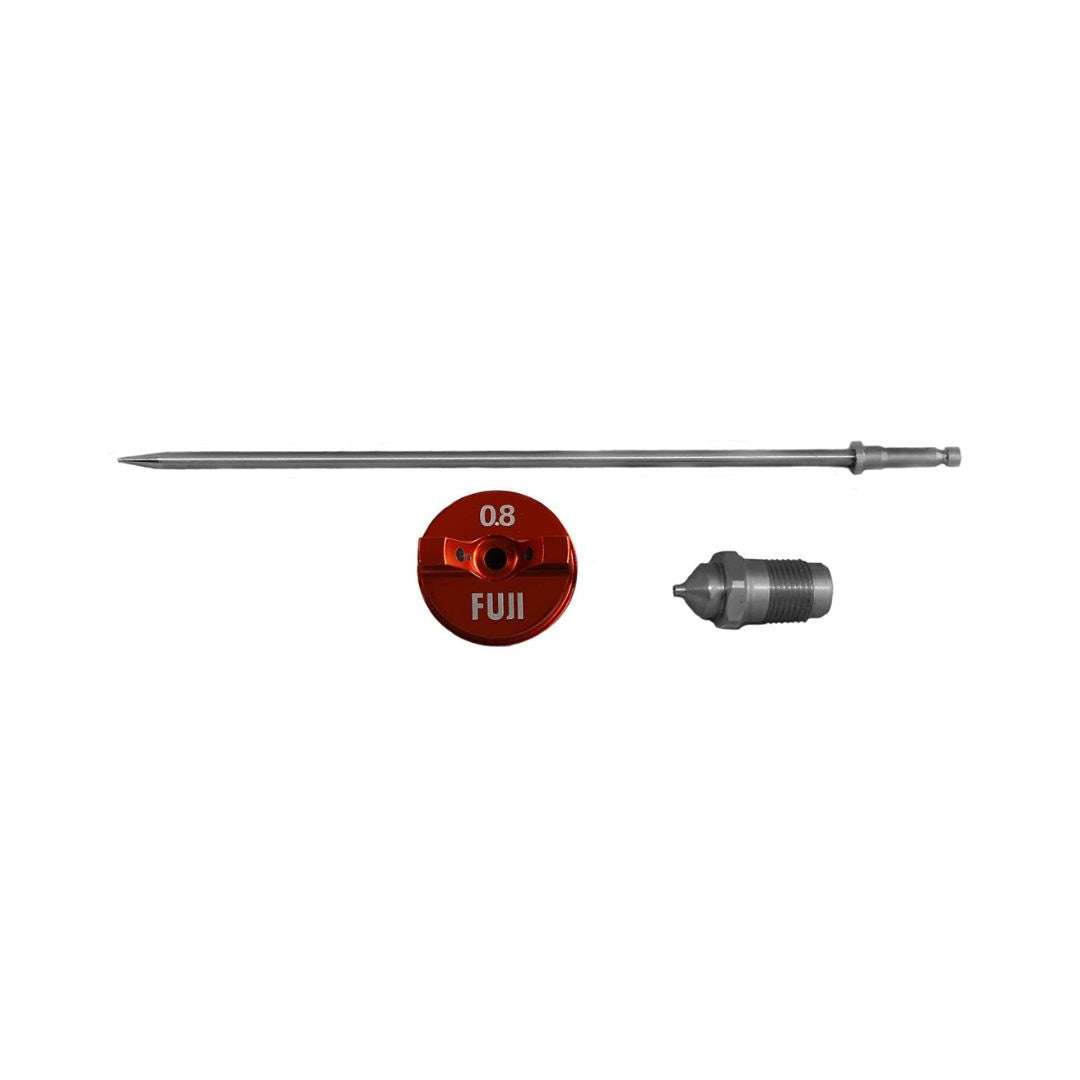

| 0.8 mm | 5100-1 | Dyes, inks, shellac and stain. (Ford #4: 8 sec or less) |

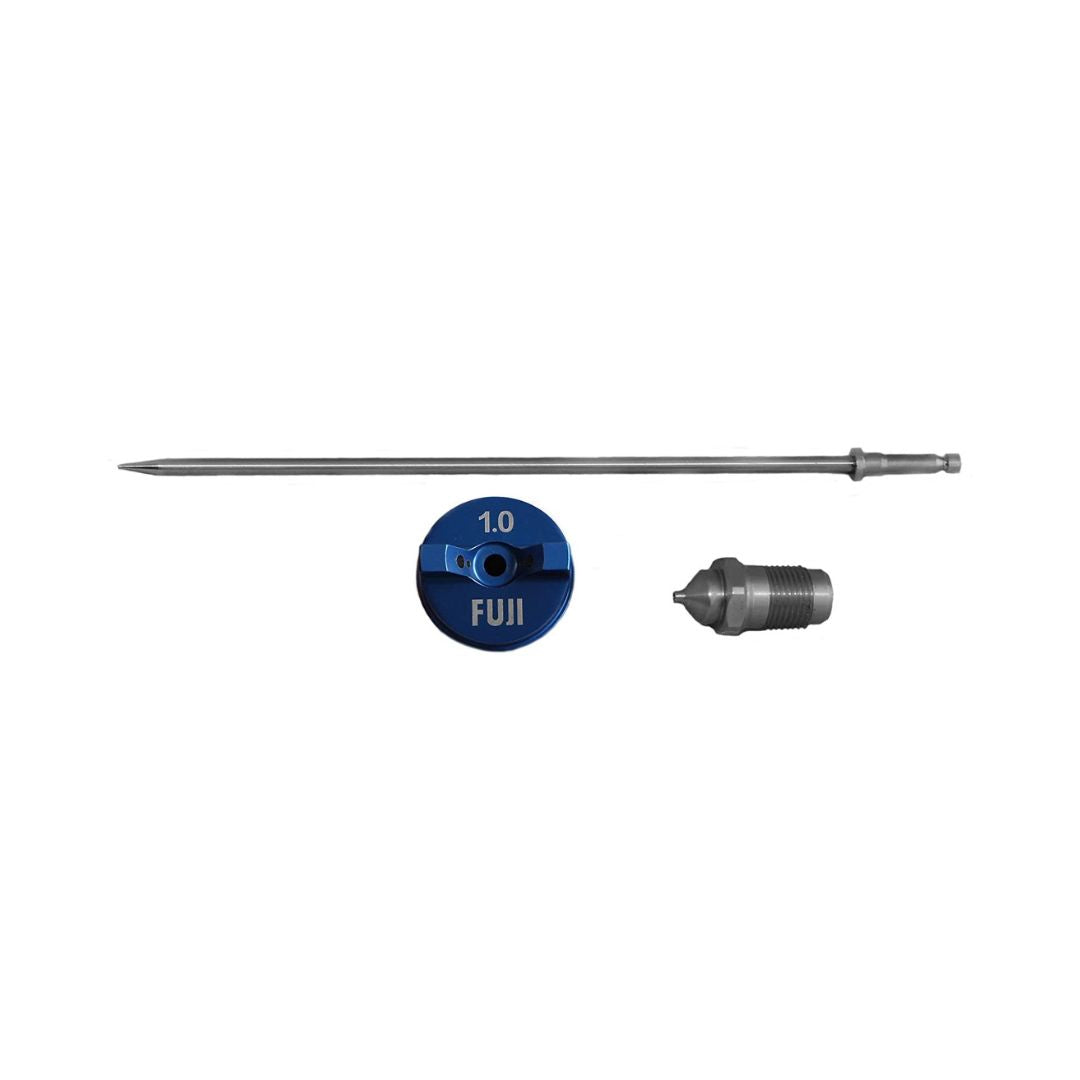

| 1.0 mm | 5100-2 | Shellac, stain, sanding sealer and bathtub coatings. (Ford #4: 8 to 17 sec) |

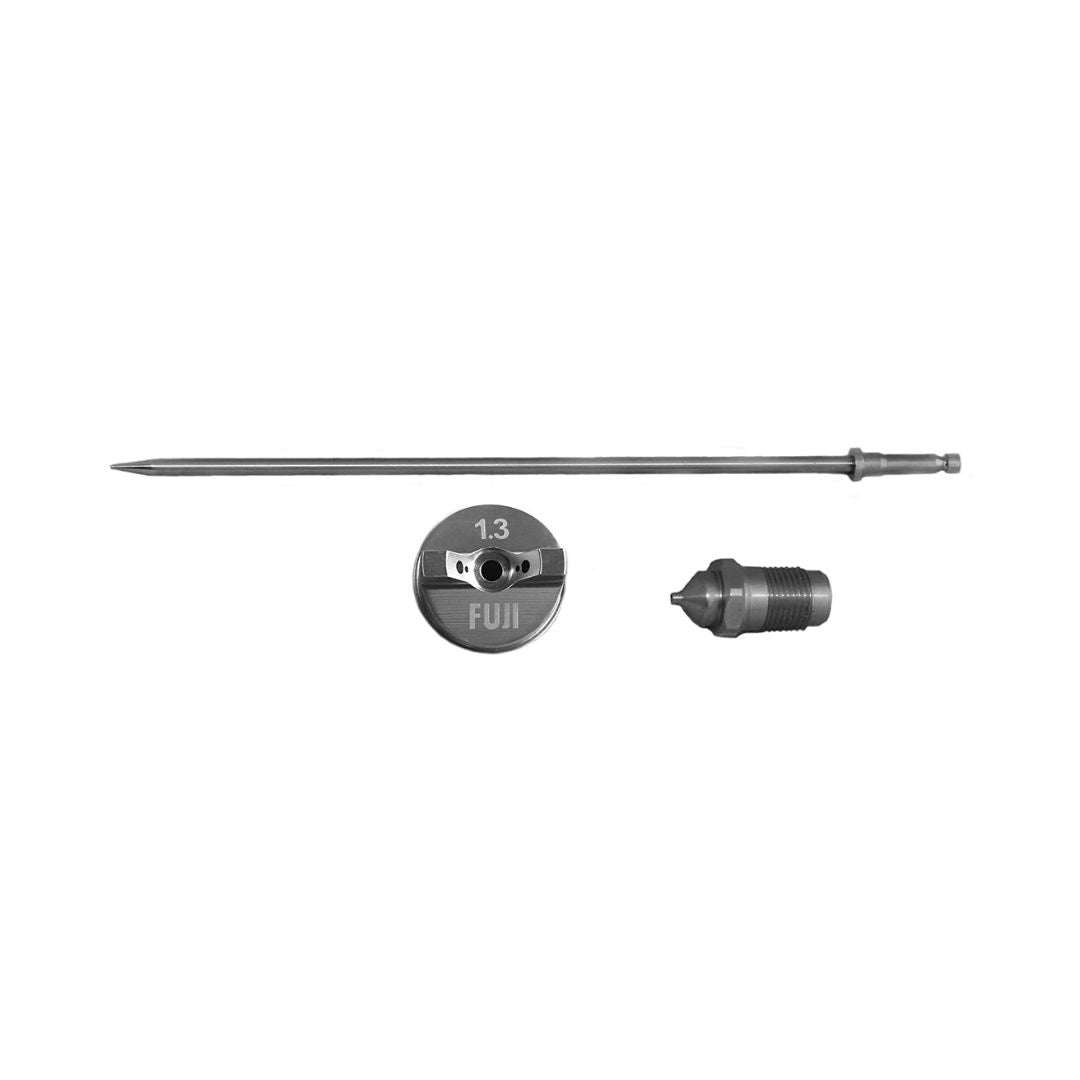

| 1.3 mm | 5100-3 | Sanding sealer, clear lacquer, varnish and polyurethane. (Ford #4: 17 to 25 sec) |
| 1.5 mm | 5100-4 | Polyurethane and pigmented lacquer. (Ford #4: 25 to 37 sec) |

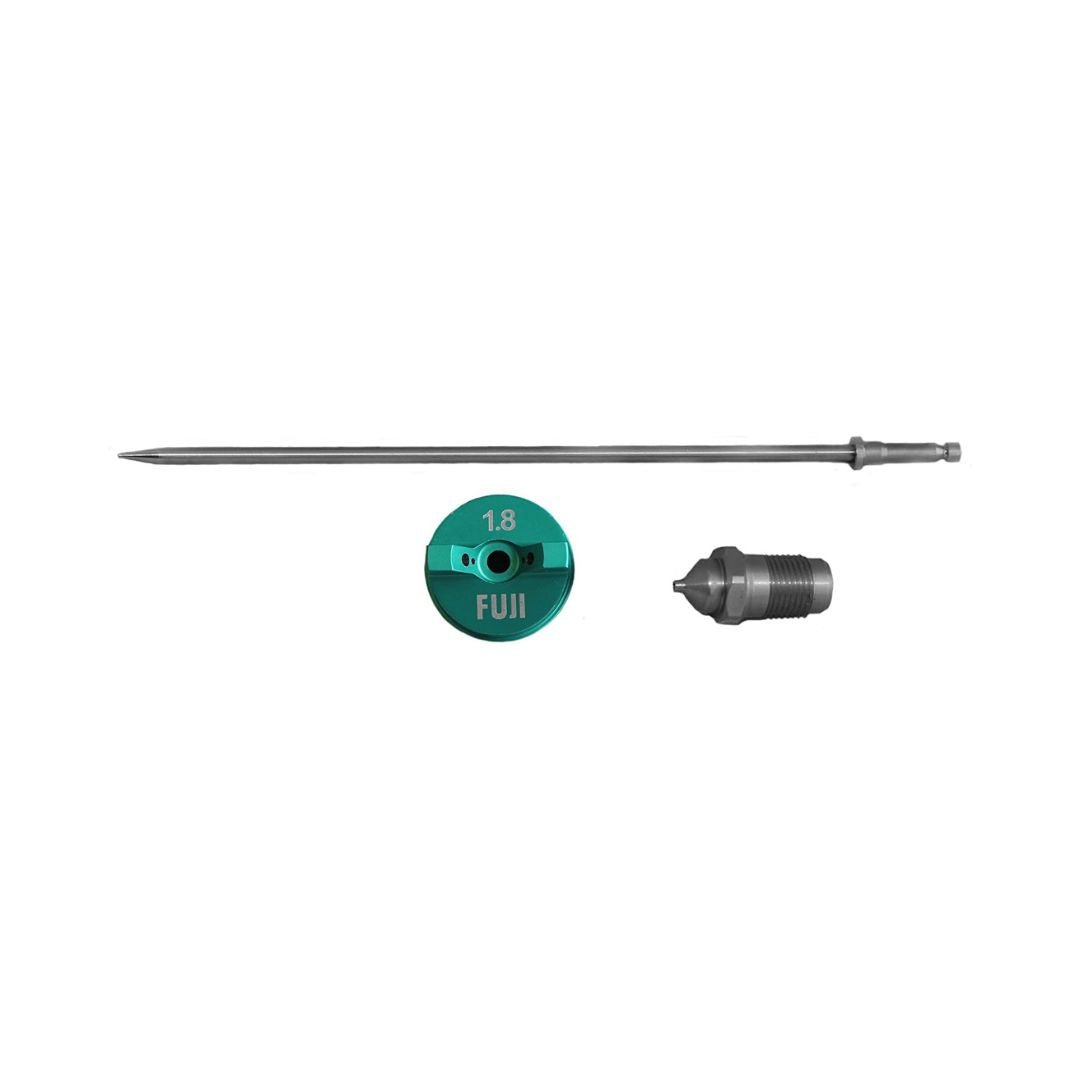

| 1.8 mm | 5100-5 | Pigmented lacquer, oil-based paint and primer. (Ford #4: 37 to 50 sec) |

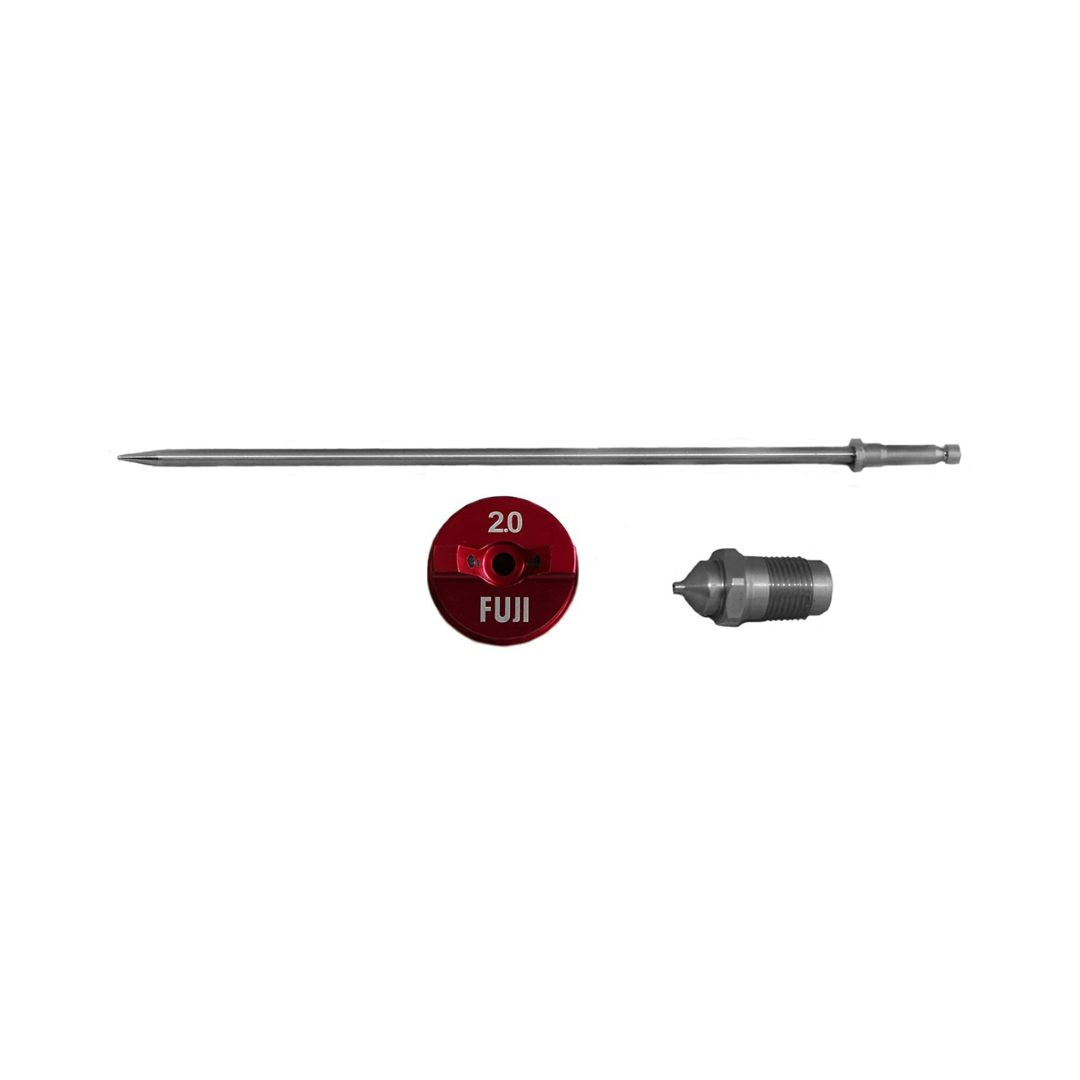

| 2.0 mm | 5100-6 | Waterborne paint and primer. (Ford #4: 50 to 80 sec) |

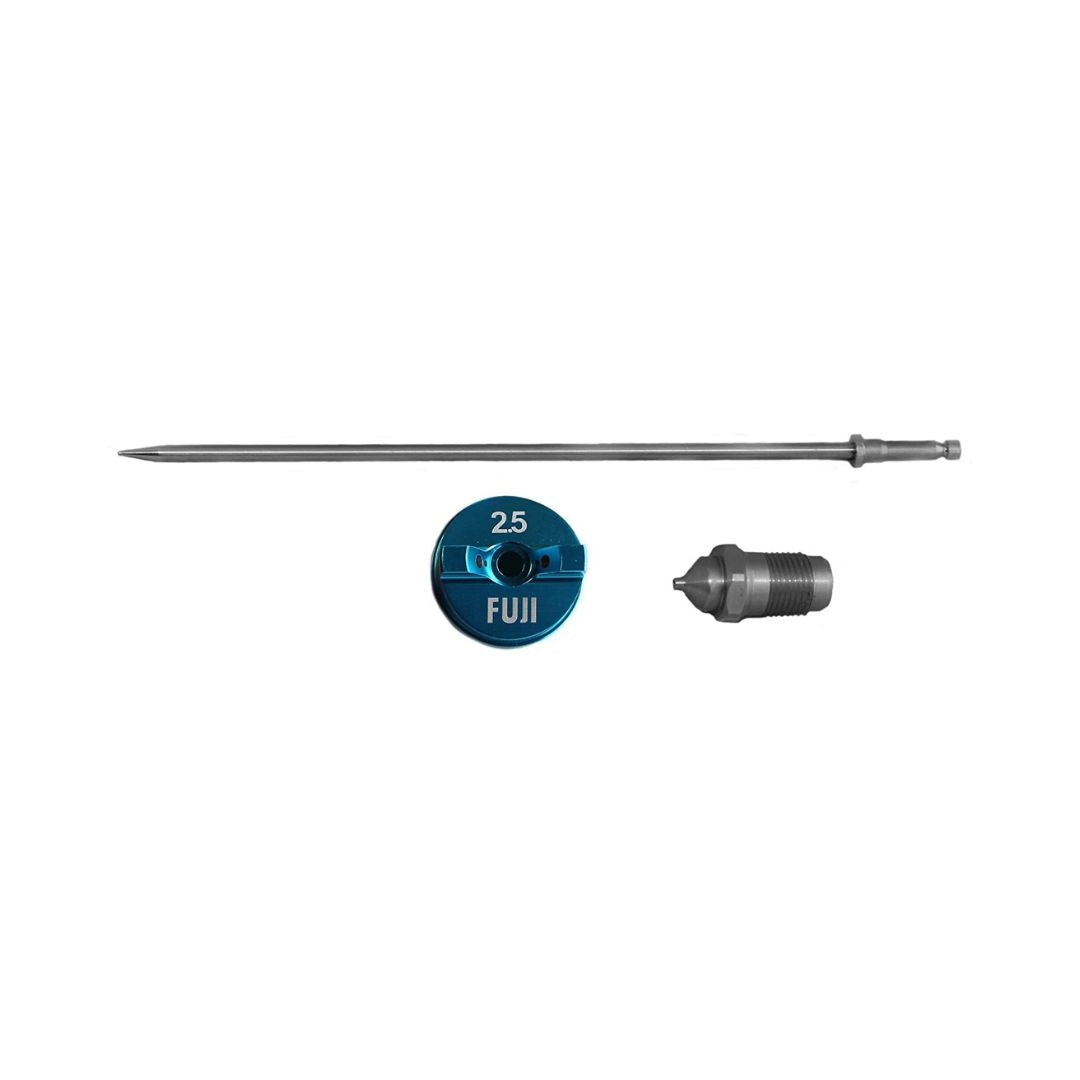

| 2.5 mm | 5100-7 | Multi-fleck finishes. (Ford #4: 80 sec or more) |

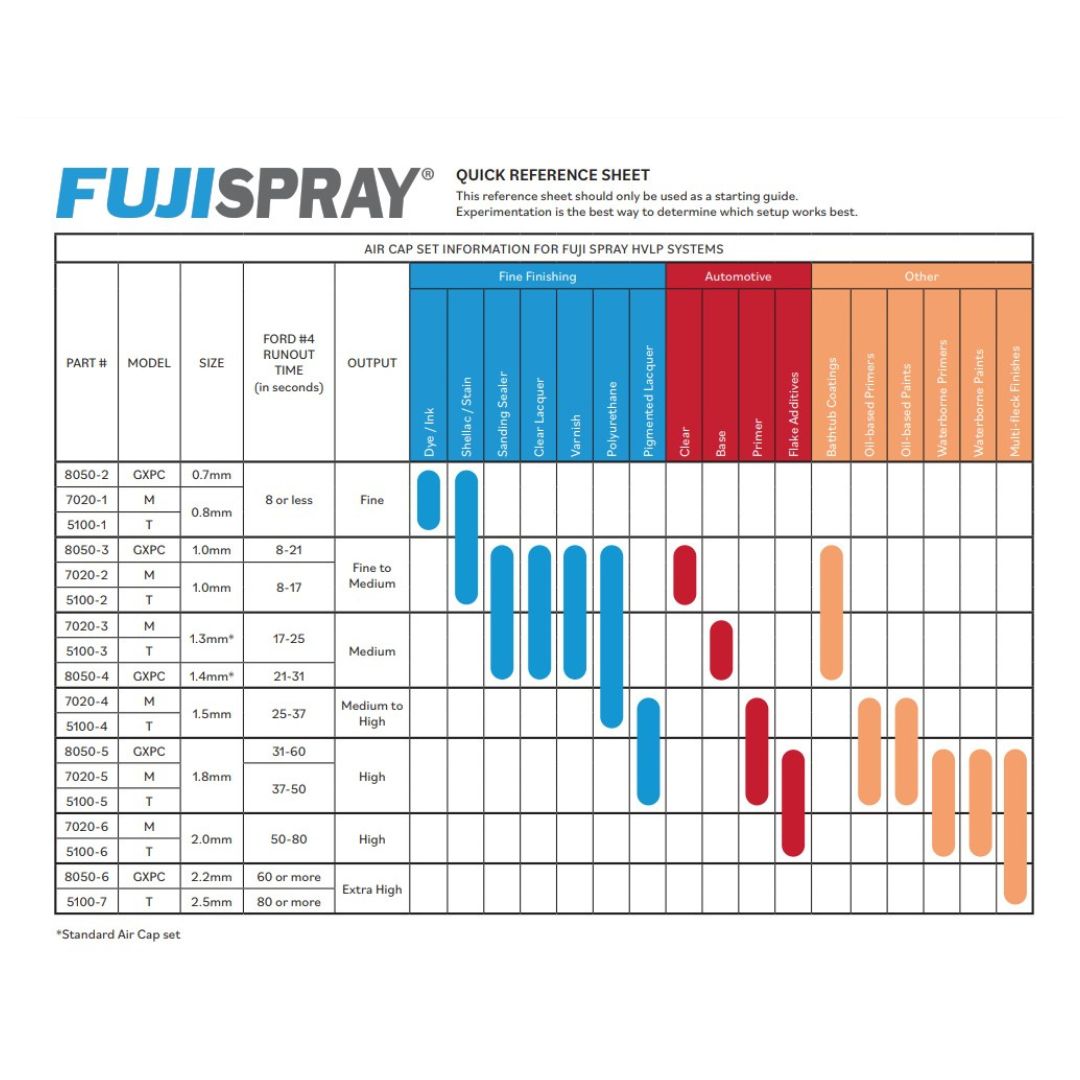

Size guide and #4 Ford cup ranges from Fuji Spray's 5100 chart. The 1.3 mm set is standard on the T70 and T75G.
Product Specifications
| Part numbers | 5100-1 (0.8 mm), 5100-2 (1.0 mm), 5100-3 (1.3 mm), 5100-4 (1.5 mm), 5100-5 (1.8 mm), 5100-6 (2.0 mm), 5100-7 (2.5 mm) |
| Includes | Colour-coded air cap, fluid needle and fluid nozzle |
| Fits | Fuji T70 and T75G T-Series HVLP turbine spray guns |
| Does not fit | M-Model, G-XPC or older Fuji guns |
| Standard set | 1.3 mm (5100-3) |
| Brand | Fuji Spray, Toronto, Canada |
How to Change an Air Cap Set
- Clean the gun first. Flush it with the right cleaner and unhook the hose.
- Remove the collar and air cap. Unscrew the collar at the front of the gun and lift off the air cap.
- Pull the needle. Unscrew the fluid control knob slowly so you don't lose the spring, squeeze the trigger and slide the needle out.
- Remove the nozzle. Use the gun wrench to unscrew the fluid nozzle.
- Fit the new set. Install the new nozzle snugly with the wrench, then the needle, spring, knob, air cap and collar. On T-Series guns, always fit the cap, needle and nozzle from the same set.
- Test on cardboard. Check viscosity with the #4 Ford cup, then adjust the fan and fluid flow until the pattern is even.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 5262 rebuild kits, spare cups and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Made for Fuji T-Series guns.
5100 sets fit the T70 bottom-feed and T75G gravity guns. Those are the T-Series guns that come with Fuji Mini-Mite, Q Platinum and D6 systems.
Size guide
Match the cap to the coating.
Thin coatings atomize best through a small cap. Thick ones need a bigger opening. Measure your coating with the #4 Ford cup and pick the set whose range it falls in.
1.0mm
Ford #4: 8 to 17 sec
Shellac, stain, sanding sealer and bathtub coatings.
$99.95#5100-2
1.3mm
Ford #4: 17 to 25 sec
Sanding sealer, clear lacquer, varnish and polyurethane.
$99.95#5100-3
1.5mm
Ford #4: 25 to 37 sec
Polyurethane and pigmented lacquer.
$99.95#5100-4
1.8mm
Ford #4: 37 to 50 sec
Pigmented lacquer, oil-based paint and primer.
$99.95#5100-5
2.0mm
Ford #4: 50 to 80 sec
Waterborne paint and primer.
$99.95#5100-6
2.5mm
Ford #4: 80 sec or more
Multi-fleck finishes.
$99.95#5100-7
Size guide and Ford cup ranges from Fuji Spray's 5100 air cap chart. Use it as a starting point and always test on cardboard first.
Not sure? Start with 1.3 mm.
It's the set that comes on the T70 and T75G, and it handles most lacquers, sealers, varnishes and polyurethanes. Add a 2.0 mm set if you spray waterborne paint or primer.
What's included
A complete, matched set.
Every 5100 set
- Colour-coded air cap
- Matching fluid needle
- Matching fluid nozzle
- Genuine Fuji Spray part, sized as marked
Worth adding
Keep your sets organized
Specifications
5100 air cap specs.
| Part numbers | 5100-1 (0.8 mm), 5100-2 (1.0 mm), 5100-3 (1.3 mm), 5100-4 (1.5 mm), 5100-5 (1.8 mm), 5100-6 (2.0 mm), 5100-7 (2.5 mm) |
|---|---|
| Includes | Colour-coded air cap, fluid needle and fluid nozzle |
| Fits | Fuji T70 and T75G T-Series HVLP turbine spray guns |
| Does not fit | M-Model, G-XPC or older Fuji guns |
| Standard set | 1.3 mm (5100-3) |
| Brand | Fuji Spray, Toronto, Canada |
Changing sizes
Swap sizes in six steps.
- 1Clean the gun firstFlush it with the right cleaner and unhook the hose.
- 2Remove the collar and air capUnscrew the collar at the front of the gun and lift off the air cap.
- 3Pull the needleUnscrew the fluid control knob slowly so you don't lose the spring, squeeze the trigger and slide the needle out.
- 4Remove the nozzleUse the gun wrench to unscrew the fluid nozzle.
- 5Fit the new setInstall the new nozzle snugly with the wrench, then the needle, spring, knob, air cap and collar. On T-Series guns, always fit the cap, needle and nozzle from the same set.
- 6Test on cardboardCheck viscosity with the #4 Ford cup, then adjust the fan and fluid flow until the pattern is even.
Customer reviews
From 5100 owners.
“These are very good quality as expected and easy to clean.”
“2.0 did the trick”
Goes with it
More for your T-Series gun.
Cups, a rebuild kit and storage for your caps. All in stock at our Mississauga spray centre.
5137 air cap case
Holds spare T-Series and M-Model cap sets.
$20.355100 air cap bundle
Several T-Series sizes in one order.
$420.155262 rebuild kit
Seals and parts for T70 and T75 guns.
$58.259860 600 mL nylon cup
Spare gravity cup for the T75G.
$74.159775 1000 mL cup
Bigger T75G gravity cup, fewer refills.
$84.759740 400 mL cup
Smaller, lighter T-Series gravity cup.
$70.95Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
5100 air cap questions, answered.
Which Fuji guns do 5100 air caps fit?
Which size should I start with?
The 1.3 mm set that comes on the gun suits most lacquers, sealers, varnishes and polyurethanes. Go smaller for dyes, shellac and stain, and bigger for pigmented lacquer, oil-based paint, primer and waterborne paint.
What size do I need for waterborne paint and primer?
Fuji's chart recommends the 2.0 mm set (5100-6) for waterborne paint and primer. Check viscosity with the #4 Ford cup and thin only as the coating maker allows.
What's included in a set?
A colour-coded air cap, fluid needle and fluid nozzle. They're matched, so always change all three together.
How do I use the Ford cup ranges?
Fill the #4 Ford cup that came with your system, lift it and time how long the coating takes to run out. Pick the set whose range matches the time.
Can I buy several sizes at once?
Yes. The 5100 air cap bundle puts several sizes in one order, and the 5137 carry case keeps spare sets clean and together.
Ready for the next coating?
Tell us what you're spraying and which gun you have. We'll tell you which size to use and how to thin.
