Fuji Spray · T-Series gravity cup
More cup.
Fewer refills.

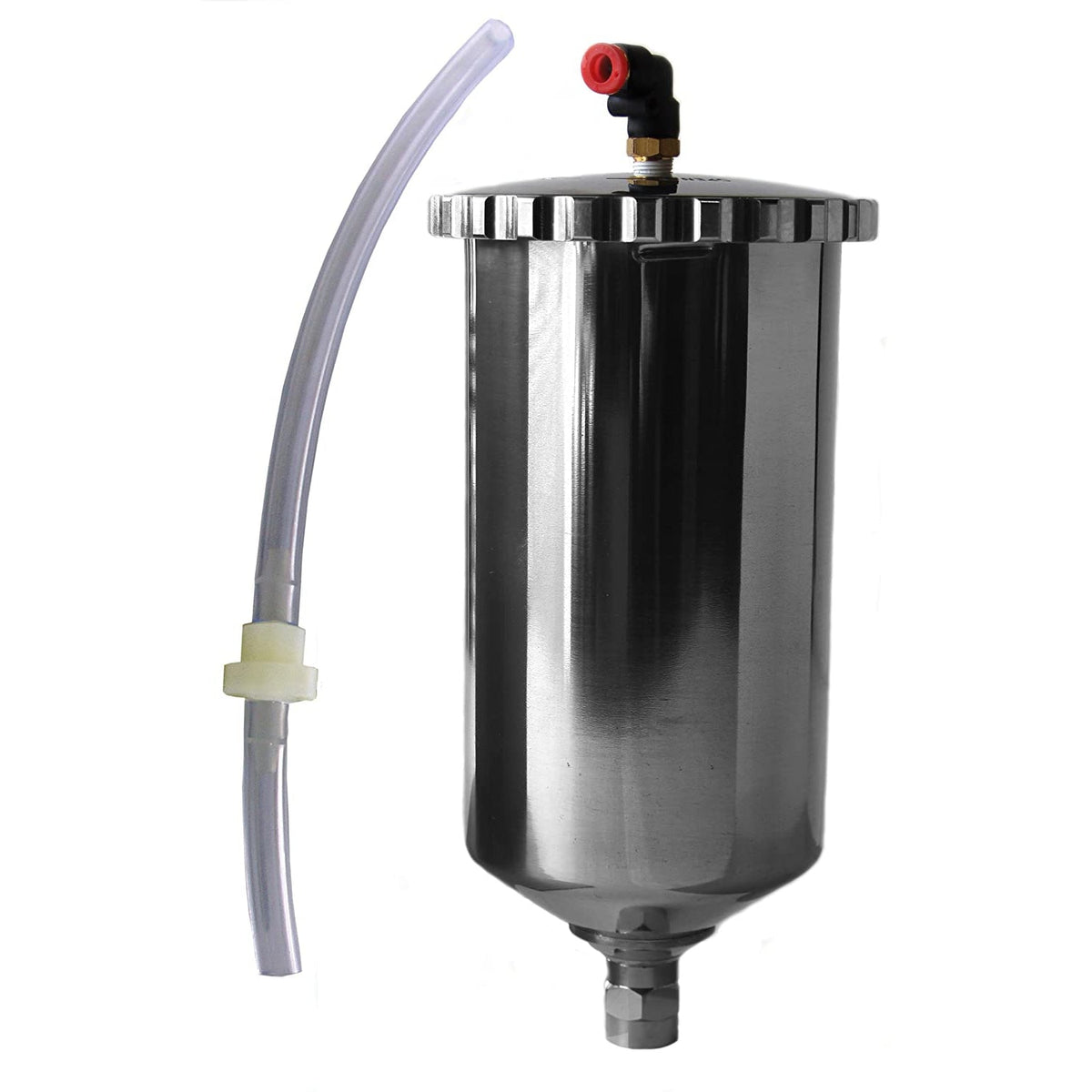

The genuine Fuji 9775 is a 1000 mL aluminum gravity cup for the T75G, the biggest centre-mount cup Fuji makes. It comes with the lid, a fitted gasket and a check-valve pressure tube.
1000 mLaluminum gravity cup
4parts in the assembly
T75Gand T-Series gravity guns
GenuineFuji Spray part
Fuji 9775 1000cc Gravity Cup for T75G Spray Guns
1000cc aluminum cup · Fewer refills · T75G
Regular price
$84.75 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The genuine Fuji 9775 1000cc aluminum gravity cup is a complete centre-mount cup assembly for the Fuji T75G and other T-Series gravity guns. It's the biggest T-Series gravity cup, for fewer refills on long runs, and comes with the lid, a fitted gasket and a check-valve pressure tube.
Key Features & Benefits
- 1000 mL capacity: The biggest T-Series gravity cup, for fewer refills on long runs.
- Check-valve pressure tube: Keeps coating from backing up into the pressure tube.
- Aluminum cup: A sturdy metal cup with an uncoated inside, for a wide range of coatings.
- Fitted gasket and lid: The lid seals with a fitted gasket to keep the cup under pressure.
- Genuine Fuji Spray part: For a correct fit and seal.
What's Included
- 1000 mL aluminum gravity cup
- Cup lid
- Gasket
- Pressure tube with check valve
Compatibility
Fits the Fuji T75G gravity gun and centre-mount T-Series gravity guns. It does not fit the G-XPC side-mount gun or bottom-feed guns. Other T-Series sizes: 9740 400 mL, 9860 600 mL nylon, 9760 600 mL aluminum.
Product Specifications
| Part number | 9775 |
| Capacity | 1000 mL |
| Material | Aluminum |
| Type | Centre-mount gravity cup assembly |
| Includes | 1000 mL aluminum gravity cup, cup lid, gasket and pressure tube with check valve |
| Lid seal | Fitted gasket |
| Fits | Fuji T75G and other centre-mount T-Series gravity guns |
| Brand | Fuji Spray, Toronto, Canada |
Cleaning and Care
- Strain every fill. Strain the coating into the cup so debris doesn't reach the nozzle.
- Empty and wipe. After spraying, pour out what's left and wipe the cup with a cleaner-soaked rag.
- Flush the gun. Half-fill the cup with cleaner, swirl it, then open the fluid knob and trigger to flush it through.
- Clean the lid. Clean the inside and outside of the cup and lid.
- Check the tube. Look for dried coating on the pressure tube and replace it if it's blocked.
- Check the seal. Replace the gasket or diaphragm when it's worn or swollen so the cup holds pressure.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock cup lids and gaskets, 5100 air caps and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Made for Fuji T-Series gravity guns.
Fits the centre-mount T75G gravity gun, the gravity option on Fuji Mini-Mite, Q Platinum and D6 systems.
Need a different cup?
Centre-mount T-Series cups don't fit side-mount or bottom-feed guns.
- G-XPC gun: the 9850 400cc or 9870 600 mL side-mount cup.
- Bottom-feed T70 or M-Model: the 2095 quart cup.
- Other Fuji guns: send us a photo and we'll find the right cup.
Compare
Which T-Series cup?
All four screw onto the T75G and other centre-mount T-Series gravity guns. Pick by capacity and material.
| 9775 1000 mLThis cup | 9740 400 mL | 9860 600 mL nylon | 9760 600 mL aluminum | |
|---|---|---|---|---|
| Capacity | 1000 mL | 400 mL | 600 mL | 600 mL |
| Material | Aluminum | Aluminum | Nylon | Aluminum |
| Lid seal | Gasket | 9050 gasket | Screw-in lid, no gasket | Gasket |
| Pressure tube | With check valve | #2024L | With check valve | Included |
| Best for | Long runs with fewer refills | Small parts and lighter handling | Everyday cabinet work, light to hold | A metal cup in the 600 mL size |
| Price | $84.75 | $70.95 | $74.15 | $74.35 |
Capacities and parts as listed by Fuji Spray. Prices update from the store.
Why this cup
What the 9775 does well.
1000 mL capacityThe biggest T-Series gravity cup, for fewer refills on long runs.
Check-valve pressure tubeKeeps coating from backing up into the pressure tube.
Aluminum cupA sturdy metal cup with an uncoated inside, for a wide range of coatings.
What's included
Ready to screw on.
In the 9775 assembly
- 1000 mL aluminum gravity cup
- Cup lid
- Gasket
- Pressure tube with check valve
Specifications
9775 cup specs.
| Part number | 9775 |
|---|---|
| Capacity | 1000 mL |
| Material | Aluminum |
| Type | Centre-mount gravity cup assembly |
| Includes | 1000 mL aluminum gravity cup, cup lid, gasket and pressure tube with check valve |
| Lid seal | Fitted gasket |
| Fits | Fuji T75G and other centre-mount T-Series gravity guns |
| Brand | Fuji Spray, Toronto, Canada |
Care
Keep the cup clean and sealing.
- 1Strain every fillStrain the coating into the cup so debris doesn't reach the nozzle.
- 2Empty and wipeAfter spraying, pour out what's left and wipe the cup with a cleaner-soaked rag.
- 3Flush the gunHalf-fill the cup with cleaner, swirl it, then open the fluid knob and trigger to flush it through.
- 4Clean the lidClean the inside and outside of the cup and lid.
- 5Check the tubeLook for dried coating on the pressure tube and replace it if it's blocked.
- 6Check the sealReplace the gasket or diaphragm when it's worn or swollen so the cup holds pressure.
Goes with it
More for your T75G.
Other cup sizes, seals, caps and a rebuild kit, all in stock at our Mississauga spray centre.
9860 600 mL nylon cup
Spare gravity cup for the T75G.
$74.159760 600 mL aluminum cup
Aluminum T-Series gravity cup.
$74.359740 400 mL cup
Smaller, lighter T-Series gravity cup.
$70.95Gravity cup lids and gaskets
Lids, 600 mL and 1000 mL gaskets and fittings.
$6.655100 air caps
0.8 to 2.5 mm caps for T70 and T75G guns.
$99.955262 rebuild kit
Seals and parts for T70 and T75 guns.
$58.255330 gun holder stand
Holds a gravity gun upright to fill and clean.
$21.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
9775 cup questions, answered.
Which gun does the 9775 cup fit?
The Fuji T75G gravity gun and other centre-mount T-Series gravity guns, including the T75G option on Mini-Mite, Q Platinum and D6 systems.
What's included?
1000 mL aluminum gravity cup, cup lid, gasket and pressure tube with check valve.
Is it too heavy for the T75G?
A full 1000 mL cup adds weight at the top of the gun. It's best for long runs like cabinet boxes and trim, where fewer refills matter more than a light gun. For detail work, the 600 mL or 400 mL cup is easier to handle.
Which gasket does it use?
Spare 600 mL and 1000 mL gravity cup gaskets are sold with our gravity cup lids and gaskets.
Will it fit the G-XPC or T70?
No. The G-XPC takes the 9850 or 9870 side-mount cup, and the T70 is a bottom-feed gun that takes the 2095 quart cup.
How do I clean it?
Empty it, wipe it with a cleaner-soaked rag, flush the gun with cleaner, and check the pressure tube and lid seal. Never soak the whole gun in solvent.
Keep your T75G ready to spray.
Not sure which cup fits your gun? Send us a photo and we'll check.
