Fuji Spray · Side-mount gravity gun
Any angle.
Even up.
The Fuji G-XPC has a 400 mL gravity cup mounted on the side, so it swivels to spray at any angle, even upward. It's the gun to reach for on cabinet interiors, drawers and small parts. The 1.4 mm air cap comes installed.
400 mLside-mounted cup
1.4 mmair cap installed
5air cap sizes
Any anglewith Swivel N' Set

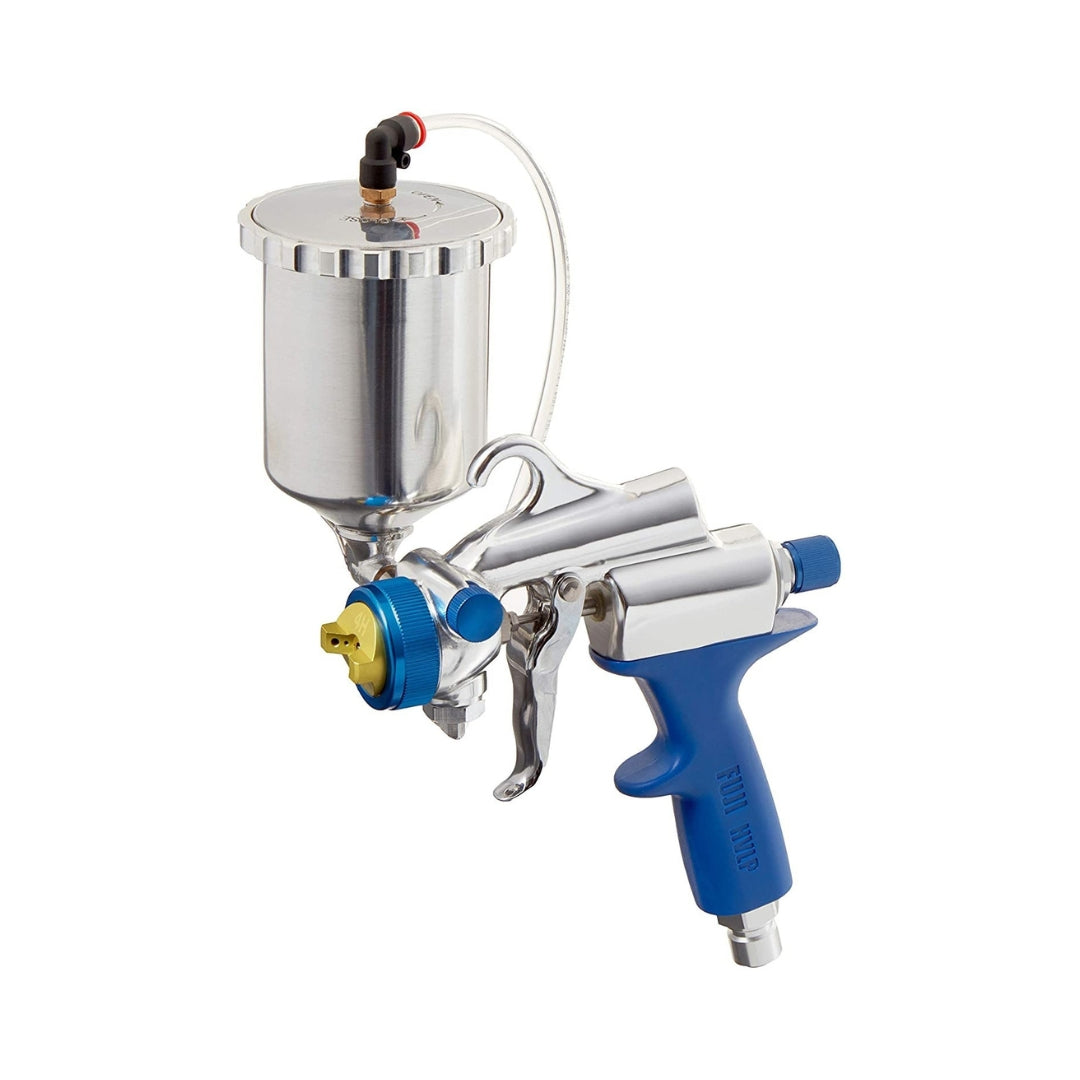

Fuji G-XPC HVLP Turbine Spray Gun, Side-Mount Gravity Feed (9600-G)
400 mL side-mount cup · Sprays at any angle · 1.4 mm cap
Regular price
$509.00 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji G-XPC (9600-G) is an HVLP turbine spray gun with a 400 mL side-mounted gravity cup. Fuji's Swivel N' Set cup lets you spray at any angle, even upward, which makes it a favourite for cabinet interiors, drawers, furniture and small parts. A 1.4 mm air cap set comes installed.
Key Features & Benefits
- Swivel N' Set cup: The side-mounted cup turns so you can spray at any angle, even upward.
- A clear view: With the cup off to the side, you can see past it into cabinet interiors, drawers and small parts.
- 1.4 mm air cap installed: Ready for a fine finish with lacquer, polyurethane, latex and other waterborne coatings.
- Side-mounted fan control: Adjust the fan size as you work.
- Stay Cool Handle: A nylon-coated handle that stays cool and comfortable.
- Stainless nozzle and needle: Made for both waterborne and solvent-based coatings.
Applications & Recommended Uses
The G-XPC's side-mounted cup swivels, so you can spray at any angle, even upward, and see past the cup into tight spaces.
- Cabinet interiors and drawers
- Furniture and small parts
- Angled and overhead work
- Lacquer, polyurethane, latex and other waterborne coatings with the 1.4 mm cap it comes with
What's Included
- Fuji G-XPC spray gun (9600-G)
- 400 mL side-mounted gravity cup
- 1.4 mm air cap set, installed
Compatibility
The G-XPC is a gun option on Fuji Mini-Mite Platinum, Q Platinum and D6 systems. It takes 8050 air cap sets, 9850 and 9870 cups and the 9610 rebuild kit. T70 and T75G air caps don't fit.
Product Specifications
| Model | 9600-G, G-XPC |
| Type | HVLP turbine spray gun, side-mounted gravity feed |
| Cup | 400 mL (400 cc) side-mounted gravity cup |
| Air cap installed | 1.4 mm (8050-4) |
| Air cap sizes | 0.7, 1.0, 1.4, 1.8 and 2.2 mm (8050 series) |
| Fan control | Side-mounted |
| Nozzle and needle | Stainless steel, for waterborne and solvent-based coatings |
| Optional cups | 3 oz, 400 cc and 600 cc nylon |
| Rebuild kit | 9610 |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
How to Set Up and Use
- Strain and check. Strain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- Set the cup angle. Swivel the cup so it stays upright for the way you'll hold the gun.
- Connect. Attach the turbine hose to the gun.
- Test on cardboard. Set the fan size and fluid flow until the pattern is even.
- Spray. Hold the gun square to the surface and overlap each pass by about half.
- Clean right away. Empty the cup, flush it through with the right cleaner and check the gasket and pressure tube.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 8050 air caps, G-XPC cups and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Compare
Which Fuji gun is right for you?
All five are HVLP turbine guns. Air caps and rebuild parts are made for one gun family, so parts for the T70 and T75G, the G-XPC and the M-Model guns don't swap.
| G-XPCThis gun | T75G | T70 | 7001 | 7002G | |
|---|---|---|---|---|---|
| Feed | Gravity, side-mounted cup | Gravity, centre-mounted cup | Bottom feed | Bottom feed | Gravity, U-tube cup |
| Cup | 400 mL | 600 mL nylon | 1 qt (1000 mL), pressurized | 1 qt | 400 mL aluminum |
| Air cap | 1.4 mm installed | Your choice, 0.8 to 2.5 mm | Your choice, 0.8 to 2.5 mm | 1.3 mm installed | 1.3 mm installed |
| Other sizes | 8050 sets, 0.7 to 2.2 mm | 5100 sets | 5100 sets | 7020 sets, 0.8 to 2.0 mm | 7020 sets, 0.8 to 2.0 mm |
| Rebuild kit | 9610 | 5262 | 5262 | 2342 | 2342 |
| Comes on | Mini-Mite, Q Platinum and D6 systems | Mini-Mite, Q Platinum and D6 systems | Mini-Mite, Q Platinum and D6 systems | Semi-PRO 2 | Semi-PRO 2 Gravity |
| Best for | Tight spots, any angle | Cabinets, flat work and touch-ups | Bigger jobs, fewer refills | Hobby and occasional use | Hobby and occasional use |
| Price | $509 | $519 | $519 | $319 | $319 |
Cup sizes, air caps and system pairings from Fuji Spray. Prices update from the store.
Features
Made for tight spots.
Swivel N' Set cupThe side-mounted cup turns so you can spray at any angle, even upward.
A clear viewWith the cup off to the side, you can see past it into cabinet interiors, drawers and small parts.
1.4 mm air cap installedReady for a fine finish with lacquer, polyurethane, latex and other waterborne coatings.
Side-mounted fan controlAdjust the fan size as you work.
Stay Cool HandleA nylon-coated handle that stays cool and comfortable.
Stainless nozzle and needleMade for both waterborne and solvent-based coatings.
What's included
Ready to spray.
In the box
- Fuji G-XPC spray gun (9600-G)
- 400 mL side-mounted gravity cup
- 1.4 mm air cap set, installed
Worth adding
Worth having on hand
Specifications
G-XPC specs.
| Model | 9600-G, G-XPC |
|---|---|
| Type | HVLP turbine spray gun, side-mounted gravity feed |
| Cup | 400 mL (400 cc) side-mounted gravity cup |
| Air cap installed | 1.4 mm (8050-4) |
| Air cap sizes | 0.7, 1.0, 1.4, 1.8 and 2.2 mm (8050 series) |
| Fan control | Side-mounted |
| Nozzle and needle | Stainless steel, for waterborne and solvent-based coatings |
| Optional cups | 3 oz, 400 cc and 600 cc nylon |
| Rebuild kit | 9610 |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
From box to first coat.
- 1Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 2Set the cup angleSwivel the cup so it stays upright for the way you'll hold the gun.
- 3ConnectAttach the turbine hose to the gun.
- 4Test on cardboardSet the fan size and fluid flow until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Clean right awayEmpty the cup, flush it through with the right cleaner and check the gasket and pressure tube.
Customer reviews
From G-XPC owners.
“Great service, fast shipping”
Goes with it
More for your G-XPC.
Air caps, cups, gaskets and a rebuild kit, all genuine Fuji.
8050 air caps
Caps for the G-XPC gun.
$95.359850 400cc G-XPC cup
Replacement side-mount cup assembly.
$68.659870 600 mL G-XPC cup
Bigger nylon side-mount cup.
$101.859050 cup gaskets, 5-pack
Gaskets for 400cc gravity cups.
$26.052030 400cc cup parts kit
Gaskets and pressure tubes for 400cc gravity cups.
$47.359610 G-XPC rebuild kit
Rebuild kit for G-XPC and XPC guns.
$47.659080 mini-cup set
Three 8 oz cups for touch-ups. Fit any Fuji gun.
$75.55Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
G-XPC questions, answered.
What makes the G-XPC different?
Its cup is mounted on the side and swivels, so you can spray at any angle, even upward, and see past the cup into tight spaces.
What air cap does it come with?
A 1.4 mm set, for a fine finish with lacquer, polyurethane, latex and other waterborne coatings. Other sizes from 0.7 to 2.2 mm are sold as 8050 air cap sets.
Do T70 or T75G air caps fit the G-XPC?
No. The G-XPC takes 8050 sets only. The 5100 sets are for the T70 and T75G.
Can I get a bigger cup?
Yes. The 9870 600 mL nylon cup fits the G-XPC. The 9850 400 mL cup is the standard replacement.
Which turbines does the G-XPC work with?
Fuji offers the G-XPC on its Mini-Mite Platinum, Q Platinum and D6 systems. Have an older or different turbine? Ask us before you order.
How do I rebuild it?
The 9610 rebuild kit replaces the wear parts on G-XPC and XPC guns.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
