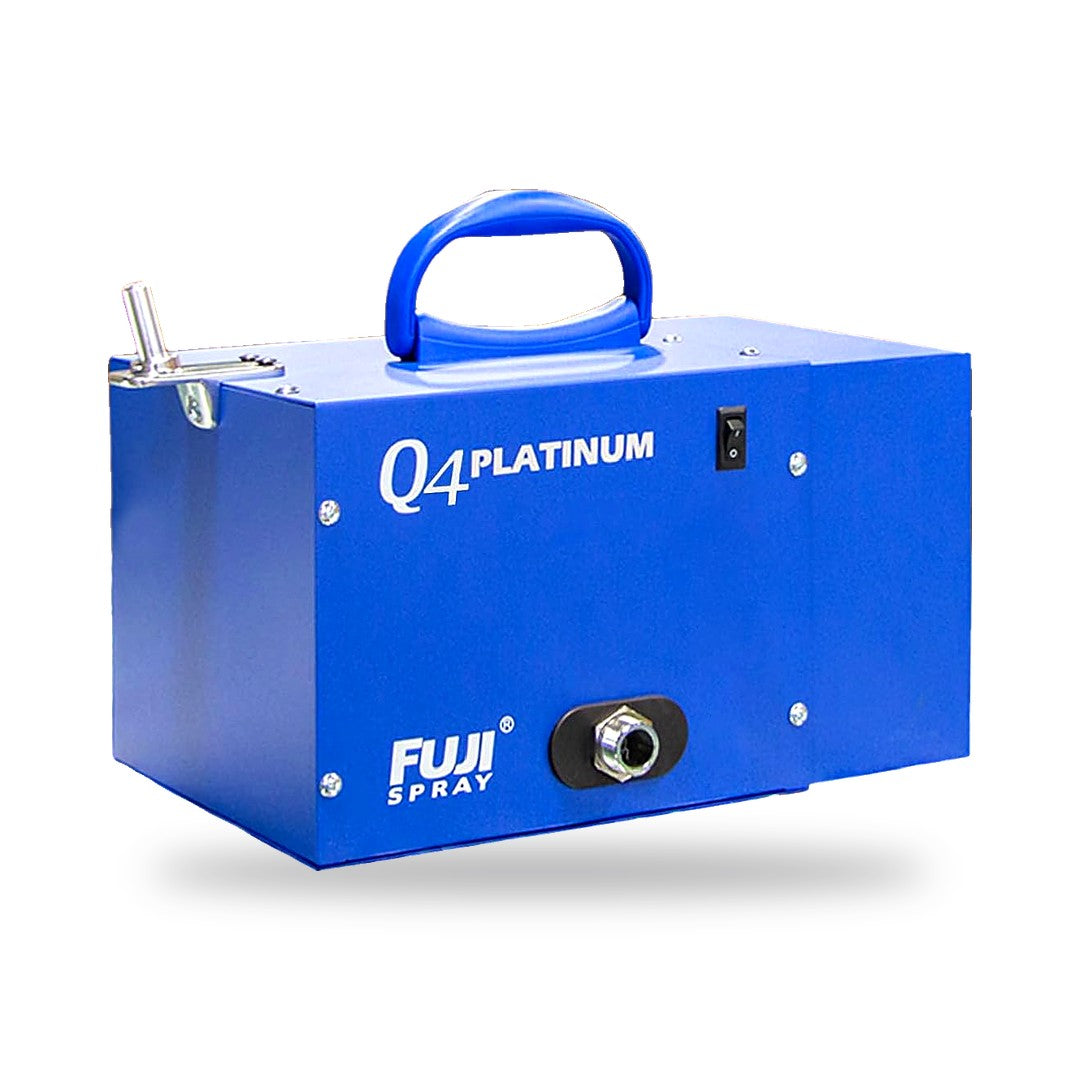

Q4
About 9 psi · 61 dBA at 15 ft
Fuji's quietest turbine. Lacquer, stain, polyurethane and most waterborne cabinet coatings.
$1,359#1201C
Fuji Spray · Turbine only
The quiet one,
on its own.
The Q4 and Q5 Platinum turbines from Fuji's quiet Q series, sold without a gun or hose. Replace a worn turbine, step up from fewer stages, or set up a second station with the Fuji gun and hose you already own.
61 dBAQ4 at 15 ft, per Fuji
9.5 psiQ5, 5-stage
5029single filter
24 moFuji limited warranty
Fuji Q Platinum HVLP Turbine Only, Q4 or Q5
Quiet 4 or 5-stage turbine · Gun and hose not included
Regular price
$1,359.00 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji Q4 and Q5 Platinum turbines from Fuji's quiet Q series, sold on their own without a gun or hose. Use one to replace a worn turbine, step up from a 2 or 3-stage model, or set up a second spray station with the Fuji gun and hose you already own. The Q4 is a 4-stage turbine rated 61 dBA at 15 ft, Fuji's quietest. The Q5 is a 5-stage turbine with about 9.5 psi and a variable speed dial.
Key Features & Benefits
- Patented noise reduction: An all-metal case with computer-designed air paths. Fuji rates the Q4 at 61 dBA and the Q5 at 63 dBA from 15 ft, against 79 dBA for a standard turbine.
- Heat Dissipation Chamber: Heat is channelled to the back of the case and out through 60 holes, for a cooler-running motor and a longer life.
- Variable speed dial (Q5): Turn the speed down for thin coatings and fine work, and up for thicker paints.
- Quick-change filter: A single 5029 filter that's easy to check and swap.
- Sprays almost anything: Stain, shellac, polyurethane, lacquer, oil and water-based paints and primers.
- Built for long days: For cabinet shops and refinishers working near neighbours, co-workers or homeowners.
What's Included
- Q4 or Q5 Platinum turbine
- Gun and hose are not included
Compatibility
Fuji pairs the Q series with its T75G, T70 and G-XPC guns. Connect with a 7049 or 9049 Hi-Flex hose or the 7073 Super Duty hose. Stepping up from a 2 or 3-stage turbine? Add the 7055 heat hose.
Product Specifications
| Part numbers | 1201C (Q4), 1202C (Q5) |
| Turbine | Q4: 4-stage, about 9 psi. Q5: 5-stage, about 9.5 psi |
| Noise | Q4: 61 dBA at 15 ft, 59 dBA at 20 ft. Q5: 63 dBA at 15 ft, 60 dBA at 20 ft |
| Speed control | Q5: variable speed dial |
| Power | 110–120 V, 60 Hz. Q4: 13 A. Q5: 14.5 A |
| Size | 14.87 × 11.5 × 9 in |
| Weight | Q4: 22.73 lb. Q5: 24.06 lb |
| Filter | Single 5029, quick-change |
| Hose connection | Quick-connect, for Fuji Hi-Flex and Super Duty turbine hoses |
| Included | Turbine only. Gun and hose sold separately |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
How to Set Up and Use
- Set it up. Place the turbine on a flat, clean surface away from your spray area, with the 5029 filter in place.
- Connect the hose. Attach your hose to the turbine and your gun to the hose. On the Q5, start the speed dial low.
- Strain and check. Strain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- Test on cardboard. Set the fan and fluid flow until the pattern is even.
- Spray. Hold the gun square to the surface and overlap each pass by about half.
- Keep it breathing. Clean the gun right after spraying, and check the 5029 filter often. A clogged filter makes the turbine run hot.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 5029 filters, turbine hoses and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Canada Shipping
- Enjoy free shipping in Canada on orders over $249. Yukon, NWT, Nunavut not included.
Winter Shipping:
- From December to April, shipping outside of Ontario and Quebec is limited.
- Returns accepted within 35 days from the date of delivery.
- Custom tinted paints are classified as Final Sale items and are not eligible for return or store credit.
Will it fit?
Works with your Fuji gun and hose.
Fuji pairs the Q4 and Q5 with its T-Model and G-XPC guns. Connect with a quick-connect Fuji turbine hose.
T75G gravity gun
T-Model gun with a 600 mL gravity cup.
$519T70 bottom-feed gun
T-Model gun with a 1 L bottom-feed cup.
$519G-XPC gun, 9600-G
Side-mount 400 mL gravity cup.
$509Not included
This is the turbine only. You'll need:
- A hose: the 7049 or 9049 25 ft Hi-Flex, or the 7073 30 ft Super Duty.
- A Fuji turbine gun, like one of these.
- Stepping up from a 2 or 3-stage turbine? Add a 7055 heat hose.
Pick your turbine
Q4 or Q5?
Both use the same quiet all-metal Q case and Heat Dissipation Chamber. The Q5 adds a stage, a little more pressure and a speed dial.

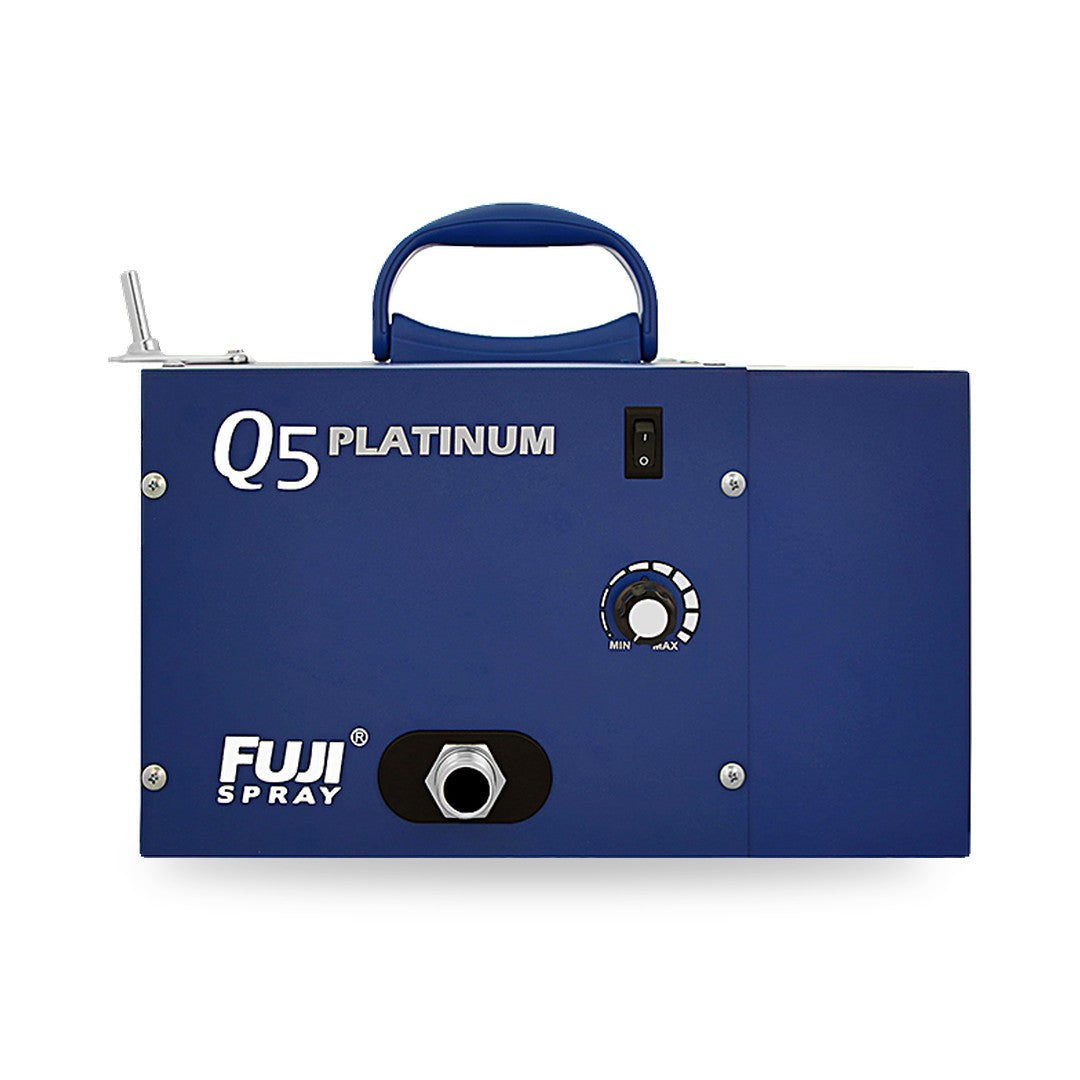

Q5
About 9.5 psi · 63 dBA at 15 ft
More pressure for thicker coatings, plus a variable speed dial to dial atomization up or down.
$1,359#1202C
Not sure? Tell us what you spray.
For lacquer, stain and most cabinet work the Q4 is plenty. Pick the Q5 if you spray thicker paints and primers often, or want to turn the speed down for fine work.
Compare
Which Fuji turbine?
More stages build more pressure, so thicker coatings atomize with less thinning. Here's how the turbines we sell on their own compare.
| Q4 PlatinumThis turbine | Q5 PlatinumThis turbine | Semi-PRO 2 / Hobby-PRO 2 | D6 | |
|---|---|---|---|---|
| Stages | 4-stage | 5-stage | 2-stage | 6-stage |
| Pressure | About 9 psi | About 9.5 psi | About 5 psi | Up to 11.5 psi |
| Noise at 15 ft | 61 dBA | 63 dBA | Not listed | Not listed |
| Controls | On/off | Variable speed dial | On/off | Smart Select panel, 6 pre-set pressures |
| Filter | Single 5029 | Single 5029 | Dual 4009-2 | Foam + HEPA |
| Weight | 22.73 lb | 24.06 lb | 12.35 lb | 25.57 lb |
| Size | 14.87 × 11.5 × 9 in | 14.87 × 11.5 × 9 in | 11 × 8.6 × 8.1 in | 18 × 15 × 11 in |
| Guns Fuji pairs it with | T70, T75G or G-XPC | T70, T75G or G-XPC | 7001, 7002G or 7003 M-Model | T70, T75G or G-XPC |
| Price | $1,359 | $1,699 | $489 | $2,279 |
Specs as listed by Fuji Spray. Turbine only: gun and hose are sold separately.
Features
Quiet by design.
Patented noise reductionAn all-metal case with computer-designed air paths. Fuji rates the Q4 at 61 dBA and the Q5 at 63 dBA from 15 ft, against 79 dBA for a standard turbine.
Heat Dissipation ChamberHeat is channelled to the back of the case and out through 60 holes, for a cooler-running motor and a longer life.
Variable speed dial (Q5)Turn the speed down for thin coatings and fine work, and up for thicker paints.
Quick-change filterA single 5029 filter that's easy to check and swap.
Sprays almost anythingStain, shellac, polyurethane, lacquer, oil and water-based paints and primers.
Built for long daysFor cabinet shops and refinishers working near neighbours, co-workers or homeowners.
What's included
Turbine only.
In the box
- Q4 or Q5 Platinum turbine
- Gun and hose are not included
Worth adding
To start spraying
Specifications
Q Platinum turbine specs.
| Part numbers | 1201C (Q4), 1202C (Q5) |
|---|---|
| Turbine | Q4: 4-stage, about 9 psi. Q5: 5-stage, about 9.5 psi |
| Noise | Q4: 61 dBA at 15 ft, 59 dBA at 20 ft. Q5: 63 dBA at 15 ft, 60 dBA at 20 ft |
| Speed control | Q5: variable speed dial |
| Power | 110–120 V, 60 Hz. Q4: 13 A. Q5: 14.5 A |
| Size | 14.87 × 11.5 × 9 in |
| Weight | Q4: 22.73 lb. Q5: 24.06 lb |
| Filter | Single 5029, quick-change |
| Hose connection | Quick-connect, for Fuji Hi-Flex and Super Duty turbine hoses |
| Included | Turbine only. Gun and hose sold separately |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
Hook it up and spray.
- 1Set it upPlace the turbine on a flat, clean surface away from your spray area, with the 5029 filter in place.
- 2Connect the hoseAttach your hose to the turbine and your gun to the hose. On the Q5, start the speed dial low.
- 3Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 4Test on cardboardSet the fan and fluid flow until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Keep it breathingClean the gun right after spraying, and check the 5029 filter often. A clogged filter makes the turbine run hot.
Goes with it
Everything else you need.
Hoses, guns and filters, all in stock at our Mississauga spray centre.
7049 Hi-Flex 25 ft hose
Blue. For Mini-Mite and Q series turbines.
$99.959049 Hi-Flex 25 ft hose
Black. For Mini-Mite and Q series turbines.
$99.957073 Super Duty 30 ft hose
Fits all Fuji turbines. 3 ft of heat-resistant hose.
$129.957055 heat hose, 3 ft
Recommended when stepping up to a 4 or 5-stage turbine.
$48.75T75G gravity gun
T-Model gun with a 600 mL gravity cup.
$519T70 bottom-feed gun
T-Model gun with a 1 L bottom-feed cup.
$519G-XPC gun, 9600-G
Side-mount 400 mL gravity cup.
$5095029 turbine filter
Fits Q3, Q4 and Q5 Platinum turbines.
$11.75Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
Q Platinum turbine questions, answered.
Does it come with a gun and hose?
Q4 or Q5: which should I choose?
The Q4 is Fuji's quietest turbine and handles lacquer, stain and most cabinet coatings. The Q5 adds a stage, about 9.5 psi and a variable speed dial for thicker paints and primers.
How quiet is it?
Fuji rates the Q4 at 61 dBA and the Q5 at 63 dBA from 15 ft. It puts a standard turbine at 79 dBA, and normal conversation at about 60 dBA.
Which guns work with it?
I'm upgrading from a 2 or 3-stage turbine. Do I need a new hose?
The 7055 heat hose is recommended when you step up to a 4 or 5-stage turbine, because the air runs hotter. Or switch to the 7073 Super Duty hose, which has 3 ft of heat-resistant hose built in.
Which filter does it use?
A single 5029 filter, the same on the Q4 and Q5. Check it often and replace it when it's dirty.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
Bring the quiet to your shop.
Not sure your gun and hose will fit? Tell us what you have and we'll check.
