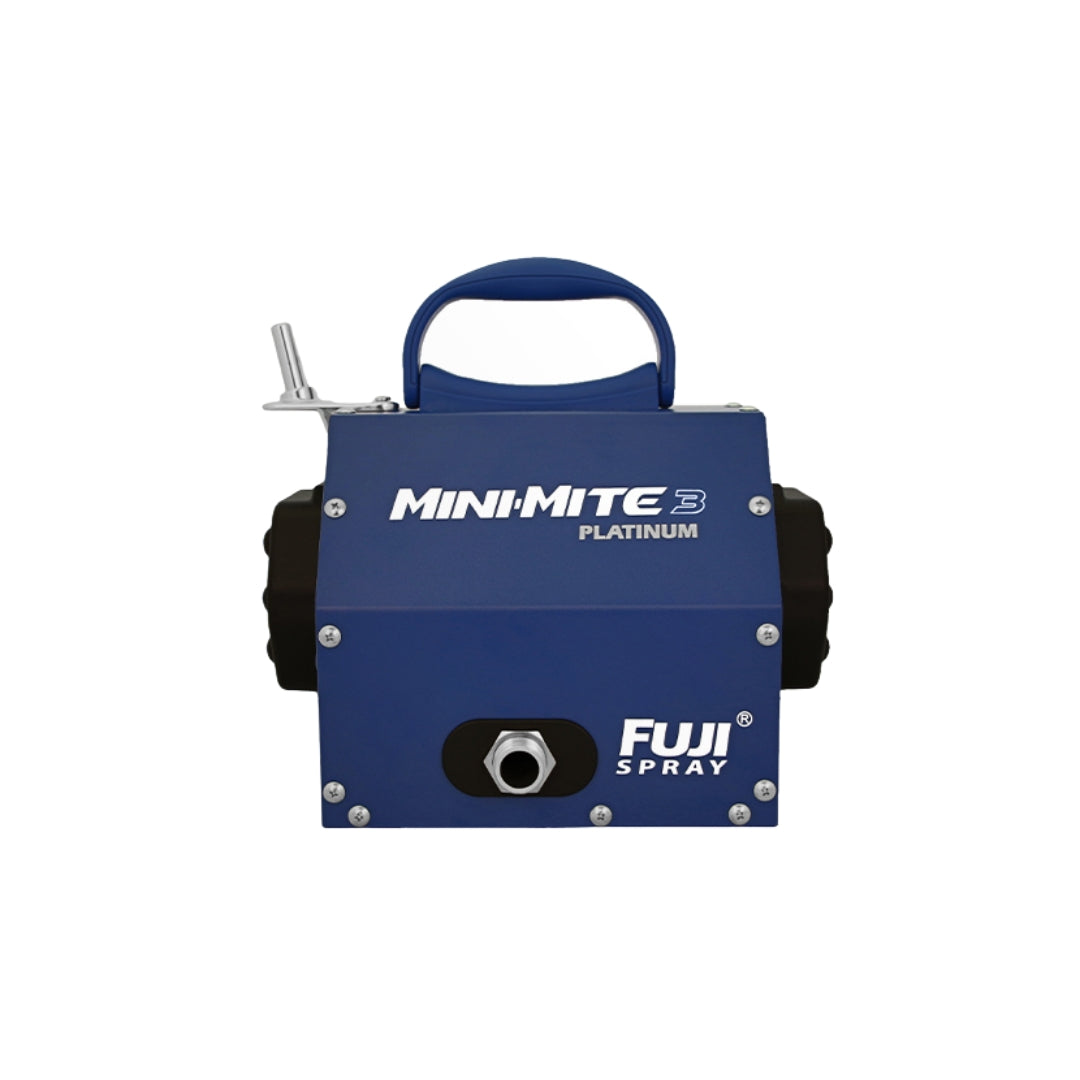

6.5psi
3-stage · 14.56 lb
Stains, lacquers, sealers and other thinner finishes.
$579#1207C
Fuji Spray · Turbine only
All the power.
None of the extras.
The Mini-Mite 3, 4 and 5 Platinum turbines, sold without a gun or hose. Replace a worn turbine, step up to more stages, or set up a second station with the Fuji gun and hose you already own. Every Mini-Mite weighs about 15 lb.
6.5–9.5psi, 3 to 5 stages
15 lbabout, per Fuji
7224-2dual filters
24 moFuji limited warranty
Fuji Mini-Mite Platinum HVLP Turbine Only, 3, 4 or 5-Stage
Portable 3, 4 or 5-stage turbine · Gun and hose not included
Regular price
$579.00 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji Mini-Mite 3, 4 and 5 Platinum turbines, sold on their own without a gun or hose. Use one to replace a worn turbine, step up to more stages, or set up a second spray station with the Fuji gun and hose you already own. Choose the 3-stage (about 6.5 psi), 4-stage (about 9 psi) or 5-stage (about 9.5 psi). All weigh about 15 lb.
Key Features & Benefits
- 3, 4 or 5 stages: About 6.5, 9 or 9.5 psi.
- About 15 lb: Light enough to carry to every job.
- Heat Dissipation Chamber: A cooler-running motor and a longer life.
- Sprays almost anything: Stain, shellac, polyurethane, lacquer, paints, primers and automotive coatings.
- 24-month Fuji limited warranty: For the original buyer.
What's Included
- Mini-Mite 3, 4 or 5 Platinum turbine
- Gun and hose are not included
Compatibility
Fuji pairs the Mini-Mite Platinum with its T75G, T70 and G-XPC guns. Connect the Mini-Mite 3 or 4 with a 7049 or 9049 Hi-Flex hose, and the Mini-Mite 5 with the 7088 Heavy Duty or 7073 Super Duty hose. Stepping up from a 2 or 3-stage turbine? Add the 7055 heat hose.
Product Specifications
| Part numbers | 1207C (Mini-Mite 3), 1208C (Mini-Mite 4), 1225C (Mini-Mite 5) |
| Turbine | Mini-Mite 3: 3-stage, about 6.5 psi. Mini-Mite 4: 4-stage, about 9 psi. Mini-Mite 5: 5-stage, about 9.5 psi |
| Power | 110–120 V, 60 Hz. Mini-Mite 3: 11.5 A. Mini-Mite 4: 13 A. Mini-Mite 5: 14.5 A |
| Size | 12 × 8.6 × 8.1 in |
| Weight | Mini-Mite 3: 14.56 lb. Mini-Mite 4: 15.00 lb. Mini-Mite 5: 15.22 lb |
| Filter | Dual 7224-2 |
| Cooling | Heat Dissipation Chamber |
| Hose connection | Quick-connect, for Fuji turbine hoses |
| Included | Turbine only. Gun and hose sold separately |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Hook it up and spray
- Set it up. Place the turbine on a flat, clean surface away from your spray area, with the 7224-2 filters in place.
- Connect the hose. Attach your hose to the turbine and your gun to the hose.
- Strain and check. Strain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- Test on cardboard. Set the fan and fluid flow until the pattern is even.
- Spray. Hold the gun square to the surface and overlap each pass by about half.
- Keep it breathing. Clean the gun right after spraying, and check the 7224-2 filters often. A clogged filter makes the turbine run hot.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 7224-2 filters, turbine hoses and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Works with your Fuji gun and hose.
Fuji pairs the Mini-Mite Platinum with its T-Model and G-XPC guns. Connect with a quick-connect Fuji turbine hose.
T75G gravity gun
T-Model gun with a 600 mL gravity cup.
$519T70 bottom-feed gun
T-Model gun with a 1 L bottom-feed cup.
$519G-XPC gun, 9600-G
Side-mount 400 mL gravity cup.
$509Not included
This is the turbine only. You'll need:
- A hose. Mini-Mite 3 or 4: the 7049 or 9049 25 ft Hi-Flex. Mini-Mite 5: the 7088 25 ft Heavy Duty or the 7073 30 ft Super Duty.
- A Fuji turbine gun, like one of these.
- Stepping up from a 2 or 3-stage turbine? Add a 7055 heat hose.
Pick your turbine
Mini-Mite 3, 4 or 5?
All three share the same portable 15 lb case and Heat Dissipation Chamber. More stages build more pressure.

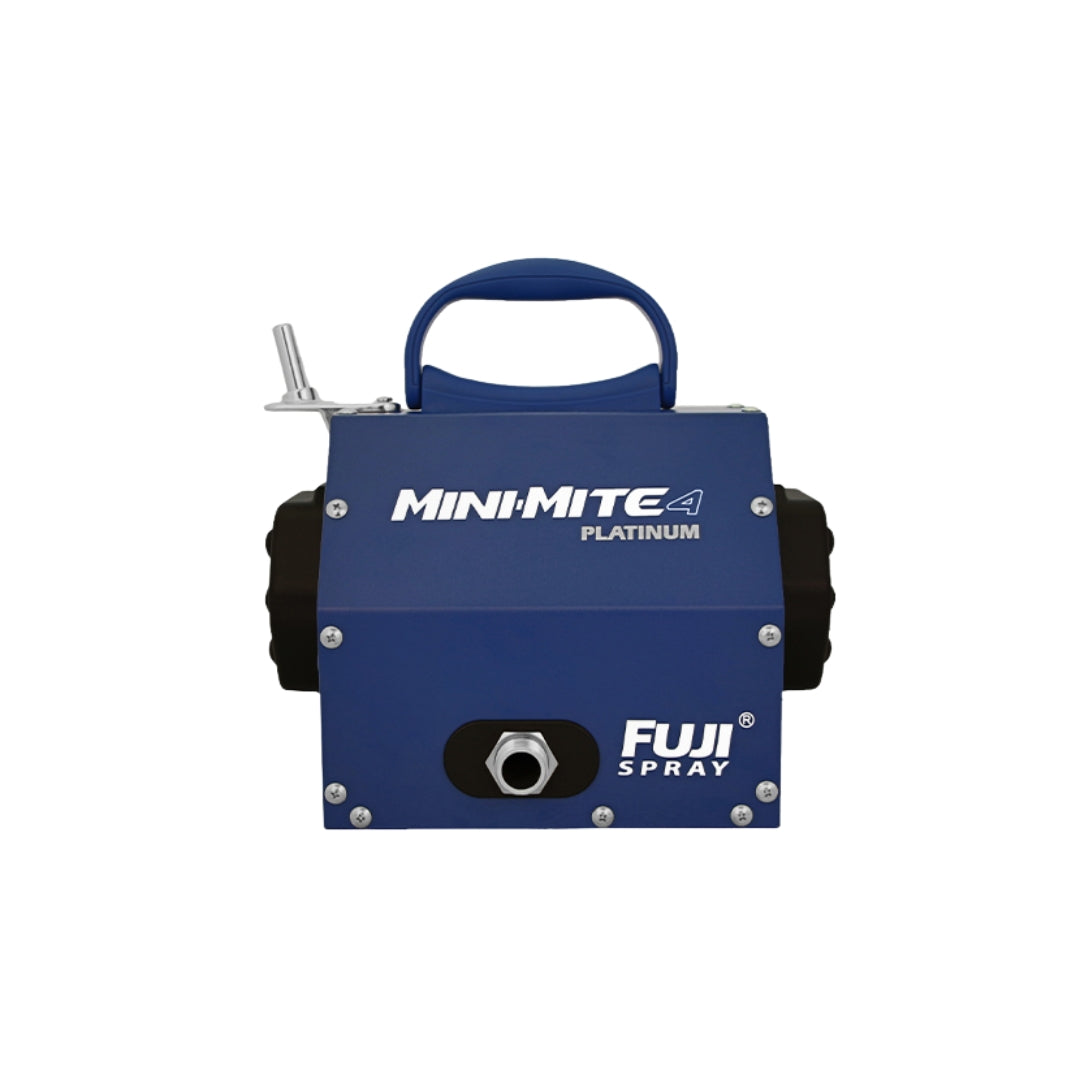

9psi
4-stage · 15.00 lb
The all-rounder for lacquer, polyurethane and most waterborne cabinet coatings.
$579#1208C

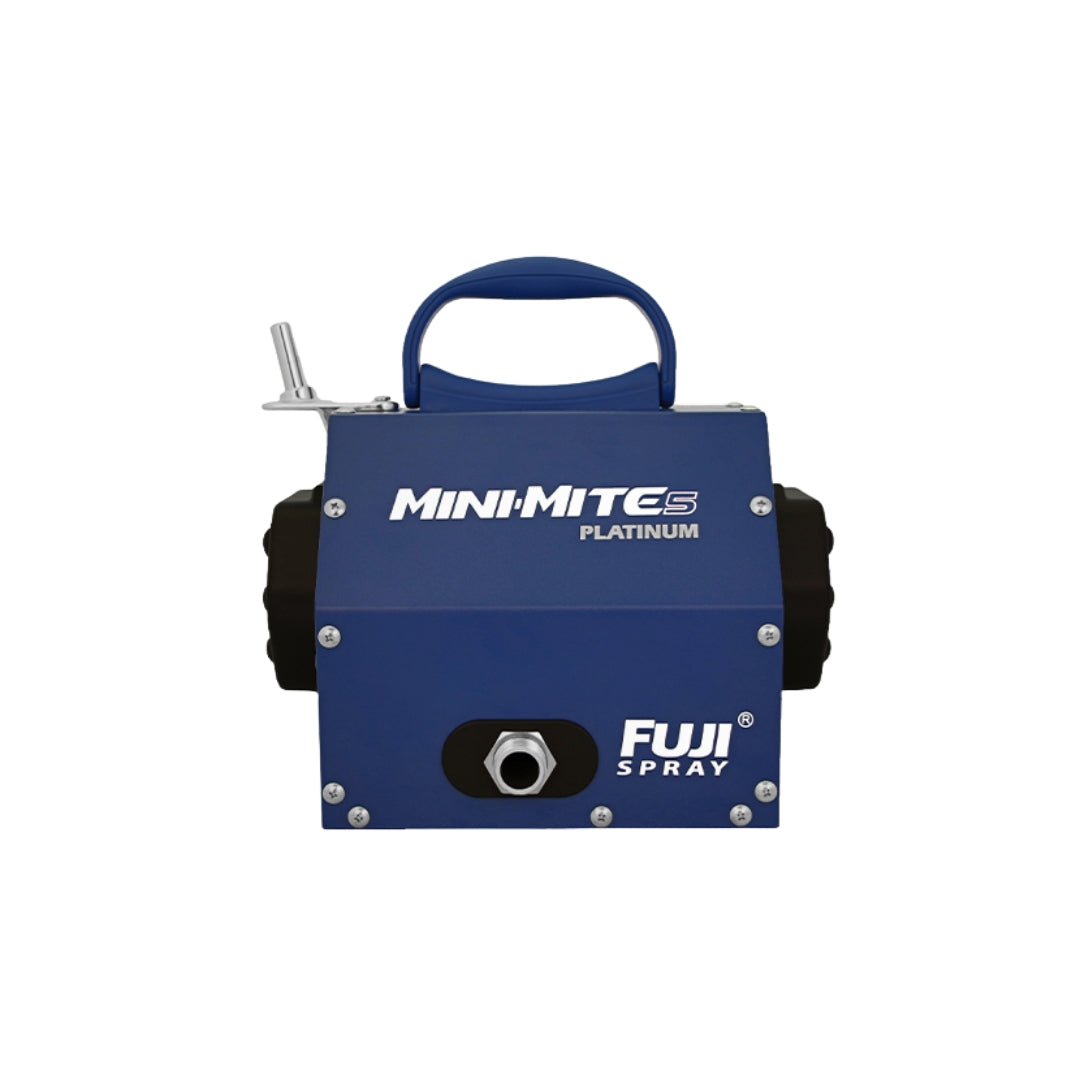

9.5psi
5-stage · 15.22 lb
The most pressure in the Mini-Mite line, for cabinet enamels and primers with less thinning.
$579#1225C
Not sure? Tell us what you spray.
For stains, lacquers and sealers, the Mini-Mite 3 is plenty. The Mini-Mite 4 handles most cabinet coatings. Choose the Mini-Mite 5 if you spray enamels and primers often.
Features
Built to carry.
About 15 lbLight enough to carry from kitchen to kitchen, up stairs and in and out of the truck.
Heat Dissipation ChamberHeat is channelled to the back of the case and out through 60 holes, for a cooler-running motor and a longer life.
Sprays almost anythingStain, shellac, polyurethane, lacquer, oil and water-based paints and primers, and automotive coatings.
What's included
Turbine only.
In the box
- Mini-Mite 3, 4 or 5 Platinum turbine
- Gun and hose are not included
Specifications
Mini-Mite turbine specs.
| Part numbers | 1207C (Mini-Mite 3), 1208C (Mini-Mite 4), 1225C (Mini-Mite 5) |
|---|---|
| Turbine | Mini-Mite 3: 3-stage, about 6.5 psi. Mini-Mite 4: 4-stage, about 9 psi. Mini-Mite 5: 5-stage, about 9.5 psi |
| Power | 110–120 V, 60 Hz. Mini-Mite 3: 11.5 A. Mini-Mite 4: 13 A. Mini-Mite 5: 14.5 A |
| Size | 12 × 8.6 × 8.1 in |
| Weight | Mini-Mite 3: 14.56 lb. Mini-Mite 4: 15.00 lb. Mini-Mite 5: 15.22 lb |
| Filter | Dual 7224-2 |
| Cooling | Heat Dissipation Chamber |
| Hose connection | Quick-connect, for Fuji turbine hoses |
| Included | Turbine only. Gun and hose sold separately |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
Hook it up and spray.
- 1Set it upPlace the turbine on a flat, clean surface away from your spray area, with the 7224-2 filters in place.
- 2Connect the hoseAttach your hose to the turbine and your gun to the hose.
- 3Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 4Test on cardboardSet the fan and fluid flow until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Keep it breathingClean the gun right after spraying, and check the 7224-2 filters often. A clogged filter makes the turbine run hot.
Goes with it
Everything else you need.
Hoses, guns and filters, all genuine Fuji.
7049 Hi-Flex 25 ft hose
Blue. For 2, 3 and 4-stage turbines like the Q4.
$99.957088 Heavy Duty 25 ft hose
The hose that ships with the Q5 Platinum.
$105.957073 Super Duty 30 ft hose
Fits all Fuji turbines. 3 ft of heat-resistant hose.
$129.957055 heat hose, 3 ft
Recommended when stepping up to a 4 or 5-stage turbine.
$48.75T75G gravity gun
T-Model gun with a 600 mL gravity cup.
$519T70 bottom-feed gun
T-Model gun with a 1 L bottom-feed cup.
$519G-XPC gun, 9600-G
Side-mount 400 mL gravity cup.
$5097224-2 turbine filters
Fits Mini-Mite Platinum turbines. 2-pack.
$11.85Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
Mini-Mite turbine questions, answered.
Does it come with a gun and hose?
No. This is the turbine only. Use the Fuji gun and hose you already have, or add a hose and a T75G, T70 or G-XPC gun. Starting from scratch? The complete Mini-Mite 3, Mini-Mite 4 and Mini-Mite 5 systems include both.
Mini-Mite 3, 4 or 5: which should I choose?
The Mini-Mite 3 is made for stains, lacquers, sealers and other thinner finishes. The Mini-Mite 4 handles lacquer, polyurethane and most waterborne cabinet coatings. The Mini-Mite 5 has the most pressure, about 9.5 psi, for cabinet enamels and primers with less thinning.
Which hose do I need?
For the Mini-Mite 3 or 4, a 7049 or 9049 Hi-Flex hose. For the Mini-Mite 5, the 7088 Heavy Duty or 7073 Super Duty hose.
I'm upgrading from a 2 or 3-stage turbine. Do I need a new hose?
The 7055 heat hose is recommended when you step up to a 4 or 5-stage turbine, because the air runs hotter. Or switch to the 7073 Super Duty hose, which has 3 ft of heat-resistant hose built in.
Which filter does it use?
Dual 7224-2 filters, the same on all three. Check them often and replace them when they're dirty.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
Take the power to the job.
Not sure your gun and hose will fit? Tell us what you have and we'll check.
