Best for most cabinet work
T75G gun
- Feed
- Gravity
- Cup
- 600 mL nylon
- Air cap
- 1.3 mm
- Model
- 2895-T75G
Paint feeds down from the top cup, so you can spray to the last drop and tilt freely on doors and face frames.
$2,199
Fuji Spray · Q Platinum series
Five-stage power.
Shop-quiet sound.

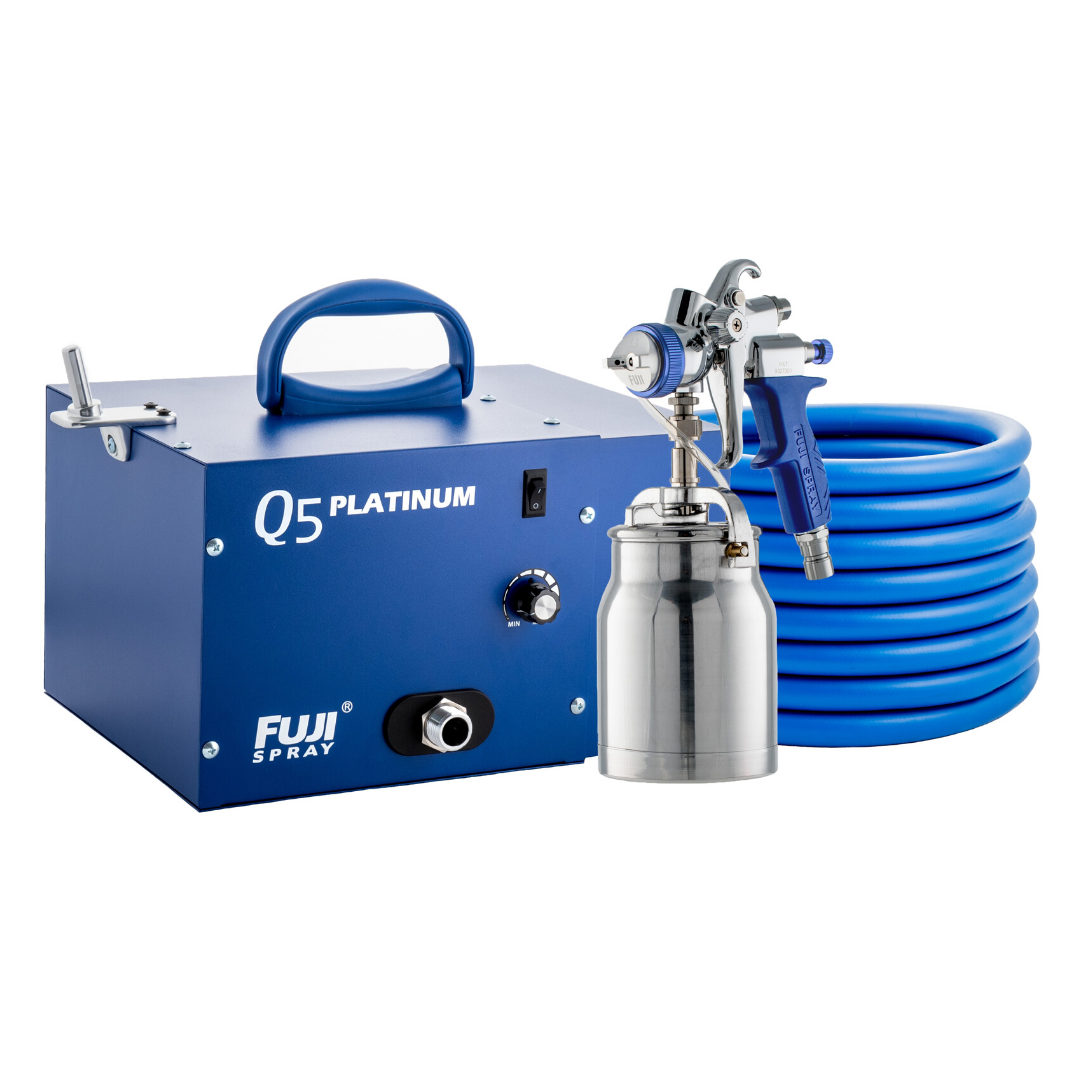

The Fuji Q5 Platinum is a 5-stage HVLP turbine system for cabinets, doors, furniture and millwork. It builds about 9.5 psi to atomize thicker coatings, and Fuji's noise-reduction case keeps it at 63 dBA from 15 ft, so it can run all day in a shop or an occupied home.
9.5 psifrom a 5-stage turbine
63 dBAat 15 ft, per Fuji
3 gunsT70, T75G or G-XPC
24 moFuji limited warranty
Modèle de système de pulvérisation de peinture HVLP Fuji Q5 PLATINUMMC
Quiet 5-stage turbine · 9.5 psi · 63 dBA at 15 ft
Prix habituel
$2,199.00 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji Q5 Platinum is a quiet 5-stage HVLP spray system for fine finishing. Its turbine builds about 9.5 psi, enough to atomize thicker coatings such as cabinet enamels, primers and polyurethanes, while Fuji's noise-reduction case keeps it at 63 dBA from 15 ft. It's made for cabinet shops, furniture refinishers, finish carpenters and serious DIYers who spray often and want a smooth, controlled finish with very little overspray. Choose the T75G gravity gun, the T70 bottom-feed gun or the G-XPC side-mount gun.
Key Features & Benefits
- 5-stage turbine, about 9.5 psi: more pressure than 3- and 4-stage systems, so heavier coatings atomize with less thinning.
- Quiet Q Platinum case: 63 dBA at 15 ft and 60 dBA at 20 ft, so it can run all day in a shop or an occupied home.
- Variable speed control dial: turn the pressure down for thin stains and up for thicker coatings, and cut bounce-back.
- Heat Dissipation Chamber: moves heat out of the turbine for cooler running and longer motor life.
- Non-bleed gun with stainless steel fluid passages and Fuji's side-mounted fan pattern control.
- 5 for 5 bonus kit with new systems: whip hose, 19-piece cleaning kit, extra filters, wet film gauge and booklet.
- 24-month Fuji limited warranty for the original buyer.
Applications & Recommended Uses
Use the Q5 Platinum on kitchen cabinets, vanities, interior doors, trim, mouldings, millwork and furniture. It sprays waterborne and solvent-based lacquers, stains, sanding sealers, varnishes, polyurethanes, cabinet enamels and primers. For walls, ceilings and exteriors, an airless paint sprayer is faster. Need a smaller, lighter turbine to carry between jobs? See the Mini-Mite 5 Platinum, which shares the Q5's 5-stage, 9.5 psi motor.
Product Specifications
| Model numbers | 2895-T75G, 3005-T70, GXPC-2895 |
| Turbine | 5-stage, about 9.5 psi |
| Noise | 63 dBA at 15 ft, 60 dBA at 20 ft |
| Power | 110–120 V, 60 Hz, 14.5 A |
| Turbine size and weight | 14.87 × 11.5 × 9 in, 24.06 lb |
| Filter | Single #5029 |
| Hose | 25 ft 7088 Heavy Duty with quick-connect and air control valve |
| Cup by gun | T75G: 600 mL nylon gravity. T70: 1 L aluminum bottom-feed. G-XPC: 400 mL aluminum side-mount gravity |
| Air cap | 1.3 mm (T75G, T70), 1.4 mm (G-XPC) |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
How to Use
- Set the turbine on a flat, clean surface away from overspray, with the filter in place.
- Connect the hose to the turbine with the quick-connect and attach the gun.
- Strain the coating, fill the cup and check viscosity with the #4 Ford cup. Thin only as the coating maker directs.
- Test on cardboard, starting with the speed dial low. Adjust the fan pattern and fluid flow until the spray is even.
- Spray with the gun square to the surface, overlapping each pass by about half.
- Clean the gun right away and check the turbine filter often.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock Fuji 5029 filters, 5100 air caps and other parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Step 1 · Pick your gun
Same turbine. Three ways to spray.
Every Q5 Platinum comes with one non-bleed Fuji gun. Pick the one that suits your work, and we'll select it in the buy box for you. Want to save? Open-box (A+) units are never used, with the full warranty and the bonus kit.
Best for bigger jobs

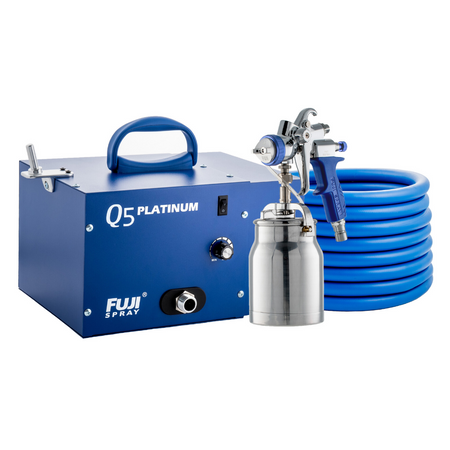

T70 gun
- Feed
- Bottom (siphon)
- Cup
- 1 L (1 qt) aluminum
- Air cap
- 1.3 mm
- Model
- 3005-T70
The largest cup of the three, so fewer refills on long runs like a set of cabinet boxes or a run of trim.
$2,199
Best for tight spots

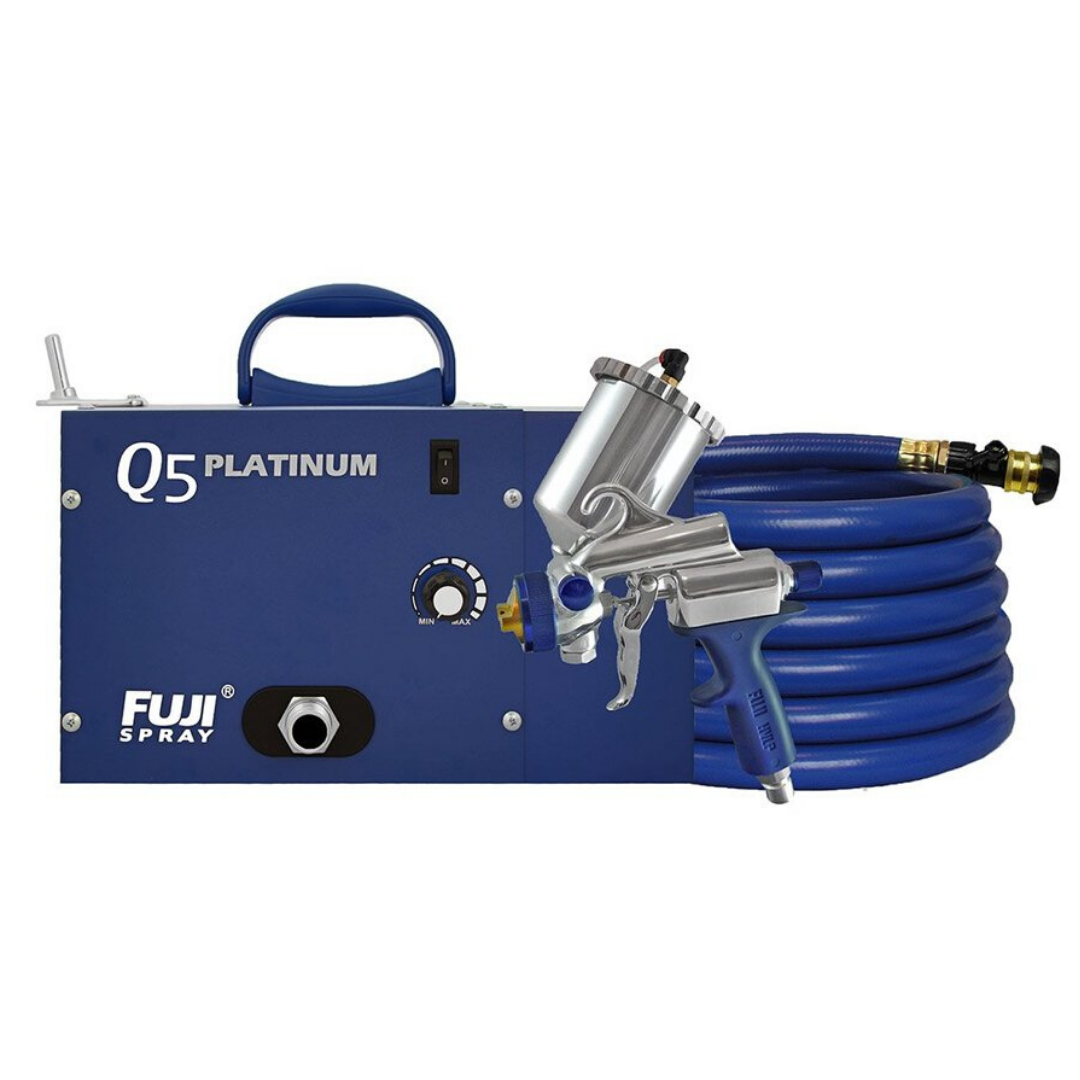

G-XPC gun
- Feed
- Side-mount gravity
- Cup
- 400 mL aluminum
- Air cap
- 1.4 mm
- Model
- GXPC-2895
The cup sits on the side of the gun, so you can see past it and get into cabinet interiors, drawers and small parts.
$2,189
Noise reduction
Quiet enough to talk over.
A standard turbine sounds like a loud shop vac. Fuji's Q series uses an all-metal case with computer-designed air paths that cut the direct sound paths, without wrapping the motor in soundproofing that traps heat.
Standard turbineFuji's comparison figure
Fuji Q5 Platinum5-stage, 9.5 psi
Fuji Q4 Platinum4-stage, 9 psi
Normal conversationfor reference
Sound levels measured at 15 ft, as listed by Fuji Spray. At 20 ft, Fuji lists the Q5 at 60 dBA. Bars start at 40 dBA, about the level of a quiet room. Fuji's Q series noise reduction is protected by US Patent No. 6,644,913.
Compare
Q5, Q4, Mini-Mite 5 or D6?
The Q5 sits near the top of the Fuji line. Here's how it lines up against the models people compare it with most.
| Model | Q4 PlatinumQuiet, 4-stage | Q5 PlatinumThis system | Mini-Mite 5Portable, 5-stage | D66-stage, max power |
|---|---|---|---|---|
| Turbine | 4-stage | 5-stage | 5-stage | 6-stage |
| Pressure | 9 psi | 9.5 psi | 9.5 psi | Up to 11.5 psi |
| Noise at 15 ft | 61 dBA | 63 dBA | Not listed | Not listed |
| Turbine weight | 22.73 lb | 24.06 lb | 15.22 lb | Not listed |
| Best for | Quiet shop work with lighter coatings | Quiet shop work with thicker coatings | Job sites, when you carry it in and out | Heavy coatings and the most control |
| Price | From $1,819 | From $2,189 | From $1,639 | From $3,169 |
Specs as listed in Fuji Spray's catalogue. Prices are live.
What it's for
Made for fine finishing.
- Kitchen cabinets, vanities and built-ins
- Interior doors, trim, mouldings and millwork
- Furniture refinishing and new furniture
- Shop and production finishing, where a quiet turbine matters
- Waterborne and solvent-based coatings
LacquerStainSanding sealerVarnishPolyurethaneCabinet enamelWaterborne primer & paintShellac
Painting walls or a whole house?
HVLP gives you control and little overspray, but it isn't fast on big surfaces. For walls, ceilings and exteriors, an airless paint sprayer is the better tool. For cabinets, pair your Q5 with Envirolak waterborne lacquer, which we tint and match in store.
In the box
Everything to start spraying.
Every Q5 Platinum system
- Q5 Platinum 5-stage turbine (9.5 psi) with variable speed control dial
- Your choice of T70, T75G or G-XPC non-bleed spray gun and cup
- 25 ft 7088 Heavy Duty hose with quick-connect coupling and air control valve
- #4 Ford viscosity cup, wrench and cleaning brush
- Detailed user manual

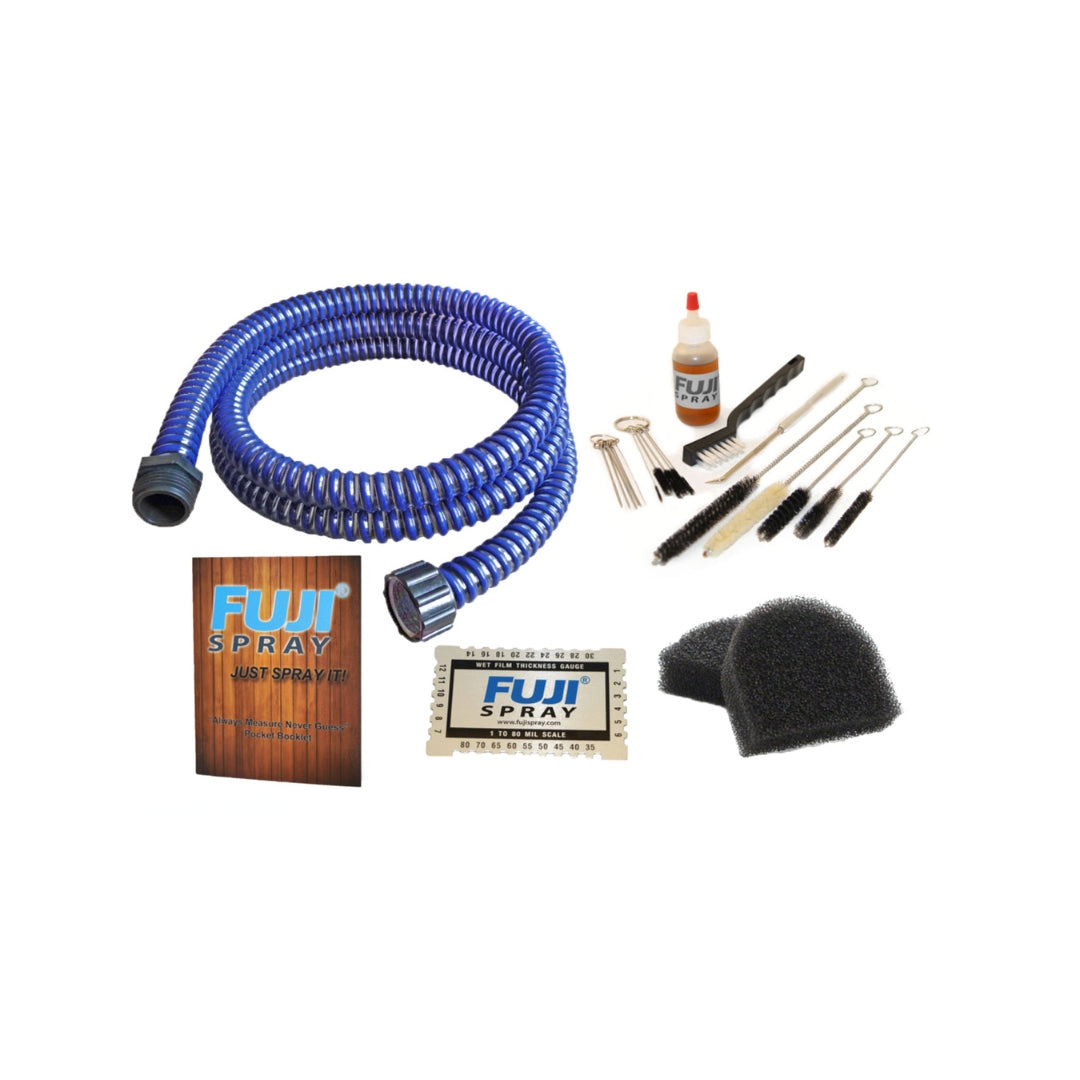

Bonus with new systems
Fuji 5 for 5 bonus kit
- 6 ft flexible whip hose
- 19-piece spray gun cleaning kit with lubricant
- Extra 5029 turbine filters
- Wet film gauge
- "Always Measure" booklet
Specifications
Q5 Platinum specs.
| Model numbers | 2895-T75G (T75G gun), 3005-T70 (T70 gun), GXPC-2895 (G-XPC gun) |
|---|---|
| Turbine | 5-stage Q Platinum series, about 9.5 psi |
| Speed control | Variable speed control dial |
| Noise | 63 dBA at 15 ft, 60 dBA at 20 ft |
| Power | 110–120 V, 60 Hz, 14.5 A |
| Turbine size | 14.87 × 11.5 × 9 in |
| Turbine weight | 24.06 lb |
| Filter | Single #5029 |
| Hose | 25 ft Heavy Duty #7088, quick-connect and air control valve |
| Cups | T75G: 600 mL nylon gravity. T70: 1 L aluminum bottom-feed. G-XPC: 400 mL aluminum side-mount gravity |
| Air cap | 1.3 mm (T75G, T70), 1.4 mm (G-XPC). Other sizes sold separately |
| Fluid passages | Stainless steel |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
Set-up & use
From box to first coat.
- 1Set up the turbineOn a flat, clean surface away from your spray area, with the filter in place.
- 2Connect the hoseSnap the quick-connect onto the turbine and attach the gun.
- 3Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 4Test on cardboardStart the speed dial low and raise it for thicker coatings. Set the fan and fluid flow until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Clean and checkClean the gun right after with the right cleaner and the included kit. Check the turbine filter often and replace it when dirty.
Customer reviews
From Q5 owners.
“I chose the Q series for the advertised lower decibels… it is considerably less noisy than my Rigid shop vac. More important, the spray results are very good.”
“Ordered from The Paint People and rec'd the order very fast… the packaging and parts are all first class.”
Keep it spraying
Parts that fit the Q5 Platinum.
Keep a spare filter and the right air caps on hand. We carry every one of these, so you're not waiting on a part to finish a job.
5029 turbine filters
Fits Q3, Q4 and Q5 Platinum turbines.
$11.755100 air caps
0.8 to 2.5 mm caps for T70 and T75G guns.
$99.958050 air caps
Caps for the G-XPC gun.
$95.35600 mL aluminum cup
Aluminum gravity cup upgrade.
$74.3530 ft Super Duty hose
More reach than the stock 25 ft hose.
$1295262 rebuild kit
Seals and parts for T70 and T75 guns.
$58.25Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
Q5 Platinum questions, answered.
Q5 Platinum or Mini-Mite 5: which should I buy?
Both have a 5-stage, 9.5 psi turbine and the same gun choices. The Mini-Mite 5 weighs 15.22 lb and is built to carry from job to job. The Q5 weighs 24.06 lb but runs at 63 dBA at 15 ft. Choose the Q5 if it stays in a shop or you spray in occupied homes.
What's the difference between the Q5 and Q4?
The Q5 adds a fifth stage: about 9.5 psi versus 9 psi on the Q4 Platinum. That extra pressure helps with thicker coatings like cabinet enamels and primers. Both use the same quiet case and the same three guns.
Which gun should I choose: T75G, T70 or G-XPC?
The T75G (600 mL gravity cup) suits most cabinet and furniture work. The T70 (1 L bottom-feed cup) means fewer refills on bigger jobs. The G-XPC (400 mL side-mount cup) gets into tight spots and small parts.
Can the Q5 spray waterborne paint and primer?
Yes. It sprays waterborne and solvent-based coatings, including lacquer, stain, polyurethane and cabinet enamel. Check viscosity with the #4 Ford cup and thin only as the coating maker allows. For waterborne paint and primer, Fuji recommends a 2.0 mm air cap, sold separately as a 5100 air cap for T-Series guns.
How loud is the Q5 Platinum?
Fuji lists it at 63 dBA at 15 ft and 60 dBA at 20 ft. Fuji puts a standard turbine at 79 dBA from 15 ft.
What comes in the box?
The turbine, your choice of gun and cup, a 25 ft 7088 Heavy Duty hose with quick-connect and air control valve, a #4 Ford viscosity cup, wrench, cleaning brush and manual. New systems also include Fuji's 5 for 5 bonus kit: a 6 ft whip hose, a 19-piece cleaning kit, extra turbine filters, a wet film gauge and a booklet.
What warranty does the Q5 have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms. Our Rockwood Village spray centre in Mississauga also services and repairs sprayers.
Do you have open-box units?
Sometimes. Open-box (A+) Q5 Platinum units are opened but never used, inspected and complete, with the full Fuji warranty, the bonus kit and 35-day returns. See the open-box Q5 Platinum for what's in stock.
Ready to spray like a shop?
Not sure about the gun, the air cap or whether you need the Q5 at all? Tell us what you're spraying. We'll help you pick, and tell you which parts to keep on hand.
