Fuji Spray · DIY-PRO series
Gravity-fed finish.
Weekend-friendly price.

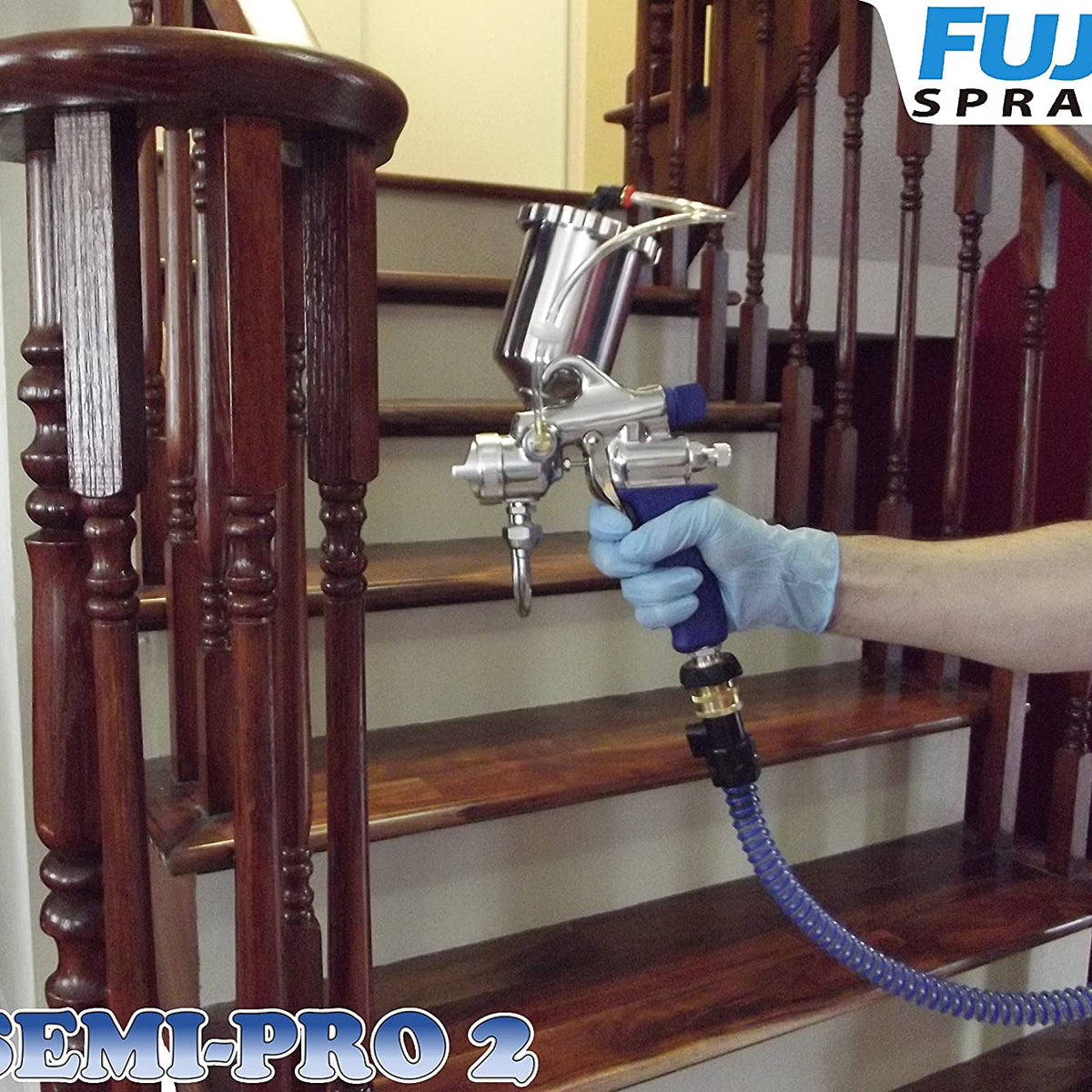

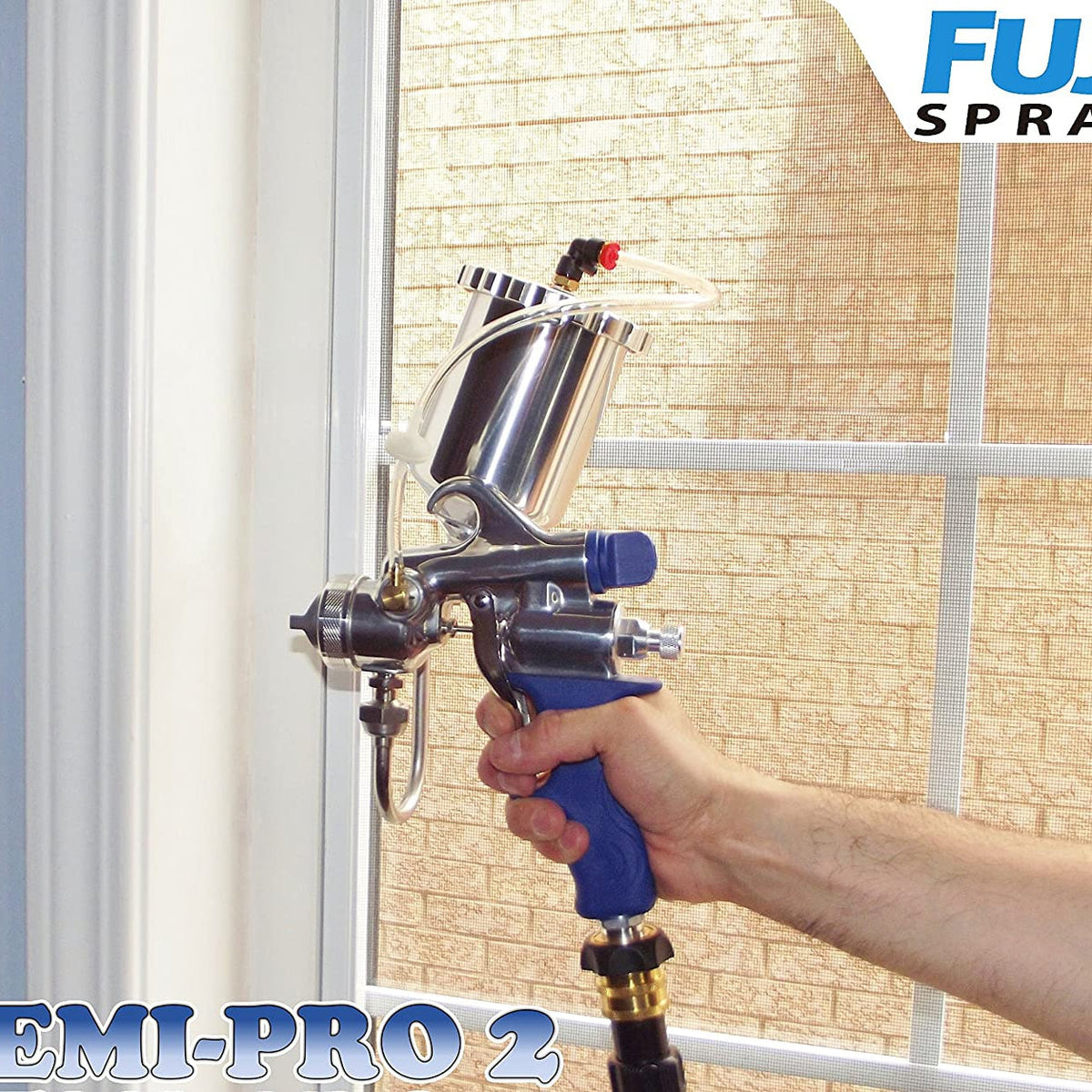

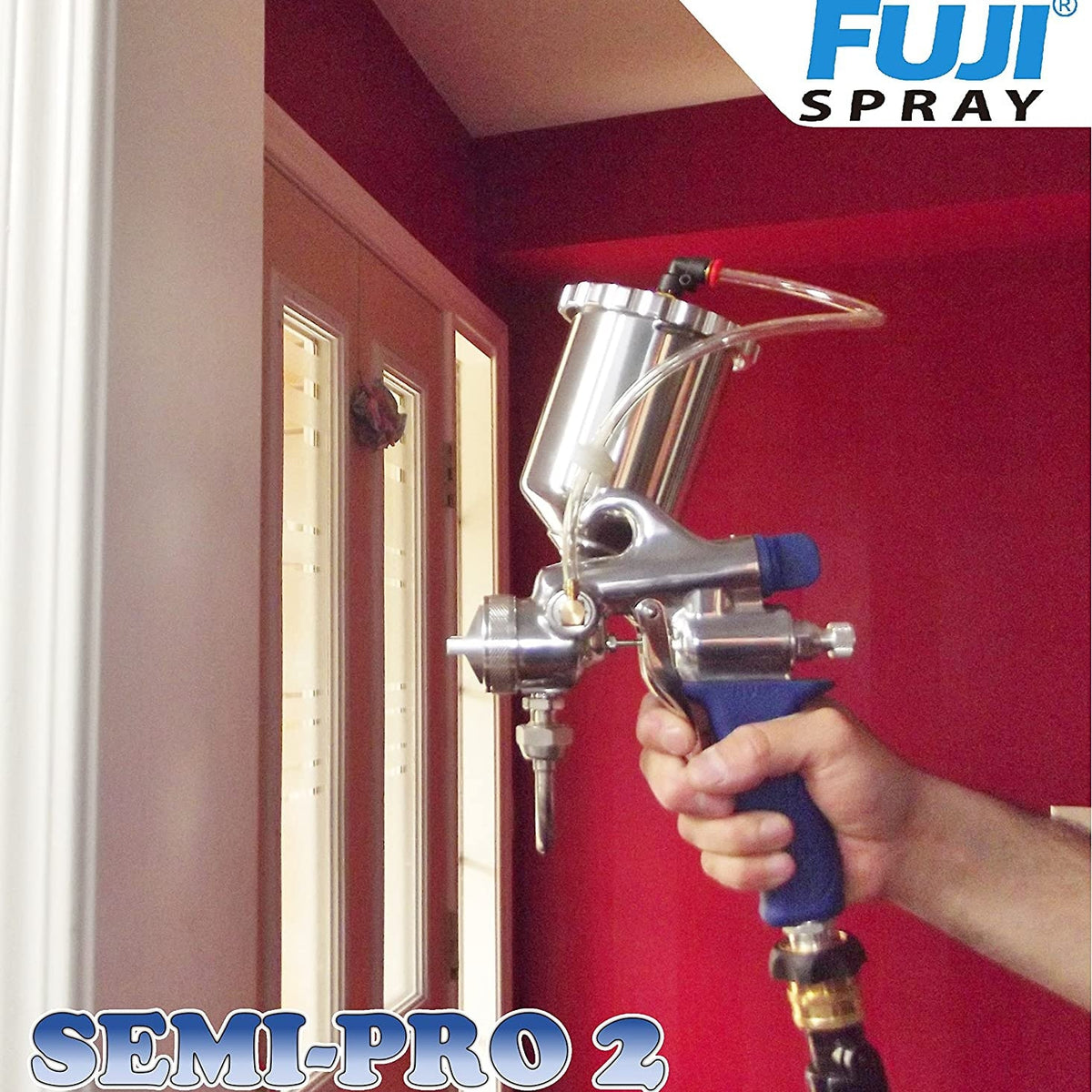

The Fuji Semi-PRO 2 Gravity pairs a 2-stage, 5 psi DIY-PRO turbine in a metal case with Fuji's non-bleed M-Model 7002G gravity-feed gun and 400 mL aluminum gravity cup. It's the easy way into HVLP for furniture makeovers, doors, trim and cabinets, with a soft, even spray and very little overspray.
5 psifrom a 2-stage turbine
25 ftHi-Flex hose
1.3 mmair cap installed
24 moFuji limited warranty
Fuji Semi-PRO 2 - Gravité, Système de pulvérisation HVLP, 2203G
2-stage DIY-PRO turbine · M-Model gravity gun · 400 mL cup
Prix habituel
$679.00 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
Découvrez le Fuji Semi-PRO 2 - Gravity, Système de pulvérisation HVLP, 2203G
Vous cherchez un pulvérisateur de peinture HVLP de haute qualité, facile à utiliser et qui ne vous ruinera pas ? Ne cherchez pas plus loin que le système de pulvérisation HVLP Fuji Spray 2203G Semi-Pro 2 ! Cette incroyable machine fait partie de la série DIY-PRO de Fuji Spray et est parfaite pour tous, des guerriers du week-end aux hobbyistes expérimentés. Le système de pulvérisation HVLP Fuji Spray 2203G Semi-Pro 2 offre une combinaison parfaite de polyvalence et de performance, ce qui le rend idéal pour pulvériser des armoires, des portes, des moulures et des meubles. C'est également le système parfait pour les petits ateliers et un usage domestique.
Avec son contrôle de ventilateur de précision et sa turbine haute vitesse, vous pourrez obtenir une finition parfaite à chaque fois. Et grâce à son design léger et à sa poignée ergonomique, vous pouvez facilement le manœuvrer dans votre espace de travail. De plus, le système de pulvérisation Fuji Spray 2203G Semi-Pro 2 HVLP est livré avec tout ce dont vous avez besoin pour commencer, y compris un tuyau d'air de 25 pieds et un godet gravitaire de 400 cc. Alors pourquoi attendre ? Obtenez le pulvérisateur de peinture HVLP parfait aujourd'hui !
Caractéristiques
⭐ Système de pulvérisation HVLP parfait pour les bricoleurs sérieux et les semi-professionnels.
⭐ Pistolet à pulvériser professionnel sans éclaboussures avec contrôle de motif de ventilateur réglable
⭐ Ensemble de buse d'air de 1,3 mm installé
⭐ Gobelet gravitaire de 400cc léger et portable
⭐ Boîtier de turbine en métal avec support de pistolet pratique
⭐ Le tuyau de 25 pieds comprend une vanne de contrôle de l'air pour réduire les éclaboussures et le rebond
⭐ Raccord rapide et vanne de contrôle d'air
Ce qui est inclus
1 - 2 Étape DIY-PRO™ Série Turbine (5,0 PSI)
1 - Pistolet de pulvérisation gravité M-Model Non-Sec avec un godet en aluminium pressurisé de 400cc
1 - Ensemble de buse à air de 1 - 1,3 mm installé
1 - Contrôle du motif du ventilateur situé à l'arrière
1 - Tuyau Hi-Flex™ de 25 pieds
1 - Raccord rapide et vanne de contrôle d'air
1 - Manuel d'utilisation détaillé
1 - #4 Coupe de viscosité Ford
1 - Clé et brosse de nettoyage
1 - Garantie de 2 ans sur les pièces et la main-d'œuvre
Spécifications
|
Longueur assemblée (pouces) |
16,5” |
|
Largeur assemblée (pouces) |
14” |
|
Hauteur assemblée (pouces) |
15,5” |
|
Poids assemblé (lbs) |
25,2lbs |
Why the Semi-PRO 2 Gravity
Pro-style spraying, simplified.
Non-bleed M-Model gunAir flows only when you pull the trigger, with stainless steel needle and nozzle and a rear fan pattern control.
400 mL gravity cupPaint feeds down from the top, so you can spray to the last drop and tilt freely on detailed work.
2-stage metal turbineA rugged metal case with a handy gun holder and quick-change dual filters.
Air control valveTurn the air down at the gun to cut overspray and bounce-back.
Air caps for any coatingSwap in 7020 air caps from 0.8 to 2.0 mm to match stains, lacquers and paints.
24-month Fuji warrantyFuji's limited warranty covers the original buyer for 24 months from the date of purchase.
Turbine power
Where the Semi-PRO 2 fits.
Two stages are plenty for stains, lacquers, polyurethanes and thinned paints. Thicker coatings atomize more easily with more stages.
Semi-PRO 22-stage DIY-PRO
Mini-Mite 3 / Q33-stage Platinum
Mini-Mite 4 / Q44-stage Platinum
Mini-Mite 5 / Q55-stage Platinum
D66-stage
Pressure as listed by Fuji Spray. More stages build more pressure, so thicker coatings atomize with less thinning.
Compare
Which entry-level Fuji?
Fuji's DIY-PRO systems share a 2-stage turbine. The difference is the gun and cup, and the Mini-Mite 3 is the first step up.
| Model | Semi-PRO 2Bottom feed | Semi-PRO 2 GravityThis system | Hobby-PRO 2DIY-PRO, 1.8 mm cap | Mini-Mite 3Platinum, 3-stage |
|---|---|---|---|---|
| Turbine | 2-stage, 5 psi | 2-stage, 5 psi | 2-stage, 5 psi | 3-stage, 6.5 psi |
| Gun | M-Model 7001, bottom feed | M-Model 7002G, gravity | M-Model 7003, bottom feed (black) | T75G, T70 or G-XPC |
| Cup | 1 qt aluminum | 400 mL aluminum | 1 qt aluminum | 600 mL, 1 L or 400 mL |
| Air cap installed | 1.3 mm | 1.3 mm | 1.8 mm | 1.3 or 1.4 mm |
| Filter | Dual #4009-2 | Dual #4009-2 | Dual #4009-2 | Dual #7224-2 |
| Best for | Doors, trim, furniture | Detail work, smaller parts | Paints out of the box | Frequent use, Platinum build |
| Price | From $679 | From $679 | From $679 | From $1,049 |
Specs as listed in Fuji Spray's catalogue. Prices are live.
What it's for
Made for weekend projects and small shops.
- Furniture makeovers and refinishing
- Interior doors, trim and mouldings
- Kitchen and bathroom cabinets
- Crafts, cabinets and small workshop projects
- Waterborne and solvent-based coatings
StainLacquerPolyurethaneVarnishSanding sealerThinned latex paintShellac
Painting walls or a whole house?
HVLP gives you control and little overspray, but it isn't fast on big surfaces. For walls, ceilings and exteriors, an airless paint sprayer is the better tool. For cabinets, pair your Semi-PRO 2 Gravity with Envirolak waterborne lacquer, which we tint and match in store.
In the box
Everything to start spraying.

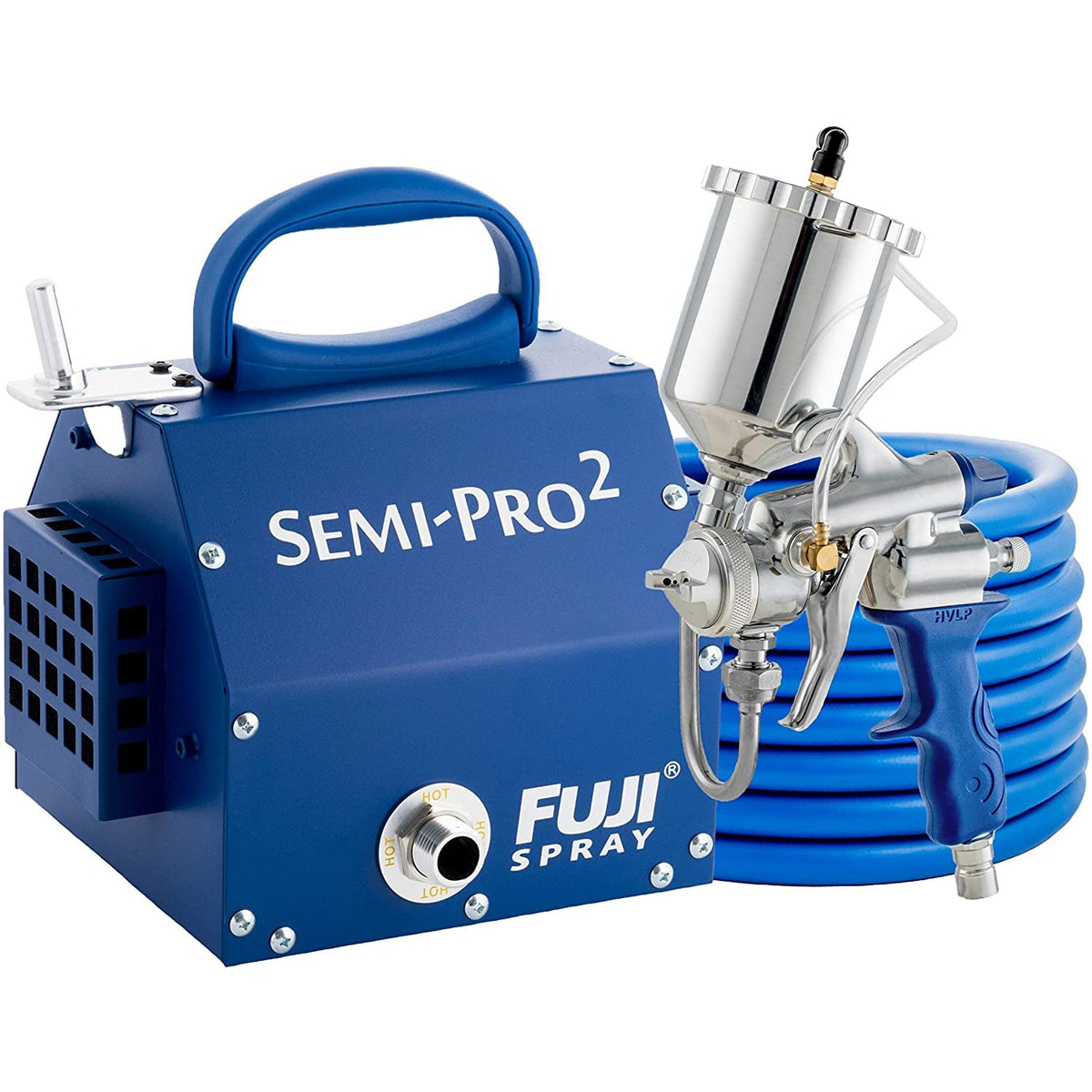

In the Semi-PRO 2 Gravity box
- 2-stage DIY-PRO series turbine (5 psi) in a metal case with gun holder
- Non-bleed M-Model 7002G gravity-feed gun with 400 mL aluminum gravity cup
- 1.3 mm air cap set installed
- 25 ft Hi-Flex hose with quick-connect coupling and air control valve
- #4 Ford viscosity cup, wrench, cleaning brush and user manual
Worth adding
Most owners add these
Specifications
Semi-PRO 2 Gravity specs.
| Model number | 2203G |
|---|---|
| Turbine | 2-stage DIY-PRO series, about 5 psi |
| Power | 110–120 V, 11.5 A |
| Turbine size | 11 × 8.6 × 8.1 in |
| Spray gun | Non-bleed M-Model 7002G gravity-feed gun, stainless steel needle and nozzle, rear fan pattern control |
| Cup | 400 mL aluminum gravity cup |
| Air cap | 1.3 mm installed. 0.8 to 2.0 mm 7020 caps sold separately |
| Filter | Dual #4009-2 |
| Hose | 25 ft Hi-Flex, quick-connect, air control valve |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
Set-up & use
From box to first coat.
- 1Set up the turbineOn a flat, clean surface away from your spray area, with the filters in place.
- 2Connect the hoseSnap the quick-connect onto the turbine and attach the gun.
- 3Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
- 4Test on cardboardSet the fan and fluid flow until the pattern is even.
- 5SprayHold the gun square to the surface and overlap each pass by about half.
- 6Clean and checkClean the gun right after with the right cleaner. Check the filters often and replace when dirty.
Customer reviews
From Semi-PRO 2 Gravity owners.
“The mist is so even and fine, zero lap marks. It could not be easier to achieve a flawless finish.”
“This sprayer is very easy to use once you get the right tip and paint viscosity… It is also relatively quiet and lightweight if you are transporting it around.”
Keep it spraying
Parts that fit the Semi-PRO 2 Gravity.
Match the air cap to your coating and keep spare filters on hand. We carry every one of these.
7020 air caps
Caps for M-Model guns.
$79.454009-2 turbine filters
Fits Semi-PRO and other DIY-PRO turbines. 2-pack.
$11.456 ft whip hose
A lighter, easier-moving hose at the gun.
$59.95Hi-Flex 25 ft hose
Replacement 25 ft turbine hose.
$99.95Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Reusable strainers, 3-pack
Strain as you pour.
$9.95Wet film gauge
Check wet film thickness as you spray.
$12.05Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
Semi-PRO 2 Gravity questions, answered.
Semi-PRO 2 or Semi-PRO 2 Gravity: which should I buy?
Both use the same 2-stage turbine. The Semi-PRO 2 has a bottom-feed gun with a 1 qt cup for fewer refills. The Semi-PRO 2 Gravity has a gravity gun with a 400 mL cup that's lighter in the hand and sprays to the last drop. Choose bottom feed for doors and big pieces, gravity for detailed work.
Semi-PRO 2 or Mini-Mite 3?
The Mini-Mite 3 Platinum steps up to 3 stages and 6.5 psi, Fuji's Platinum build and T-Series guns. Choose it if you spray often or use thicker coatings. For weekend projects with stains, lacquers and thinned paints, the Semi-PRO 2 does the job.
Can it spray latex paint?
Yes, usually thinned. A 2-stage turbine works best with thinner coatings, so check viscosity with the #4 Ford cup and thin only as the paint maker allows. A larger 7020 air cap, such as 1.8 or 2.0 mm, helps with thicker paints. Test on cardboard first.
Which air cap should I use?
The 1.3 mm cap that comes installed suits clear lacquer, varnish and polyurethane. Use a smaller cap for dyes and stains, and 1.8 to 2.0 mm for pigmented and waterborne paints. M-Model guns take 7020 caps.
What filter does it use?
The Semi-PRO 2 uses dual #4009-2 filters. Check them often and replace them when dirty to protect the motor.
Is it good for cabinets?
Yes, for a kitchen or two with the right coating and some practice. If you plan to spray cabinets often, a Platinum system like the Mini-Mite 4 handles thicker cabinet enamels with less thinning.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms. Our Rockwood Village spray centre in Mississauga also services and repairs sprayers.
Ready for your first HVLP finish?
Not sure which cap or coating to start with? Tell us what you're spraying. We'll help you set up, and tell you which parts to keep on hand.
