Fuji Spray · Mini-Mite Platinum series

The all-rounder
for cabinets and trim.

The Fuji Mini-Mite 4 Platinum puts a 4-stage, 9 psi HVLP turbine in a 15 lb case. It has enough pressure for lacquer, polyurethane and most waterborne cabinet coatings, and it's light enough to carry from kitchen to kitchen.

9 psifrom a 4-stage turbine

15 lbturbine weight, per Fuji

3 gunsT70, T75G or G-XPC

24 moFuji limited warranty

Fuji Mini-Mite 4 Platinum turbine with the T75G gravity-feed spray gun — Shown with the T75G gun

Fuji Spray

Système de pulvérisation de peinture HVLP Fuji Spray Mini-Mite 4 PLATINUM™

En stock - 6 articles disponibles

SKU: 2904-T70 UPC: 612850290472

(3)

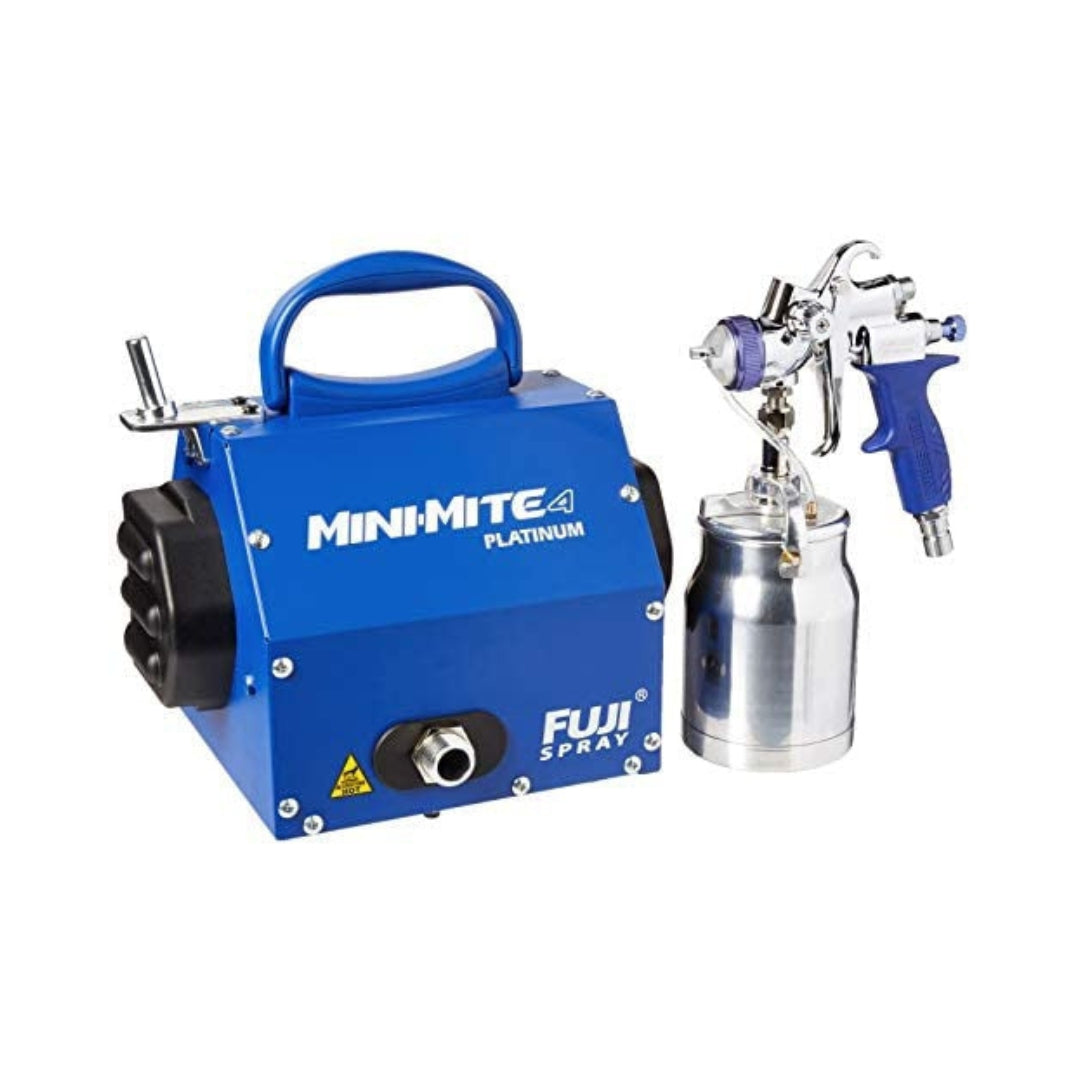

Fuji Mini-Mite 4 Platinum HVLP turbine with T70 bottom-feed spray gun and 1 L aluminum cup

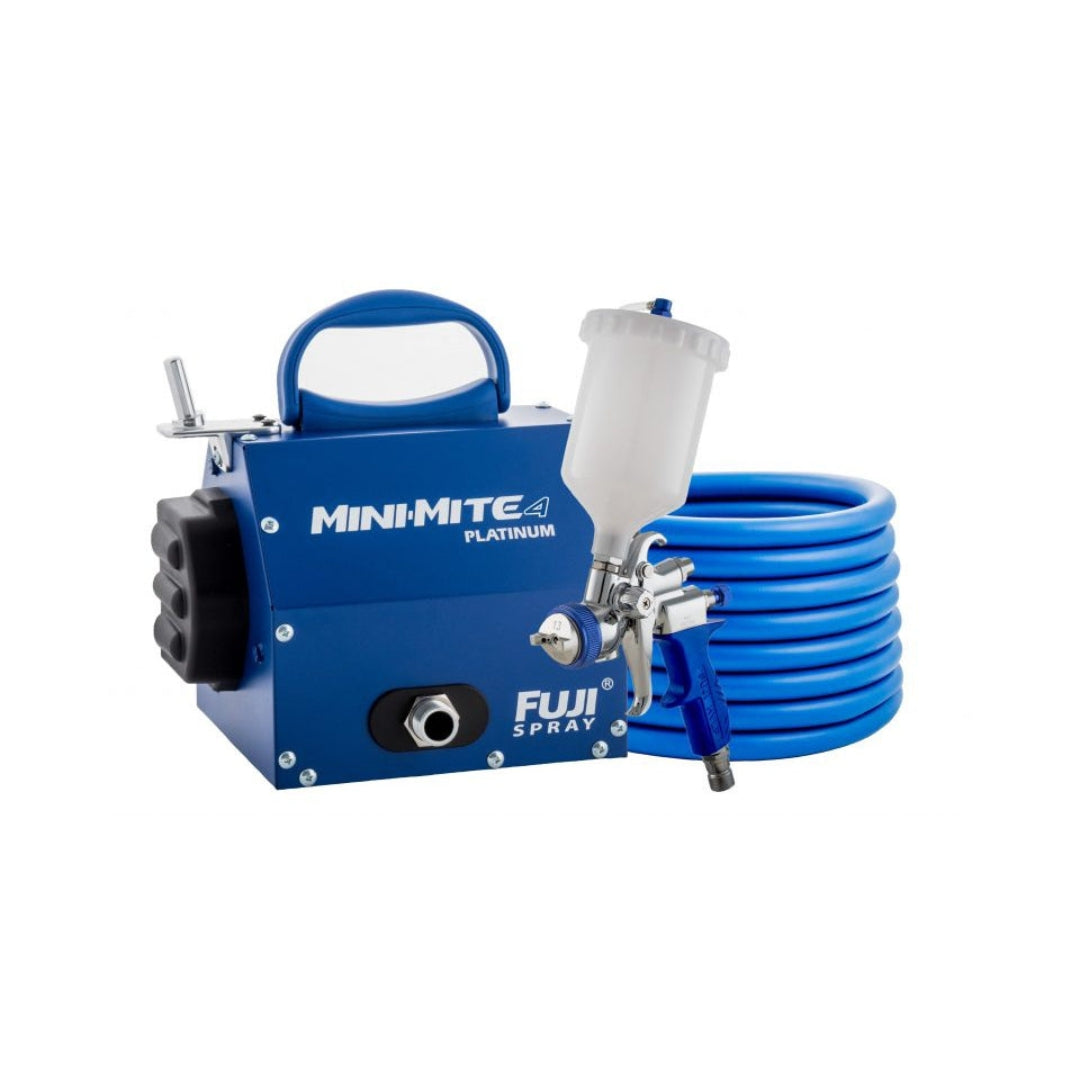

Fuji Mini-Mite 4 Platinum HVLP turbine with T75G gravity-feed spray gun and 600 mL nylon cup

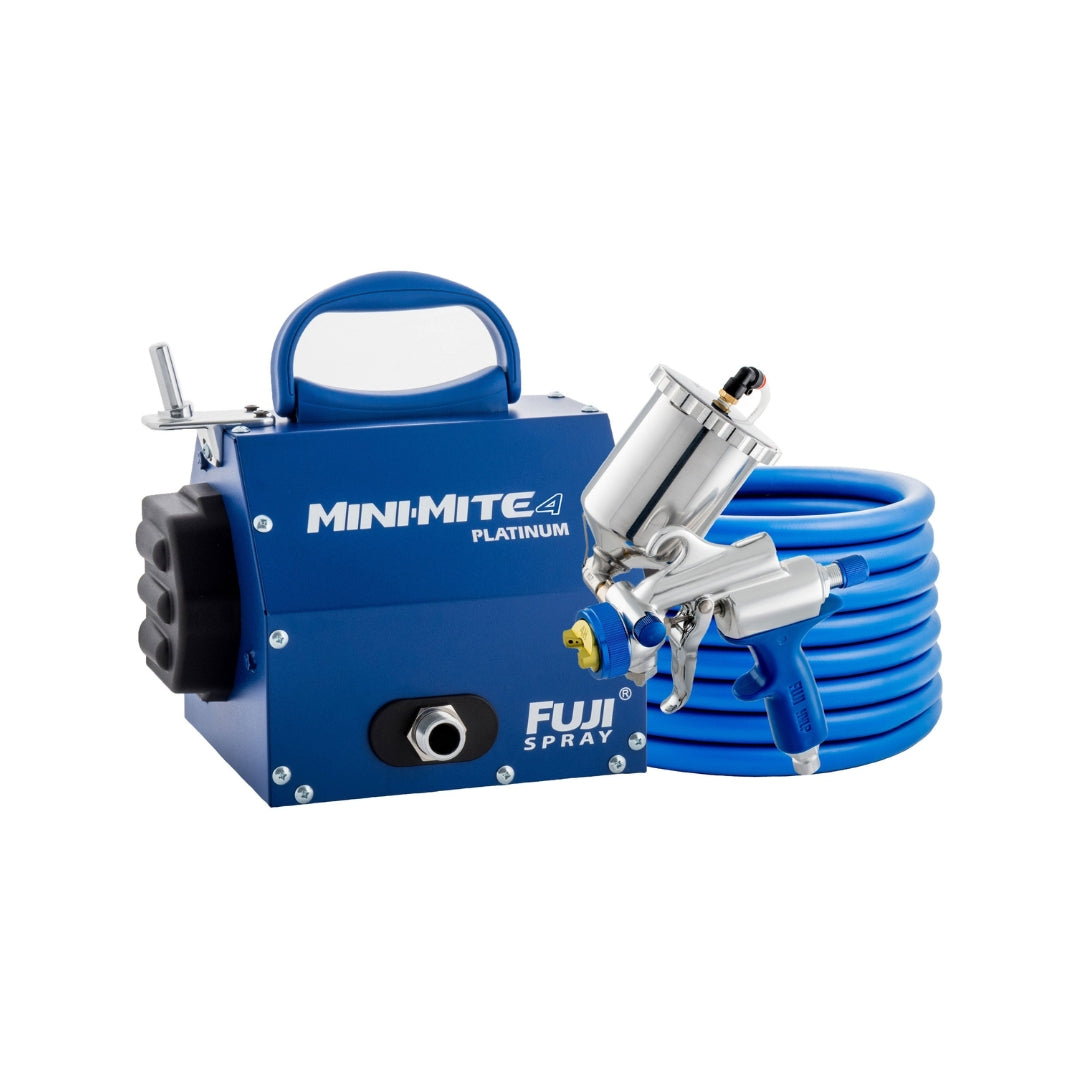

Fuji Mini-Mite 4 Platinum HVLP turbine with G-XPC spray gun and side-mounted 400 mL aluminum cup

Portable 4-stage turbine · 9 psi · 15 lb

$1,339.00 CAD

Style de pistolet

T70 Alimentation par le bas T75G Alimentation par gravité GXPC Montage latéral à gravité

✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!

Step 1 · Pick your gun

Same turbine. Three ways to spray.

Every Mini-Mite 4 comes with one non-bleed Fuji gun. Pick the one that suits your work, and we'll select it in the buy box for you.

Fuji Mini-Mite 4 Platinum with the T75G gravity-feed gun and 600 mL nylon cup

Best for most cabinet work

T75G gun

Feed: Gravity
Cup: 600 mL nylon
Air cap: 1.3 mm
Model: 2804-T75G

Paint feeds down from the top cup, so you can spray to the last drop and tilt freely on doors and face frames.

$1,339

Fuji Mini-Mite 4 Platinum with the T70 bottom-feed gun and 1 L aluminum cup

Best for bigger jobs

T70 gun

Feed: Bottom (siphon)
Cup: 1 L (1 qt) aluminum
Air cap: 1.3 mm
Model: 2904-T70

The largest cup of the three, so fewer refills on long runs like a set of cabinet boxes or a run of trim.

$1,339

Best for tight spots

G-XPC gun

Feed: Side-mount gravity
Cup: 400 mL aluminum
Air cap: 1.4 mm
Model: GXPC-2804

The cup sits on the side of the gun, so you can see past it and get into cabinet interiors, drawers and small parts.

$1,329

Turbine power

The sweet spot in the line-up.

Four stages give the Mini-Mite 4 enough pressure for most cabinet and trim coatings, without paying for the top models.

Semi-PRO 22-stage DIY-PRO

5 psi

Mini-Mite 3 / Q33-stage Platinum

6.5 psi

Mini-Mite 4 / Q44-stage Platinum

9 psi

Mini-Mite 5 / Q55-stage Platinum

9.5 psi

D66-stage

11.5 psi

Pressure as listed by Fuji Spray. More stages build more pressure, so thicker coatings atomize with less thinning.

Compare

Mini-Mite 4, Mini-Mite 5 or Q4?

Here's how the Mini-Mite 4 compares with the systems on either side of it.

Model	Mini-Mite 3Portable, 3-stage	Mini-Mite 4This system	Mini-Mite 5Portable, 5-stage	Q4 PlatinumQuiet, 4-stage
Turbine	3-stage	4-stage	5-stage	4-stage
Pressure	6.5 psi	9 psi	9.5 psi	9 psi
Turbine weight	14.56 lb	15.00 lb	15.22 lb	22.73 lb
Noise at 15 ft	Not listed	Not listed	Not listed	61 dBA
Bonus kit	No	No	5 for 5	No
Best for	Thinner coatings like stain and lacquer	Most cabinet and trim coatings	Thicker coatings on the move	Quiet shops and occupied homes
Price	From $1,049	From $1,329	From $1,539	From $1,819

Specs as listed by Fuji Spray. Prices are live.

What it's for

Made for fine finishing.

Kitchen cabinets, vanities and built-ins
Interior doors, trim, mouldings and millwork
Furniture refinishing and new furniture
Painters adding a fine-finish sprayer to their kit
Waterborne and solvent-based coatings

LacquerStainSanding sealerVarnishPolyurethaneCabinet enamelWaterborne primer & paintShellac

Painting walls or a whole house?

HVLP gives you control and little overspray, but it isn't fast on big surfaces. For walls, ceilings and exteriors, an airless paint sprayer is the better tool. For cabinets, pair your Mini-Mite 4 with Envirolak waterborne lacquer, which we tint and match in store.

In the box

Everything to start spraying.

Every Mini-Mite 4 system

Mini-Mite 4 Platinum 4-stage turbine (9 psi) with Heat Dissipation Chamber and Noise Reduction Covers
Your choice of T70, T75G or G-XPC non-bleed spray gun and cup
25 ft Hi-Flex hose with quick-connect coupling and air control valve
#4 Ford viscosity cup, wrench and cleaning brush
Detailed user manual

Worth adding

Most owners add these

Specifications

Mini-Mite 4 specs.

Model numbers	2804-T75G (T75G gun), 2904-T70 (T70 gun), GXPC-2804 (G-XPC gun)
Turbine	4-stage Mini-Mite Platinum series, about 9 psi
Power	110–120 V, 60 Hz, 13 A
Turbine size	12 × 8.6 × 8.1 in
Turbine weight	15.00 lb
Filter	Dual #7224-2
Hose	25 ft (7.6 m) Hi-Flex #7049, quick-connect
Cups	T75G: 600 mL nylon gravity. T70: 1 L aluminum bottom-feed. G-XPC: 400 mL aluminum side-mount gravity
Air cap	1.3 mm (T75G, T70), 1.4 mm (G-XPC). Other sizes sold separately
Warranty	24 months limited (Fuji Spray), original purchaser, from the date of purchase

Set-up & use

From box to first coat.

1Set up the turbineOn a flat, clean surface away from your spray area, with the filters in place.
2Connect the hoseSnap the quick-connect onto the turbine and attach the gun.
3Strain and checkStrain the coating into the cup and check it with the #4 Ford cup. Thin only as the coating maker allows.
4Test on cardboardSet the fan and fluid flow until the pattern is even.
5SprayHold the gun square to the surface and overlap each pass by about half.
6Clean and checkClean the gun right after with the right cleaner. Check the filters often and replace when dirty.

Customer reviews

From Mini-Mite 4 owners.

★★★★★

“The unit worked great, was easy to use and final results were excellent!!”

Terry C, Pierrefonds, QC · Verified buyer

★★★★★

“My previous system was an Earlex Spray Station HV5500… The difference between the Earlex and Fuji is HUGE!”

Ski Nut, Perth · Verified buyer

★★★★★

“Great sprayer. Easy to set up. Clean… Highly recommend to anyone looking for a top quality sprayer.”

Jason Cole, Toronto · Verified buyer

Read all reviews

Keep it spraying

Parts that fit the Mini-Mite 4.

Keep spare filters and the right air caps on hand. We carry every one of these, so you're not waiting on a part to finish a job.

7224-2 turbine filters

Fits Mini-Mite Platinum turbines. 2-pack.

$11.85

5100 air caps

0.8 to 2.5 mm caps for T70 and T75G guns.

$99.95

8050 air caps

Caps for the G-XPC gun.

$95.35

6 ft whip hose

A lighter, easier-moving hose at the gun.

$59.95

600 mL aluminum cup

Aluminum gravity cup upgrade.

$74.35

5262 rebuild kit

Seals and parts for T70 and T75 guns.

$58.25

Gun cleaning kit

Brushes and lubricant for every clean-up.

$37.95

Cone strainers, 40-pack

Strain every coat for a clean finish.

$15.35

Why buy from us

A spray shop, not just a website.

Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.

Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.

Best price beatFind the same Fuji for less and we'll beat the price. How it works.

Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.

FAQ

Mini-Mite 4 questions, answered.

Mini-Mite 4 or Mini-Mite 5: which should I buy?

The Mini-Mite 5 adds a fifth stage (about 9.5 psi versus 9 psi) and comes with Fuji's 5 for 5 bonus kit. Both weigh about 15 lb. Choose the Mini-Mite 5 if you spray a lot of thick cabinet enamels and primers. For lacquer, stain, poly and most waterborne coatings, the Mini-Mite 4 has plenty of pressure.

Mini-Mite 4 or Q4 Platinum?

Both have a 4-stage, 9 psi turbine and the same gun choices. The Mini-Mite 4 weighs 15 lb and is built to carry. The Q4 Platinum weighs 22.73 lb but has a quiet case, rated 61 dBA at 15 ft. Choose the Q4 for a shop or occupied homes.

Which gun should I choose: T75G, T70 or G-XPC?

The T75G (600 mL gravity cup) suits most cabinet and furniture work. The T70 (1 L bottom-feed cup) means fewer refills on bigger jobs. The G-XPC (400 mL side-mount cup) gets into tight spots and small parts.

Can it spray waterborne paint and primer?

Yes. It sprays waterborne and solvent-based coatings, including lacquer, stain, polyurethane and cabinet enamel. Check viscosity with the #4 Ford cup and thin only as the coating maker allows. For waterborne paint and primer, Fuji recommends a 2.0 mm air cap, sold separately as a 5100 air cap for T-Series guns.

What filter does it use?

The Mini-Mite 4 uses the dual #7224-2 filters. Check them often and replace them when dirty to protect the motor.

What comes in the box?

The turbine, your choice of gun and cup, a 25 ft Hi-Flex hose with quick-connect and air control valve, a #4 Ford viscosity cup, wrench, cleaning brush and manual.

What warranty does it have?

Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms. Our Rockwood Village spray centre in Mississauga also services and repairs sprayers.

Ready for a cabinet-smooth finish?

Choose your Mini-Mite 4 Ask our spray team

Not sure about the gun or the air cap? Tell us what you're spraying. We'll help you pick, and tell you which parts to keep on hand.
