Fuji Spray · Gravity conversion kit
Bottom feed
to gravity.
The genuine Fuji 9960 kit turns a Fuji bottom-feed gun into a gravity-feed gun. A stainless steel U-tube puts a 400cc aluminum cup on top, so you can spray to the last drop and tilt freely on detailed work.
400ccaluminum gravity cup
U-tubestainless steel
5parts in the kit
Nonew gun needed
Fuji 9960 Gravity Cup Conversion Kit for Bottom-Feed Guns
Bottom feed to gravity · 400cc aluminum cup · U-tube
Regular price
$78.35 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!

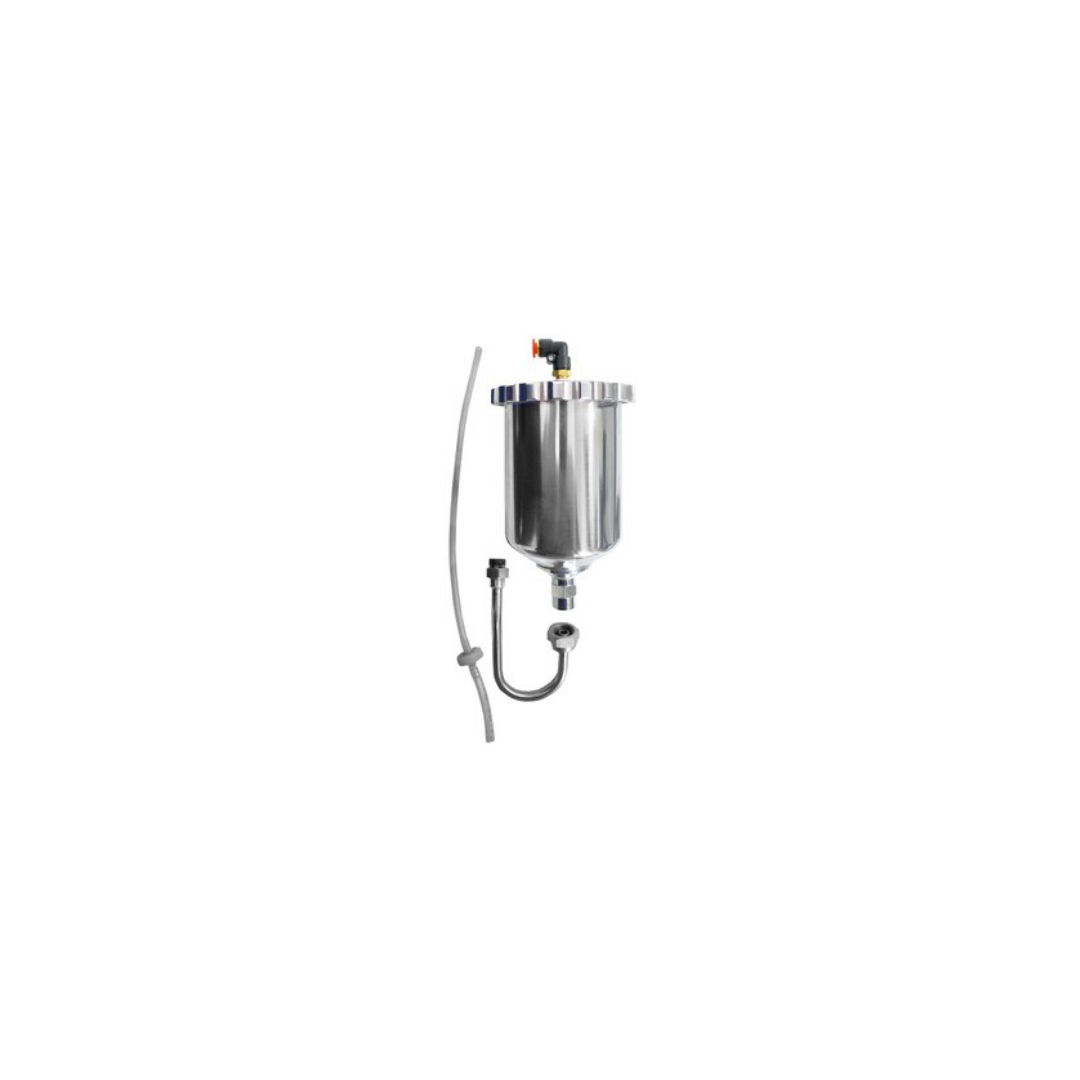

The genuine Fuji 9960 gravity cup conversion kit turns a Fuji bottom-feed spray gun into a gravity-feed gun. It includes a 400cc aluminum gravity cup, a stainless steel U-tube, lid, gasket and a pressure tube with a check valve.
Key Features & Benefits
- Converts to gravity feed: Spray to the last drop and tilt freely.
- 400cc aluminum cup: On a stainless steel U-tube.
- Check-valve pressure tube: Keeps steady pressure in the cup.
- Genuine Fuji Spray part: For a correct fit and seal.
What's Included
- 400cc aluminum gravity cup
- Stainless steel U-tube
- Cup lid
- Gasket
- Pressure tube with check valve
Compatibility
Fits Fuji bottom-feed guns, including the M-Model 7001 and T70. Wrap the threads with Teflon tape when installing to prevent leaks.
Product Specifications
| Part number | 9960 |
| Capacity | 400cc |
| Material | Aluminum cup, stainless steel U-tube |
| Type | Gravity cup conversion kit |
| Includes | 400cc aluminum gravity cup, stainless steel U-tube, cup lid, gasket and pressure tube with check valve |
| Fits | Fuji bottom-feed guns, including the M-Model 7001 and T70 |
| Install tip | Wrap the threads with Teflon tape to prevent leaks |
| Brand | Fuji Spray, Toronto, Canada |
How to Install
- Clean the gun. Flush the gun with the right cleaner and remove the bottom-feed cup.
- Tape the threads. Wrap the gun's fluid inlet threads with Teflon tape to prevent leaks.
- Fit the U-tube. Thread the stainless steel U-tube onto the fluid inlet so it points up.
- Mount the cup. Screw the 400cc gravity cup onto the U-tube and fit the pressure tube.
- Fill and seal. Strain the coating into the cup and close the lid with the gasket in place.
- Test on cardboard. Check for leaks, then set the fan and fluid flow until the pattern is even.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 9050 gaskets, 2030 cup parts kits and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Made for Fuji bottom-feed guns.
The 9960 converts Fuji bottom-feed guns, including the M-Model 7001 and the T70.
7001 M-Model gun
Bottom feed. The gun on the Semi-PRO 2.
$319T70 bottom-feed gun
T-Model gun with a 1 L bottom-feed cup.
$519Already have a gravity gun?
Gravity guns take their own cups.
- T75G: the 9860 or another T-Series cup.
- G-XPC: the 9850 side-mount cup.
- Not sure? Send us a photo of your gun and we'll check.
Why convert
Gravity feed, same gun.
Spray to the last dropCoating feeds down into the gun, so there's less left in the cup.
Tilt freelySpray overhead and at steep angles on doors, trim and small parts.
Keep both cupsSwap back to the bottom-feed cup for bigger jobs.
What's included
Everything to convert.
In the 9960 kit
- 400cc aluminum gravity cup
- Stainless steel U-tube
- Cup lid
- Gasket
- Pressure tube with check valve
Specifications
9960 kit specs.
| Part number | 9960 |
|---|---|
| Capacity | 400cc |
| Material | Aluminum cup, stainless steel U-tube |
| Type | Gravity cup conversion kit |
| Includes | 400cc aluminum gravity cup, stainless steel U-tube, cup lid, gasket and pressure tube with check valve |
| Fits | Fuji bottom-feed guns, including the M-Model 7001 and T70 |
| Install tip | Wrap the threads with Teflon tape to prevent leaks |
| Brand | Fuji Spray, Toronto, Canada |
Install
Convert your gun in minutes.
- 1Clean the gunFlush the gun with the right cleaner and remove the bottom-feed cup.
- 2Tape the threadsWrap the gun's fluid inlet threads with Teflon tape to prevent leaks.
- 3Fit the U-tubeThread the stainless steel U-tube onto the fluid inlet so it points up.
- 4Mount the cupScrew the 400cc gravity cup onto the U-tube and fit the pressure tube.
- 5Fill and sealStrain the coating into the cup and close the lid with the gasket in place.
- 6Test on cardboardCheck for leaks, then set the fan and fluid flow until the pattern is even.
Goes with it
Goes with your gravity setup.
Gaskets, tubes, a gun stand and bottom-feed cup spares, all in stock at our Mississauga spray centre.
9050 cup gaskets, 5-pack
Gaskets for 400cc gravity cups.
$26.052030 400cc cup parts kit
Gaskets and pressure tubes for 400cc gravity cups.
$47.355330 gun holder stand
Holds a gravity gun upright to fill and clean.
$21.952095 1 qt cup assembly
The current Fuji bottom-feed cup, with tube, gasket and diaphragm.
$79.957020 air caps
Caps for M-Model guns.
$79.45Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.359080 mini-cup set
Three 8 oz cups for touch-ups on bottom-feed guns.
$75.55Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
9960 kit questions, answered.
Which guns does the 9960 fit?
Fuji bottom-feed guns, including the M-Model 7001 and the T70. Not sure about yours? Send us a photo and we'll check.
What's included?
400cc aluminum gravity cup, stainless steel U-tube, cup lid, gasket and pressure tube with check valve.
Why convert to gravity feed?
Coating feeds down into the gun, so you can spray to the last drop and tilt the gun freely for overhead and detailed work.
Do I need Teflon tape?
Yes. Wrap the threads with Teflon tape when you fit the U-tube to prevent leaks.
Can I switch back to bottom feed?
Yes. Keep your bottom-feed cup, like the 2095 quart cup, and swap back for bigger jobs.
Which gasket does the cup use?
The 400cc cup uses the 9050 gasket, sold in a 5-pack.
Turn your gun into a gravity gun.
Not sure it fits your gun? Send us a photo and we'll check.
