Fuji Spray · MPX-30 mid-pressure compressor gun
Gravity or siphon.
Your call.
The Fuji MPX-30 is a mid-pressure spray gun for your compressor, in gravity or siphon feed. Each version comes with two air caps and a regulator gauge.
13.8cfm at 36 psi
2air caps included
502 gwithout cup
320 mmmax fan width
Fuji MPX-30 Mid-Pressure Compressor Spray Gun, Gravity or Siphon
Mid-pressure compressor gun · gravity or siphon · 13.8 cfm at 36 psi
Regular price
$359.00 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The Fuji MPX-30 mid-pressure compressor spray gun comes in gravity feed or siphon feed, and ships with two air caps and a high-pressure regulator gauge. The gravity version has a 1.4 mm cap installed plus a 1.3 mm set, and the siphon version has a 1.7 mm cap installed plus a 1.4 mm set. It needs 13.8 cfm at 36 psi, weighs 502 g without a cup, and its stainless steel fluid passages and optimized air passages suit waterborne and solvent-borne high-solid coatings. Buy either version with or without a cup.
Key Features & Benefits
- Gravity or siphon feed: A 600cc cup on top or a 1 qt cup below.
- Two air caps included: Gravity 1.4 and 1.3 mm, siphon 1.7 and 1.4 mm.
- Regulator gauge included: Read the air pressure at the gun.
- Mid-pressure design: Optimized air passages for more atomizing air on high-solids.
- Stainless steel fluid passages: For waterborne and solvent-based coatings.
- Side-mounted fan control: Fan width up to 320 mm.
- Ergonomic and easy to maintain: 502 g without a cup.
- 24-month Fuji limited warranty: For the original buyer, from the date of purchase.
Applications & Recommended Uses
Fuji lists the MPX-30 for waterborne and solvent-borne high-solid clear coat, and it suits refinishers and finishing shops with a compressor that delivers 13.8 cfm at 36 psi. Choose gravity for smaller jobs and quick colour changes, or siphon for more coating between refills. Not sure which version or cap? Ask our spray team.
Choose Your Version

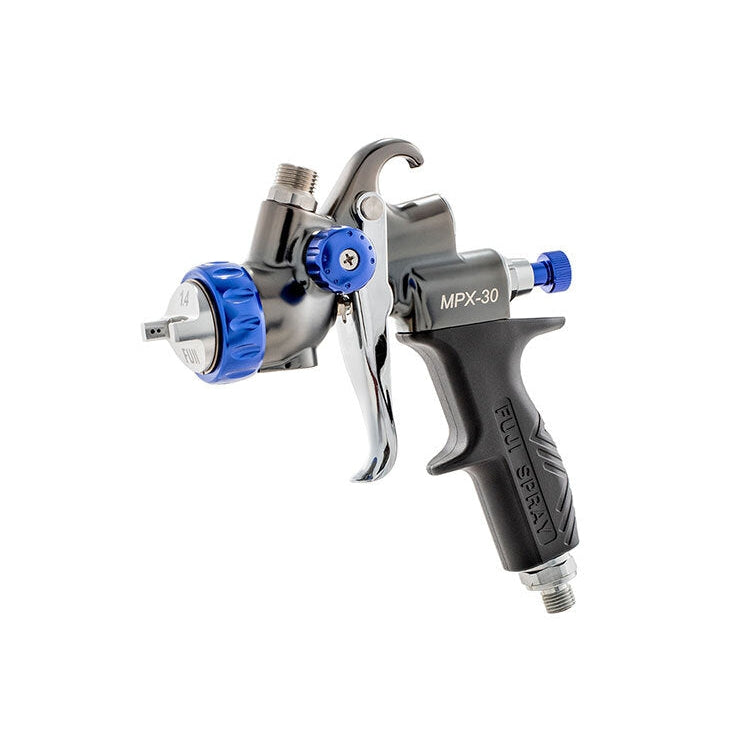

- Gravity, no cup (6355G-MP-N-14K)

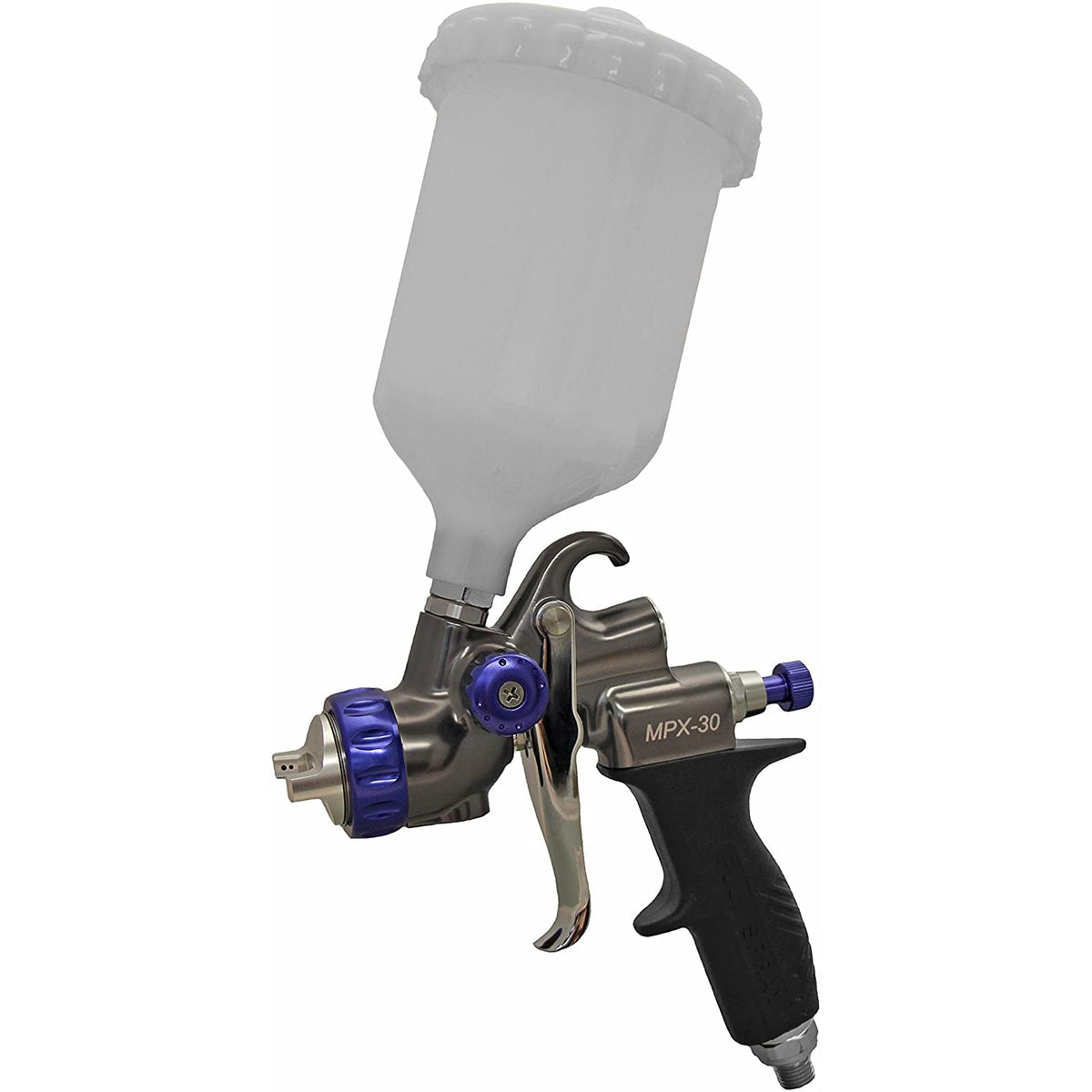

- Gravity with 600cc nylon cup (6355G-MP-C-14K)
- Siphon, no cup (6350S-MP-N-17K)
- Siphon with 1 qt cup (6350S-MP-C-17K)
Compatibility
Takes MPX-30 air cap sets from 1.0 to 2.0 mm, the 6382 MPX-30 rebuild kit, the 6380 regulator gauge, the 6375 3 oz gravity cup for touch-ups and the 6372 1 qt siphon cup. The siphon version runs from a 5466 or 5470 pressure pot with a 5486 or 5487 2-in-1 hose. The gravity version fits the 5330 and 5375 gun holders and 9030-10 barrel strainers. Strain with 9070-40 or 9025-3 cone strainers. Runs on compressed air, not a Fuji turbine. See all compressor spray guns.
Product Specifications
| Model | Fuji MPX-30 mid-pressure compressor spray gun |
| Versions | Gravity, no cup (6355G-MP-N-14K); gravity with 600cc nylon cup (6355G-MP-C-14K); siphon, no cup (6350S-MP-N-17K); siphon with 1 qt cup (6350S-MP-C-17K) |
| Air caps included | Gravity: 1.4 mm installed plus a 1.3 mm set. Siphon: 1.7 mm installed plus a 1.4 mm set |
| Air cap sets available | 1.0, 1.3, 1.4, 1.7 and 2.0 mm, sold separately |
| Recommended air supply | 13.8 cfm at 36 psi at the gun inlet |
| Air inlet | 1/4" BSP and NPS |
| Air hose | 5/16" ID |
| Fluid coupler (gravity) | M16 x 1.5 |
| Max fan width | 320 mm |
| Weight | 502 g, without cup |
| Fluid passages | 100% stainless steel |
| Coatings | Waterborne and solvent-borne, including high-solid clear coat |
| Also included | High-pressure regulator gauge |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
How to Use
- Check your air. Your compressor and lines need to deliver 13.8 cfm at 36 psi at the gun. Use clean, dry air.
- Fit the regulator. Fit the included regulator gauge at the 1/4" air inlet so you can read pressure at the gun.
- Pick your cap. Use the installed cap to start. Swap to the second cap in the box for thinner or heavier coatings.
- Fill the cup. Strain the coating into the 600cc gravity cup or the 1 qt siphon cup.
- Test the pattern. Spray a test panel. Adjust the side-mounted fan control and the fluid knob until the pattern is even.
- Clean right away. Flush the gun with the right cleaner for your waterborne or solvent-borne coating.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock MPX-30 rebuild kits, regulator gauges and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Set it up your way.
Add air cap sizes, a spare cup or the rebuild kit, or run the siphon version from a pressure pot.
MPX-30 air cap sets
1.0 to 2.0 mm, sold separately.
$90.656382 MPX-30 rebuild kit
Seals and wear parts for the MPX-30.
$60.956380 regulator gauge
Spare regulator gauge for the MPX-30.
$37.205466 2 qt compressor pot
Run the siphon version from a pot.
$289Before you buy
The MPX-30 runs on compressed air, not a turbine.
- Your compressor needs to deliver 13.8 cfm at 36 psi at the gun.
- Mid-pressure guns run at a higher inlet pressure than HVLP guns.
- Not sure? Tell us your compressor and we'll check.
Features
Built for high-solids.
Two air caps includedGravity: 1.4 and 1.3 mm. Siphon: 1.7 and 1.4 mm.
Regulator gauge includedRead the air pressure right at the gun.
More atomizing airFuji's optimized air passages for high-solid coatings.
What's included
Pick your version.
Choose from
- Gravity, no cup (6355G-MP-N-14K)
- Gravity with 600cc nylon cup (6355G-MP-C-14K)
- Siphon, no cup (6350S-MP-N-17K)
- Siphon with 1 qt cup (6350S-MP-C-17K)
Worth adding
Pairs well
Specifications
MPX-30 gun specs.
| Model | Fuji MPX-30 mid-pressure compressor spray gun |
|---|---|
| Versions | Gravity, no cup (6355G-MP-N-14K); gravity with 600cc nylon cup (6355G-MP-C-14K); siphon, no cup (6350S-MP-N-17K); siphon with 1 qt cup (6350S-MP-C-17K) |
| Air caps included | Gravity: 1.4 mm installed plus a 1.3 mm set. Siphon: 1.7 mm installed plus a 1.4 mm set |
| Air cap sets available | 1.0, 1.3, 1.4, 1.7 and 2.0 mm, sold separately |
| Recommended air supply | 13.8 cfm at 36 psi at the gun inlet |
| Air inlet | 1/4" BSP and NPS |
| Air hose | 5/16" ID |
| Fluid coupler (gravity) | M16 x 1.5 |
| Max fan width | 320 mm |
| Weight | 502 g, without cup |
| Fluid passages | 100% stainless steel |
| Coatings | Waterborne and solvent-borne, including high-solid clear coat |
| Also included | High-pressure regulator gauge |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
Set up the MPX-30.
- 1Check your airYour compressor and lines need to deliver 13.8 cfm at 36 psi at the gun. Use clean, dry air.
- 2Fit the regulatorFit the included regulator gauge at the 1/4" air inlet so you can read pressure at the gun.
- 3Pick your capUse the installed cap to start. Swap to the second cap in the box for thinner or heavier coatings.
- 4Fill the cupStrain the coating into the 600cc gravity cup or the 1 qt siphon cup.
- 5Test the patternSpray a test panel. Adjust the side-mounted fan control and the fluid knob until the pattern is even.
- 6Clean right awayFlush the gun with the right cleaner for your waterborne or solvent-borne coating.
Goes with it
Goes with the MPX-30.
Air caps, cups, a pressure pot, a gun stand and strainers, all listed by Fuji for the MPX-30.
MPX-30 air cap sets
1.0 to 2.0 mm, sold separately.
$90.656382 MPX-30 rebuild kit
Seals and wear parts for the MPX-30.
$60.956372 1 qt siphon cup
Spare cup for the MPX-30 siphon.
$53.906375 3 oz gravity cup
Small cup for touch-ups on the gravity gun.
$64.706380 regulator gauge
Spare regulator gauge for the MPX-30.
$37.205466 2 qt compressor pot
Run the siphon version from a pot.
$2895330 gun holder stand
Holds the gravity gun upright to fill.
$21.959030-10 barrel strainers
Stainless mesh for the nylon gravity cup. 10-pack.
$23.55Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
MPX-30 gun questions, answered.
What size compressor do I need?
Fuji recommends 13.8 cfm at 36 psi at the gun inlet. Check your compressor's rated cfm at that pressure, not just its tank size. Not sure? Tell us your compressor and we'll check.
Gravity or siphon?
Gravity feed has the cup on top, uses every drop and suits smaller jobs and quick colour changes. Siphon feed hangs a 1 qt cup below the gun, so you can spray more between refills. Both have the same air use and weight. Fuji also lists the siphon version for its 5466 2 qt and 5470 2.5 gallon pressure pots.
Which air caps come with it?
The gravity version comes with a 1.4 mm cap installed plus a 1.3 mm set. The siphon version comes with a 1.7 mm cap installed plus a 1.4 mm set. MPX-30 air cap sets from 1.0 to 2.0 mm are sold separately.
What does mid-pressure mean?
The MPX-30 is a mid-pressure gun, also called reduced pressure (RP). Fuji recommends 36 psi at the inlet, higher than an HVLP gun, with optimized air passages for more atomizing air on high-solid coatings.
What coatings can it spray?
Fuji lists it for waterborne and solvent-borne high-solid clear coat, and its 100% stainless steel fluid passages handle waterborne and solvent-based coatings. Not sure about yours? Ask us first.
Is there a rebuild kit?
Yes. The 6382 MPX-30 rebuild kit has the seals and wear parts to service the gun. A spare 1 qt siphon cup and a 3 oz gravity cup for touch-ups are also available.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
Can you service it for me?
Yes, once it's out of warranty. Our Rockwood Village spray centre in Mississauga repairs spray guns. Contact us to book it in. Still under Fuji's 24-month warranty? Contact Fuji Spray first, because repairs by anyone other than Fuji or its authorized agent void the warranty.
Spray high-solids with confidence.
Not sure the MPX-30 suits your compressor or coating? Tell us what you have and we'll help.
