Fuji Spray · MPX-30 siphon cup
A spare quart
for your MPX-30.

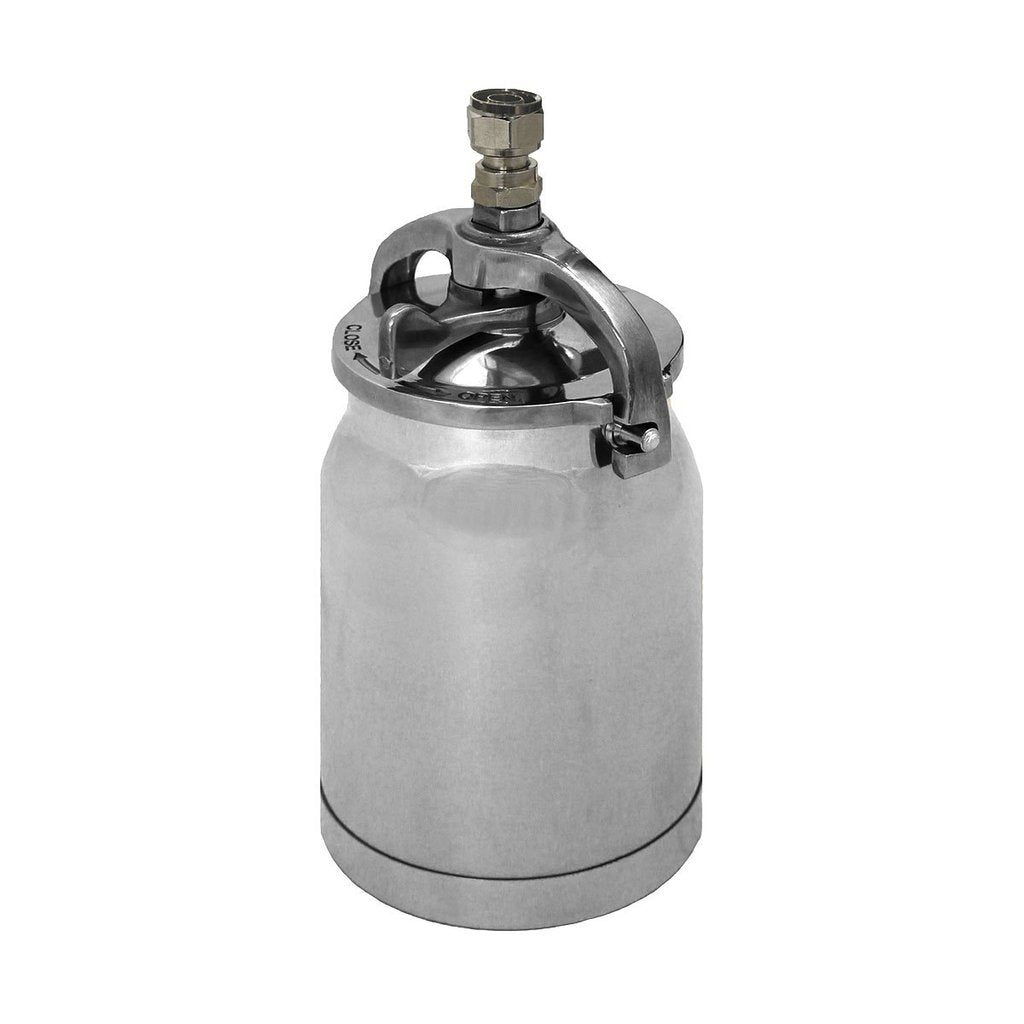

The genuine Fuji 6372 is the 1 qt siphon cup assembly for the MPX-30 compressor spray gun. It's the cup that comes on the siphon version, so you can keep a spare or replace a worn one.
1 qtsiphon cup
6372Fuji part number
MPX-30siphon gun
GenuineFuji Spray part
Fuji 6372 1 Qt Siphon Cup Assembly for the MPX-30 Spray Gun
1 qt siphon cup · MPX-30 siphon gun
Regular price
$53.90 CAD
Couldn't load pickup availability
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
The genuine Fuji 6372 1 qt siphon cup assembly is the siphon cup for the Fuji MPX-30 mid-pressure compressor spray gun. It's the same cup that comes on the MPX-30 siphon version, so you can keep a spare on hand or replace a damaged one.
Key Features & Benefits
- 1 qt capacity: Spray more coating between refills.
- Made for the MPX-30 siphon: The cup Fuji lists for the siphon gun.
- Serviceable lid: Replace the 6331 gasket and 6332 diaphragm when they wear.
- Genuine Fuji Spray part: For a correct fit and seal.
Compatibility
Fits the Fuji MPX-30 siphon compressor spray gun. It does not fit the MPX-30 gravity version, which takes a gravity cup. For small jobs on a gravity MPX-30 or LX-20, see the 6375 3 oz gravity cup.
Product Specifications
| Part number | 6372 |
| Capacity | 1 qt |
| Type | Siphon (bottom-feed) cup assembly |
| Fits | Fuji MPX-30 siphon compressor spray gun |
| Lid parts | 6331-5 cup gaskets and 6332-3 diaphragms, sold separately |
| Brand | Fuji Spray, Toronto, Canada |
Cleaning and Care
- Strain every fill. Strain the coating into the cup so debris doesn't reach the nozzle.
- Empty and wipe. After spraying, pour out what's left and wipe the cup and lid with a cleaner-soaked rag.
- Flush the gun. Put some cleaner in the cup, then spray it through until it runs clean.
- Clean the fluid tube. Check the siphon tube for dried coating and clean it before it hardens.
- Check the lid seal. If the lid doesn't seal, Fuji says to change the 6331 cup gasket. They come in a 5-pack.
- Replace the diaphragm. Swap in a new 6332 diaphragm when the old one is worn or swollen.
Why Buy From The Paint People?
We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock 6331 lid gaskets, 6332 lid diaphragms, 6382 rebuild kits and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.
Will it fit?
Made for the MPX-30 siphon.
The 6372 is the siphon cup Fuji lists for the MPX-30 siphon compressor spray gun.
Need a different cup?
Siphon cups hang below the gun, so they're made for siphon guns only.
- MPX-30 gravity: the 6360 600cc nylon gravity cup.
- Small jobs on a gravity MPX-30 or LX-20: the 6375 3 oz gravity cup.
- Fuji turbine guns take their own cups. Send us a photo if you're not sure.
Specifications
6372 cup specs.
| Part number | 6372 |
|---|---|
| Capacity | 1 qt |
| Type | Siphon (bottom-feed) cup assembly |
| Fits | Fuji MPX-30 siphon compressor spray gun |
| Lid parts | 6331-5 cup gaskets and 6332-3 diaphragms, sold separately |
| Brand | Fuji Spray, Toronto, Canada |
Care
Keep the cup clean and sealing.
- 1Strain every fillStrain the coating into the cup so debris doesn't reach the nozzle.
- 2Empty and wipeAfter spraying, pour out what's left and wipe the cup and lid with a cleaner-soaked rag.
- 3Flush the gunPut some cleaner in the cup, then spray it through until it runs clean.
- 4Clean the fluid tubeCheck the siphon tube for dried coating and clean it before it hardens.
- 5Check the lid sealIf the lid doesn't seal, Fuji says to change the 6331 cup gasket. They come in a 5-pack.
- 6Replace the diaphragmSwap in a new 6332 diaphragm when the old one is worn or swollen.
Goes with it
More for your MPX-30.
The gun, lid parts, air caps and cleaning supplies.
MPX-30 mid-pressure gun
Gravity or siphon feed.
$3596331-5 lid gaskets
Gaskets for the 1 qt lid. 5-pack.
$19.506332-3 lid diaphragms
Plastic diaphragms for the 1 qt lid. 3-pack.
$14.95MPX-30 air cap sets
1.0 to 2.0 mm, sold separately.
$90.656382 MPX-30 rebuild kit
Seals and wear parts for the MPX-30.
$60.953100 gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
6372 cup questions, answered.
Which gun does the 6372 fit?
The Fuji MPX-30 siphon compressor spray gun. It's the 1 qt cup Fuji lists for the siphon version.
Does it come with the gun?
Yes, the MPX-30 "Siphon, 1 qt cup" version comes with it. The "Siphon, no cup" version doesn't.
Will it fit the MPX-30 gravity?
No. The gravity version takes a gravity cup on top of the gun. Fuji's 600cc cup for it is the 6360 nylon gravity cup.
My lid won't seal. What do I replace?
Fuji says to change the cup gasket if the siphon cup lid doesn't seal. Replacements are the 6331-5 gaskets, sold in a 5-pack. The lid also has a 6332 diaphragm, sold in a 3-pack.
How do I clean it?
Empty it, wipe the cup and lid with a cleaner-soaked rag, flush cleaner through the gun, and clear the siphon tube before coating dries in it.
Can you service my gun?
Yes, once it's out of warranty. Our Rockwood Village spray centre in Mississauga repairs spray guns. Contact us to book it in. Still under Fuji's 24-month warranty? Contact Fuji Spray first.
Keep your MPX-30 spraying.
Not sure which cup or lid part you need? Send us a photo and we'll check.
