Fuji Spray · LX-20 air cap sets

Tune your LX-20
to the coating.

Genuine Fuji 6200LX air cap sets for the LX-20 compressor spray gun, in 5 sizes from 1.0 to 2.0 mm. Each set is a matched air cap, needle and nozzle.

5sizes, 1.0 to 2.0 mm
1.4 mmthe standard size
3matched parts per set
LX-20gun only

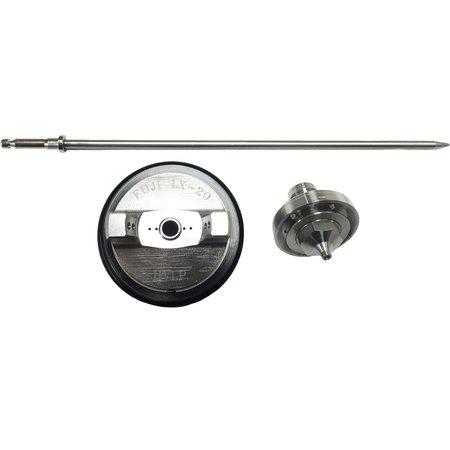

Fuji LX-20 1.0 mm air cap set with needle and nozzle
Air cap set shown

Fuji 6200LX Air Cap Sets for the LX-20 Spray Gun, 1.0 to 2.0 mm

In stock - 10 items available
SKU: 6200LX-1.0 UPC: 612850620101
5 sizes · 1.0 to 2.0 mm · LX-20 only
Regular price $88.95 CAD
Size
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!

Genuine Fuji 6200LX air cap sets for the Fuji LX-20 compressor spray gun. Each set is a matched air cap, fluid needle and fluid nozzle, in 5 sizes from 1.0 to 2.0 mm, so one LX-20 can handle more than one coating. The LX-20 comes with the 1.4 mm size installed.

Key Features & Benefits

  • 5 sizes, 1.0 to 2.0 mm: match the cap to your coating.
  • Complete matched set: air cap, needle and nozzle.
  • Standard size 1.4 mm: the size installed on the LX-20.
  • Genuine Fuji Spray parts from Toronto, Canada.

Compatibility

6200LX sets fit only the Fuji LX-20 compressor spray gun. Fuji makes separate 6300MPX sets for the MPX-30. They don't fit Fuji HVLP turbine guns. See all compressor spray guns.

Which Size Do I Need?

Size Part Use it for
1.0 mm 6200LX-1.0 Fine finishing with thinner coatings.
1.2 mm 6200LX-1.2 Fuji's pick for clear coat. Comes with LX-20 kits.
1.4 mm 6200LX-1.4 The set that comes on the LX-20. Fuji's pick for base coat.
1.7 mm 6200LX-1.7 Heavier coatings. Comes with LX-20 kits.
2.0 mm 6200LX-2.0 The largest set, for the thickest coatings.

Product Specifications

Part numbers 6200LX-1.0 (1.0 mm), 6200LX-1.2 (1.2 mm), 6200LX-1.4 (1.4 mm), 6200LX-1.7 (1.7 mm), 6200LX-2.0 (2.0 mm)
Includes Air cap, needle and nozzle
Fits Fuji LX-20 compressor spray gun only
Standard size 1.4 mm
Coatings Waterborne and solvent-based, including high-solids
Brand Fuji Spray, Toronto, Canada

How to Change an Air Cap Set

  1. Clean and disconnect. Flush the gun with the right cleaner, then disconnect it from the air supply.
  2. Remove the air cap. Unscrew the retaining ring at the front of the gun and lift off the air cap.
  3. Pull the needle. Back out the fluid control knob, remove the spring, then squeeze the trigger and slide the needle out.
  4. Remove the nozzle. Unscrew the fluid nozzle with a spray gun wrench.
  5. Fit the new size. Install the nozzle snugly, then the needle, spring, knob, air cap and retaining ring on the LX-20. Always fit the cap, needle and nozzle from the same set.
  6. Test on a panel. Set the pressure at the gun inlet, then adjust the fan and fluid flow until the pattern is even.

Why Buy From The Paint People?

We're a family-run paint and spray equipment dealer in Mississauga, Ontario, since 1997. Our Rockwood Village spray centre sells, rents and repairs sprayers, and we stock gun cleaning kits, strainers and other genuine Fuji parts. Orders over $249 ship free in Canada (excluding the territories), and our best price guarantee beats a lower price on the same item. See the full Fuji Spray range.

Will it fit?

Made for the Fuji LX-20.

6200LX sets fit only the Fuji LX-20 compressor spray gun.

Use the right set

Fuji makes separate air cap sets for each compressor gun. Order a different set for:

  • The MPX-30: use MPX-30 sets (6300MPX).
  • Fuji HVLP turbine guns, which take their own sets.
  • Other brands' guns. Not sure what you have? Send us a photo.

Size guide

Match the cap to the coating.

Smaller sets suit thinner coatings and a finer pattern. Larger sets move heavier coatings. Start with the standard size and go from there.

Finest

1.0mm

Fine finishing with thinner coatings.

$88.95#6200LX-1.0
Clear coat

1.2mm

Fuji's pick for clear coat. Comes with LX-20 kits.

$88.95#6200LX-1.2
Standard set

1.4mm

The set that comes on the LX-20. Fuji's pick for base coat.

$88.95#6200LX-1.4
Heavier

1.7mm

Heavier coatings. Comes with LX-20 kits.

$88.95#6200LX-1.7
Heaviest

2.0mm

The largest set, for the thickest coatings.

$88.95#6200LX-2.0

Always follow your coating maker's recommended set-up and test on a panel first.

Not sure? Start with 1.4 mm.

It's the size that comes on the LX-20. LX-20 kits also include 1.2 and 1.7 mm sets.

What's included

A complete, matched set.

Every 6200LX set

  • Air cap
  • Fluid needle
  • Fluid nozzle
  • Genuine Fuji Spray part, sized as marked

Specifications

LX-20 air cap specs.

Part numbers6200LX-1.0 (1.0 mm), 6200LX-1.2 (1.2 mm), 6200LX-1.4 (1.4 mm), 6200LX-1.7 (1.7 mm), 6200LX-2.0 (2.0 mm)
IncludesAir cap, needle and nozzle
FitsFuji LX-20 compressor spray gun only
Standard size1.4 mm
CoatingsWaterborne and solvent-based, including high-solids
BrandFuji Spray, Toronto, Canada

Changing sizes

Swap sizes in six steps.

  1. 1Clean and disconnectFlush the gun with the right cleaner, then disconnect it from the air supply.
  2. 2Remove the air capUnscrew the retaining ring at the front of the gun and lift off the air cap.
  3. 3Pull the needleBack out the fluid control knob, remove the spring, then squeeze the trigger and slide the needle out.
  4. 4Remove the nozzleUnscrew the fluid nozzle with a spray gun wrench.
  5. 5Fit the new sizeInstall the nozzle snugly, then the needle, spring, knob, air cap and retaining ring on the LX-20. Always fit the cap, needle and nozzle from the same set.
  6. 6Test on a panelSet the pressure at the gun inlet, then adjust the fan and fluid flow until the pattern is even.

Why buy from us

A spray shop, not just a website.

Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.

FAQ

LX-20 air cap questions, answered.

Which gun do 6200LX air cap sets fit?

Only the Fuji LX-20 compressor spray gun. Fuji makes separate 6300MPX sets for the MPX-30.

Which size comes on the LX-20?

Every LX-20 comes with the 1.4 mm air cap installed. LX-20 kits also include 1.2 and 1.7 mm sets and a regulator.

What's included in a set?

A matched air cap, fluid needle and fluid nozzle. Always change all three together.

Which size should I choose?

Fuji recommends 1.2 mm for clear coat and 1.4 mm for base coat. Use 1.0 mm for fine finishing with thinner coatings, and 1.7 or 2.0 mm for heavier coatings.

Do I need to thin my coating?

Follow your coating maker's thinning and spray gun set-up. Bigger sets suit heavier coatings, but always test on a panel before you spray the job.

Can you service my gun?

Yes, once it's out of warranty. Our Rockwood Village spray centre in Mississauga repairs spray guns. Contact us to book it in. Still under Fuji's 24-month warranty? Contact Fuji Spray first.

Get the most from your LX-20.

Tell us what you're spraying. We'll help you pick the size.
