Fuji Spray · Compressor pressure pot
Two quarts.
Any angle.

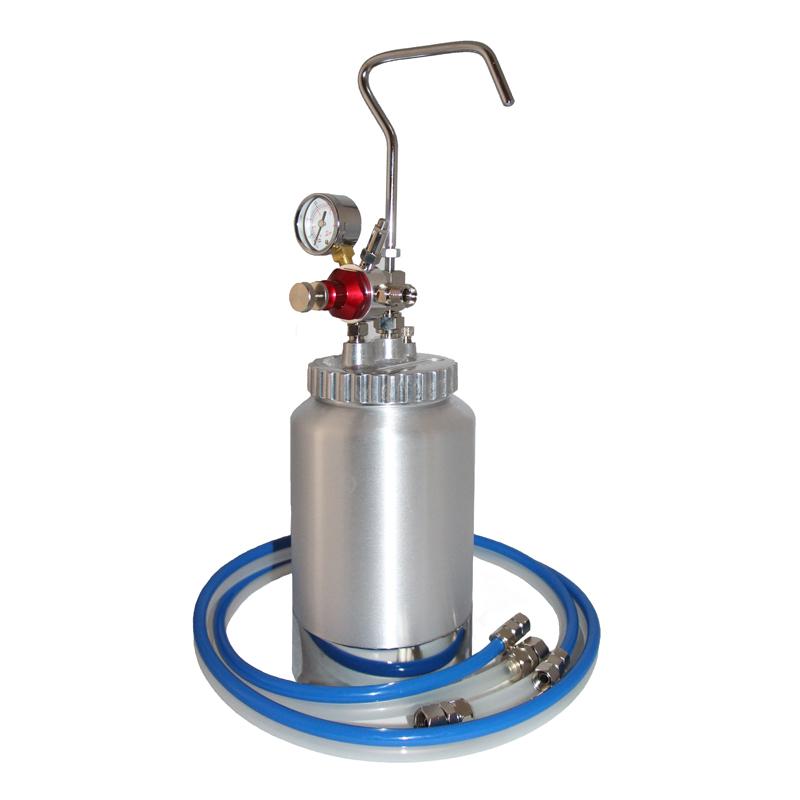

The genuine Fuji 5466 is a 2 qt pressure pot for air compressors, sold with a 6 ft fluid and air hose. It holds twice a bottom-feed cup and over three times a gravity cup, and it sprays at any angle, even upside down.
2 qtpressure pot
6 ftfluid and air hose
Any angleeven upside down
40 PSImax air supply
Pulvérisateur Fuji 5466 2Qt. Pot de pression de compresseur avec tuyau de fluide et d'air de 6 pieds
2 qt pot · For air compressors · 6 ft fluid and air hose
Prix habituel
$289.00 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
SPÉCIFICATIONS :
Pression d'air maximale 40 PSI (4,1 bar)
Réglage de la soupape de sécurité 40 PSI (4,1 bar)
Taille de l'entrée d'air 1/4” NPS (M)
Taille de la sortie de fluide 3/8” NPS (M)
Caractéristiques :
Capacité de pulvérisation à n'importe quel angle, y compris à l'envers
Capacité de matériau deux fois supérieure à celle de votre pistolet de pulvérisation à alimentation inférieure, et plus de trois fois supérieure à celle de votre pistolet de pulvérisation à alimentation par gravité
Will it fit?
Made for compressor setups.
The 5466 runs on air from a compressor and feeds a pressure-feed gun through the included 6 ft fluid and air hose.
LX-20 compressor gun
Pressure-feed version runs from a pot.
$395MPX-30 compressor gun
Siphon version runs from a pot.
$359Spraying with a Fuji turbine?
Turbine owners don't need a compressor.
- 4 and 5-stage Fuji turbines: the 5432 turbine pressure pot.
- Need more capacity? The 5470 2.5 gallon pot.
Compare
Which Fuji pressure pot?
The 5432 runs off your Fuji turbine. The 5466 and 5470 need an air compressor.
| 5466 2 qtThis pot | 5432 2 qt | 5470 2.5 gal | |
|---|---|---|---|
| Air from | An air compressor | Your 4 or 5-stage Fuji turbine | An air compressor |
| Capacity | 2 qt | 2 qt | 2.5 US gal |
| Hoses | 6 ft fluid and air hose included | 6 ft fluid hose included | Sold separately, 5487 recommended |
| Carry it | By the handle | On a belt, by the handle or in the backpack | Rolls on 4 casters |
| Price | $289 | $429 | $519 |
As listed by Fuji Spray. Prices update from the store.
Why a pressure pot
More coating, less stopping.
Bigger capacityTwice a bottom-feed cup and over three times a gravity cup.
Any angleSpray ceilings, undersides and inside cabinets, even upside down.
Ready to hook upComes with a 6 ft fluid and air hose.
What's included
Pot and hose.
In the box
- 2 qt pressure pot assembly
- 6 ft 2-in-1 fluid and air hose
Specifications
5466 pot specs.
| Part number | 5466 |
|---|---|
| Capacity | 2 qt |
| Air source | Air compressor |
| Maximum air supply pressure | 40 PSI |
| Safety valve setting | 40 PSI |
| Air inlet | 1/4" NPS (M) |
| Fluid outlet | 3/8" NPS (M) |
| Hose | 6 ft 2-in-1 fluid and air hose included |
| Capacity vs cups | Twice a bottom-feed cup, over three times a gravity cup |
| Brand | Fuji Spray, Toronto, Canada |
How to
Set up and spray.
- 1Connect the airRun air from your compressor to the pot's 1/4" air inlet. Never exceed 40 PSI air supply.
- 2Connect the gunFit the 6 ft fluid and air hose between the pot and a pressure-feed gun.
- 3Strain and fillStrain the coating into the pot and seal the lid.
- 4Set the pressureStart low and raise the pressure until the gun sprays a full, even pattern.
- 5SpraySpray at any angle, even upside down.
- 6Release and cleanRelease the air pressure before you open the lid, then flush the pot, hose and gun.
Goes with it
More for your pressure pot.
Pots, hoses, parts and guns, all genuine Fuji.
5487 2-in-1 hose, 25 ft
Fluid and air hose for compressor pots.
$121.855486 2-in-1 hose, 6 ft
Fluid and air hose for compressor pots.
$51.85LX-20 compressor gun
Pressure-feed version runs from a pot.
$395MPX-30 compressor gun
Siphon version runs from a pot.
$3595470 2.5 gallon pot
Compressor pot on casters.
$5195432 2 qt turbine pot
Pressure pot kit for 4 and 5-stage Fuji turbines.
$429Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.355448-20 cup liners
1 qt and 2 qt liners. 20-pack.
$16.55Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
5466 pot questions, answered.
Does it work with a Fuji turbine?
No. The 5466 needs an air compressor. Fuji 4 and 5-stage turbine owners can use the 5432 turbine pot.
What's included?
The 2 qt pressure pot assembly and a 6 ft 2-in-1 fluid and air hose.
Can I get a longer hose?
Yes. The 5487 2-in-1 hose is 25 ft of fluid and air hose for compressor pots.
What's the maximum air pressure?
The maximum air supply pressure is 40 PSI, and the safety valve is set to 40 PSI.
What size are the fittings?
The air inlet is 1/4" NPS male and the fluid outlet is 3/8" NPS male.
Which gun should I use?
A pressure-feed compressor gun, like the Fuji LX-20 pressure-feed version or the MPX-30 siphon version. Not sure? Ask our spray team.
Fewer refills, better finishes.
Not sure what fits your setup? Tell us your turbine, compressor or gun and we'll check.
