Fuji Spray · T-Series gravity cup
A spare 600 mL cup
for your T75G.

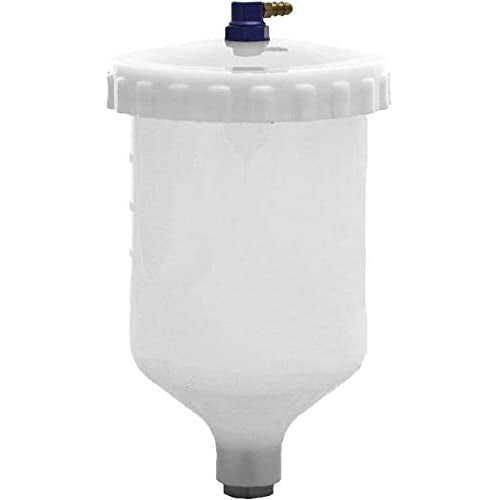

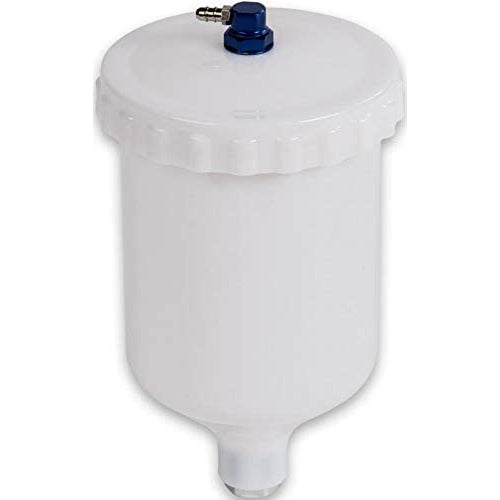

The genuine Fuji 9860 is a complete 600 mL nylon gravity cup for the T75G. Its redesigned screw-in lid seals without a gasket, and the pressure tube has a check valve to stop coating backing up.
600 mLnylon gravity cup
3parts in the assembly
T75Gand T-Series gravity guns
GenuineFuji Spray part
Ensemble de tasse de gravité en nylon Fuji # 600cc pour pistolet pulvérisateur T75G
600cc nylon cup · Screw-in lid, no gasket · T75G
Prix habituel
$74.15 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
- COMPATIBILITÉ : Compatible avec les pistolets pulvérisateurs de la série T
- CONCEPTION AMÉLIORÉE : Couvercle redessiné offrant une excellente étanchéité
- PRATIQUE : Conception légère
- QUALITÉ : Tube de pression avec clapet anti-retour pour éviter les refoulements de peinture
- MOINS DE PIÈCES D'USURE : Aucun joint d'étanchéité requis
Will it fit?
Made for Fuji T-Series gravity guns.
Fits the centre-mount T75G gravity gun, the gravity option on Fuji Mini-Mite, Q Platinum and D6 systems.
Need a different cup?
Centre-mount T-Series cups don't fit side-mount or bottom-feed guns.
- G-XPC gun: the 9850 400cc or 9870 600 mL side-mount cup.
- Bottom-feed T70 or M-Model: the 2095 quart cup.
- Other Fuji guns: send us a photo and we'll find the right cup.
Compare
Which T-Series cup?
All four screw onto the T75G and other centre-mount T-Series gravity guns. Pick by capacity and material.
| 9860 600 mL nylonThis cup | 9740 400 mL | 9760 600 mL aluminum | 9775 1000 mL | |
|---|---|---|---|---|
| Capacity | 600 mL | 400 mL | 600 mL | 1000 mL |
| Material | Nylon | Aluminum | Aluminum | Aluminum |
| Lid seal | Screw-in lid, no gasket | 9050 gasket | Gasket | Gasket |
| Pressure tube | With check valve | #2024L | Included | With check valve |
| Best for | Everyday cabinet work, light to hold | Small parts and lighter handling | A metal cup in the 600 mL size | Long runs with fewer refills |
| Price | $74.15 | $70.95 | $74.35 | $84.75 |
Capacities and parts as listed by Fuji Spray. Prices update from the store.
Why this cup
What the 9860 does well.
Screw-in lid, no gasketFuji's redesigned lid seals without a gasket, so there's one less part to wear out.
Check-valve pressure tubeKeeps coating from backing up into the pressure tube.
Light nylon cupLighter in the hand than an aluminum cup on long spraying days.
What's included
Ready to screw on.

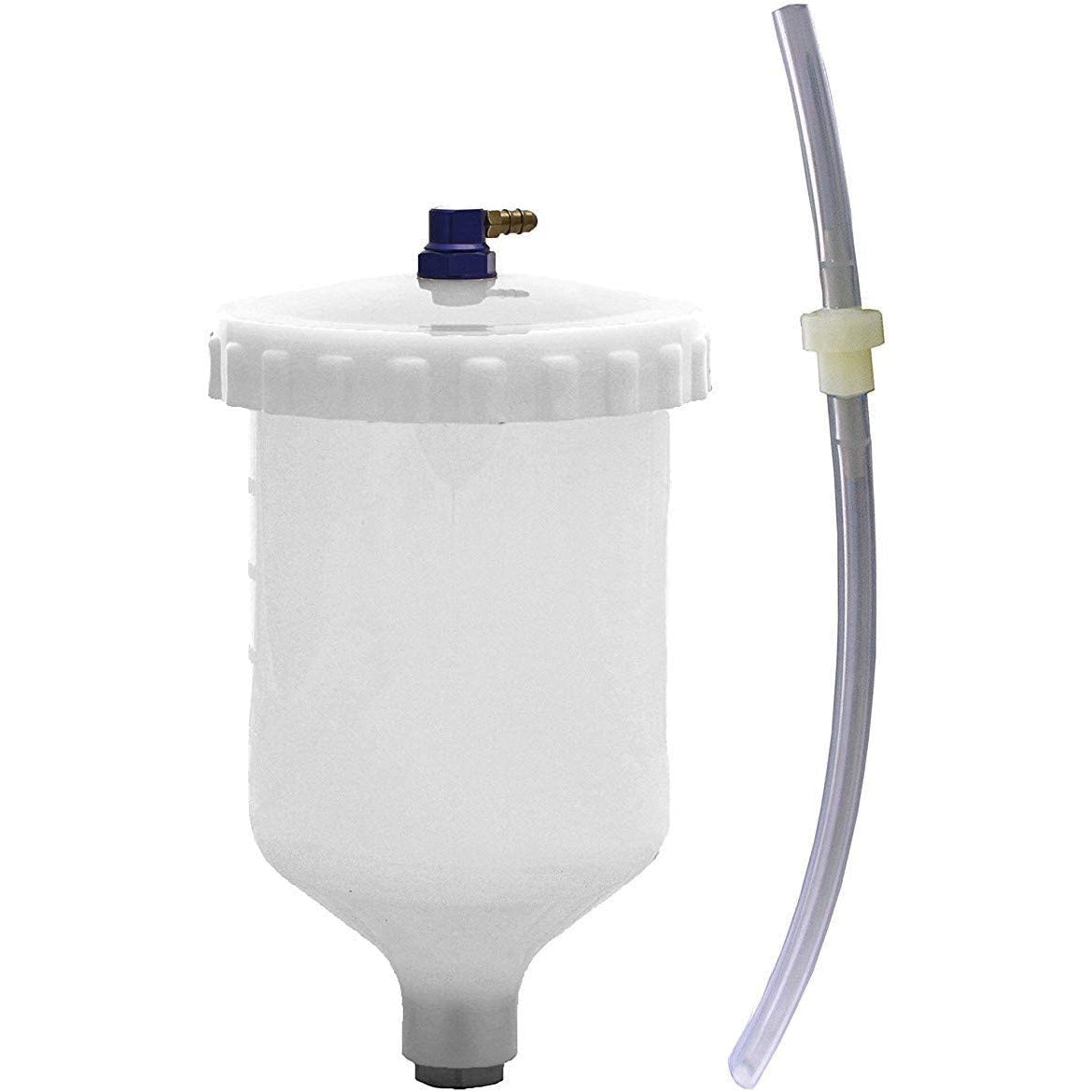

In the 9860 assembly
- 600 mL nylon gravity cup
- Screw-in lid
- Pressure tube with check valve
Specifications
9860 cup specs.
| Part number | 9860 |
|---|---|
| Capacity | 600 mL |
| Material | Nylon |
| Type | Centre-mount gravity cup assembly |
| Includes | 600 mL nylon gravity cup, screw-in lid and pressure tube with check valve |
| Lid seal | Screw-in lid, no gasket needed |
| Fits | Fuji T75G and other centre-mount T-Series gravity guns |
| Brand | Fuji Spray, Toronto, Canada |
Care
Keep the cup clean and sealing.
- 1Strain every fillStrain the coating into the cup so debris doesn't reach the nozzle.
- 2Empty and wipeAfter spraying, pour out what's left and wipe the cup with a cleaner-soaked rag.
- 3Flush the gunHalf-fill the cup with cleaner, swirl it, then open the fluid knob and trigger to flush it through.
- 4Clean the lidClean the inside and outside of the cup and lid.
- 5Check the tubeLook for dried coating on the pressure tube and replace it if it's blocked.
- 6Check the sealReplace the gasket or diaphragm when it's worn or swollen so the cup holds pressure.
Goes with it
More for your T75G.
Other cup sizes, seals, caps and a rebuild kit, all genuine Fuji.
9775 1000 mL cup
Bigger T75G gravity cup, fewer refills.
$84.759740 400 mL cup
Smaller, lighter T-Series gravity cup.
$70.959760 600 mL aluminum cup
Aluminum T-Series gravity cup.
$74.355100 air caps
0.8 to 2.5 mm caps for T70 and T75G guns.
$99.955262 rebuild kit
Seals and parts for T70 and T75 guns.
$58.255330 gun holder stand
Holds a gravity gun upright to fill and clean.
$21.95Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
9860 cup questions, answered.
Which gun does the 9860 cup fit?
The Fuji T75G gravity gun and other centre-mount T-Series gravity guns, including the T75G option on Mini-Mite, Q Platinum and D6 systems.
What's included?
600 mL nylon gravity cup, screw-in lid and pressure tube with check valve.
Does it need a gasket?
No. The redesigned screw-in lid seals without one.
Is this the cup that comes on the T75G?
The T75G comes with a 600 mL nylon gravity cup, the same size as the 9860. It makes a good spare for a second colour or coating.
Will it fit the G-XPC or T70?
No. The G-XPC takes the 9850 or 9870 side-mount cup, and the T70 is a bottom-feed gun that takes the 2095 quart cup.
How do I clean it?
Empty it, wipe it with a cleaner-soaked rag, flush the gun with cleaner, and check the pressure tube and lid seal. Never soak the whole gun in solvent.
Keep your T75G ready to spray.
Not sure which cup fits your gun? Send us a photo and we'll check.
