Fuji Spray · LX-20 rebuild kit
Bring your LX-20
back to new.
The genuine Fuji 6282 rebuild kit replaces the air distributor, diffuser, seals, packing, valve and springs that wear in the LX-20 compressor gun over time. Fit it when the spray or trigger feel starts to slip, or as routine maintenance.
10genuine Fuji parts
LX-20compressor gun
Air capsets sold separately
Repairsat our spray centre
Kit de réparation Fuji Spray 6282 LX-20™
10 genuine parts · LX-20 compressor gun
Prix habituel
$74.95 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
Kit de reconstruction pour pistolet pulvérisateur Fuji LX-20™
Ce kit de reconstruction comprend :
- Distributeur d'air
- Diffuseur d'air
- Joint de diffuseur d'air
- Joint d'aiguille
- Écrou de joint d'aiguille
- Soupape de broche
- Ressort de soupape
- Ressort d'aiguille
- Écrou de vis de fluide
- Bouton de contrôle de fluide
Will it fit?
Made for the Fuji LX-20.
The 6282 kit fits Fuji's LX-20 compressor spray gun.
Have a different gun?
The 6282 is for the LX-20 only.
- MPX-30: the 6382 rebuild kit.
- Fuji turbine guns: the 5262 or 9610 kit.
- Rather not do it yourself? Our Mississauga spray centre repairs out-of-warranty guns.
When to rebuild
Signs your gun is due.
The finish has slippedA worn air distributor, diffuser or seal can affect atomization.
It's leakingWorn packing and seals can let coating or air leak where they shouldn't.
The trigger feels offTired valve and needle springs change how the trigger returns.

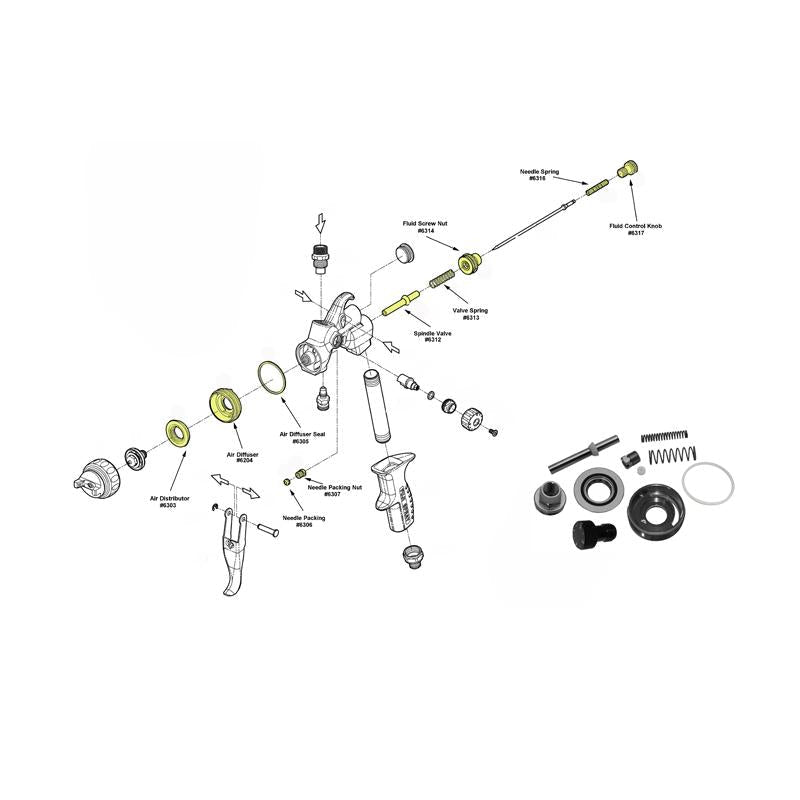

What's included
Ten parts, one kit.
In the 6282 kit
- Air distributor
- Air diffuser
- Air diffuser seal
- Needle packing
- Needle packing nut
- Spindle valve
- Valve spring
- Needle spring
- Fluid screw nut
- Fluid control knob
Specifications
6282 rebuild kit specs.
| Part number | 6282 |
|---|---|
| Includes | Air distributor, air diffuser, air diffuser seal, needle packing, needle packing nut, spindle valve, valve spring, needle spring, fluid screw nut, fluid control knob |
| Fits | Fuji LX-20 compressor spray gun |
| Not included | Air cap, needle and nozzle. Those come as a matched LX-20 air cap set |
| Brand | Fuji Spray, Toronto, Canada |
How to rebuild
Rebuild in six steps.
- 1Clean the gun firstFlush it with the right cleaner and disconnect the air line.
- 2Remove the collar and air capUnscrew the collar at the front of the gun and lift off the air cap.
- 3Pull the needleUnscrew the fluid control knob slowly so you don't lose the spring, squeeze the trigger and slide the needle out.
- 4Swap the worn partsReplace the seals, springs, packing and other worn parts with the ones from the kit, one at a time so nothing gets mixed up.
- 5ReassembleOil only the needle shaft, not the tip, then refit the needle, spring, knob, air cap and collar.
- 6Test on cardboardSet the fan and fluid flow and check the pattern is even before you spray the job.
Goes with it
More for your LX-20.
Caps, pots, hoses and cleaning supplies, all genuine Fuji.
LX-20 air cap sets
Matched cap, needle and nozzle sets.
$88.95Gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95LX-20 HVLP compressor gun
Gravity or pressure feed, 1.4 mm.
$3955466 2 qt compressor pot
2 qt pot with 6 ft fluid and air hose.
$2895487 2-in-1 hose, 25 ft
Fluid and air hose for compressor pots.
$121.85Cone strainers, 40-pack
Strain every coat for a clean finish.
$15.35Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
6282 rebuild kit questions, answered.
Which gun does the 6282 kit fit?
The Fuji LX-20 compressor spray gun.
What's in the kit?
An air distributor, air diffuser, air diffuser seal, needle packing, needle packing nut, spindle valve, valve spring, needle spring, fluid screw nut and fluid control knob.
Does it include an air cap, needle or nozzle?
No. Those come as a matched LX-20 air cap set. Replace them as a set if they're worn or damaged.
How do I keep the gun in good shape?
Clean it right after every use, never soak the whole gun in solvent, and never use a wire brush. Oil only the needle shaft, not the tip.
Can you fix it for me?
Yes, if it's out of warranty. Our Rockwood Village spray centre in Mississauga repairs sprayers. Contact us to book it in. Still under Fuji's 24-month warranty? Contact Fuji Spray first, because repairs by anyone other than Fuji or its authorized agent void the warranty.
Keep your LX-20 spraying like new.
Not sure it's the seals? Describe the problem and we'll help you find the cause.
