Fuji Spray · LX-20 HVLP compressor gun
Three caps.
One gun.

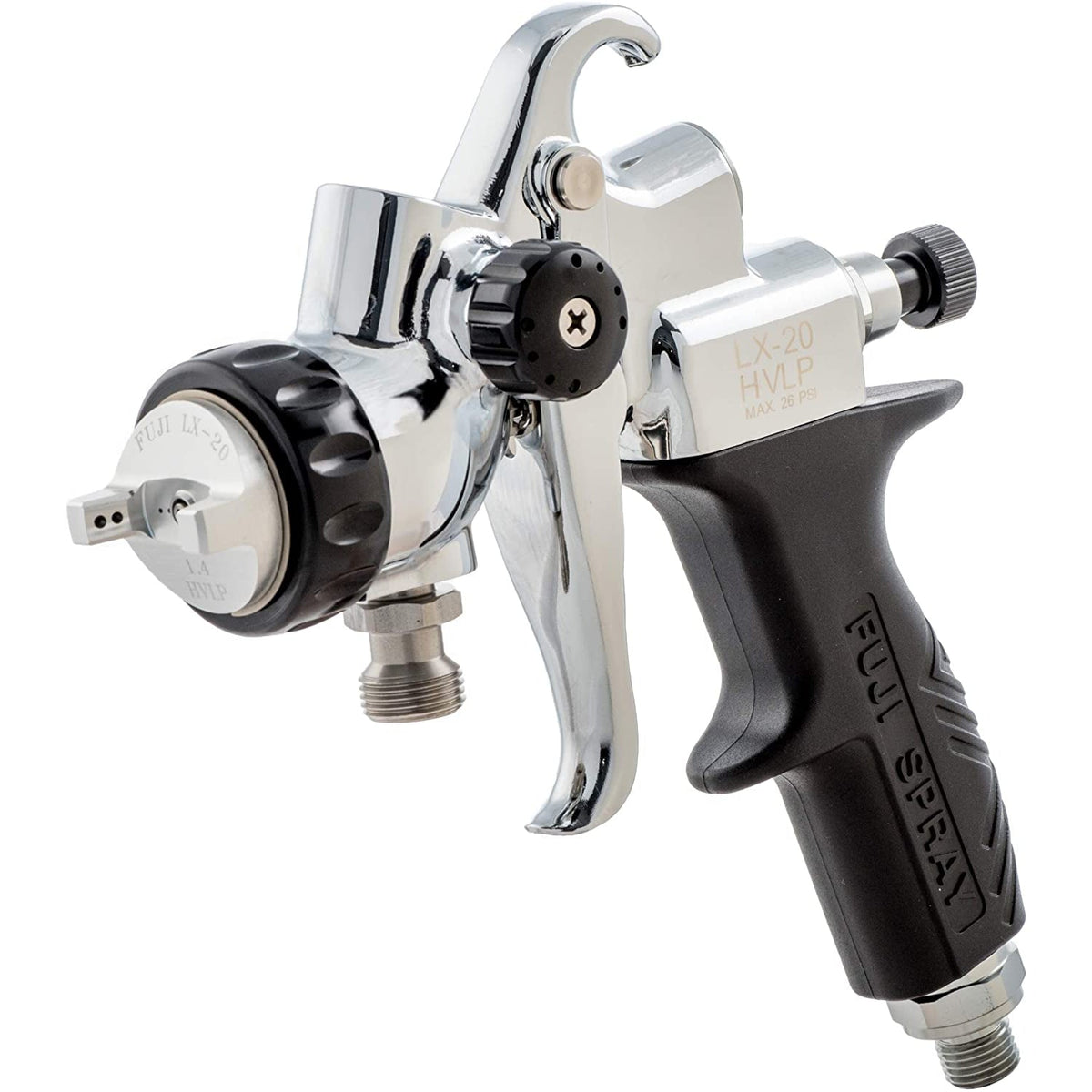

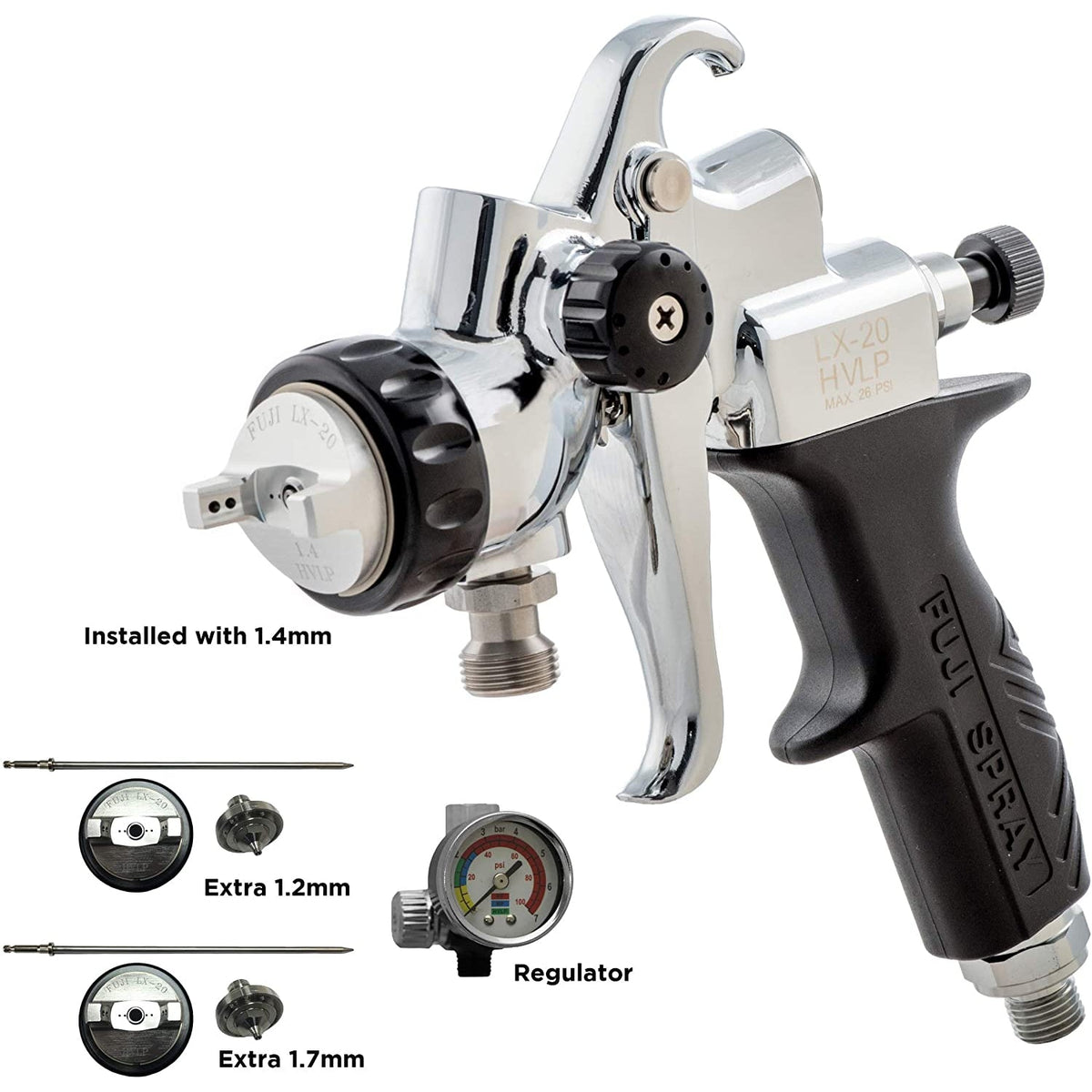

The Fuji LX-20 is an HVLP spray gun for your compressor, in gravity or pressure feed. It comes with a 1.4 mm air cap, extra 1.2 and 1.7 mm caps, and a regulator.
15.2cfm at 26 psi
1.4 mm+ 1.2 and 1.7 mm caps
502 gwithout cup
330 mmmax fan width
Pistolet pulvérisateur à compresseur HVLP Fuji Gravity Feed
HVLP compressor gun · 1.4 mm + 2 extra caps · 15.2 cfm at 26 psi
Prix habituel
$395.00 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
- Une efficacité de transfert élevée signifie moins de pulvérisation excessive et des économies accrues
- Passages de fluide 100% en acier inoxydable adaptés aux revêtements à base d'eau et aux solvants
- Recommandé 15,2 cfm à 26 psi
- 2 jeux de buse d'air supplémentaires inclus (1,2 mm et 1,7 mm)
- Comprend une tasse de gravité en nylon de 600 cc et un régulateur de pression
Will it fit?
Set it up your way.
Add more air cap sizes, run it from a pressure pot, or keep it serviced with the rebuild kit.
LX-20 air cap sets
1.0 to 2.0 mm, sold separately.
$88.955466 2 qt compressor pot
Pressure pot with 6 ft fluid and air hose.
$2896282 LX-20 rebuild kit
Seals and wear parts for the LX-20.
$74.95Before you buy
The LX-20 runs on compressed air, not a turbine.
- Your compressor needs to deliver 15.2 cfm at 26 psi at the gun.
- The pressure-feed version needs a pressure pot.
- Not sure? Tell us your compressor and we'll check.
Features
Ready to spray out of the box.
Three air caps1.4 mm installed, plus 1.2 and 1.7 mm caps to match thin or heavy coatings.
Regulator includedSet the air pressure right at the gun.
Stainless fluid passages100% stainless steel for waterborne and solvent-based coatings.
What's included
Pick your version.
Choose from

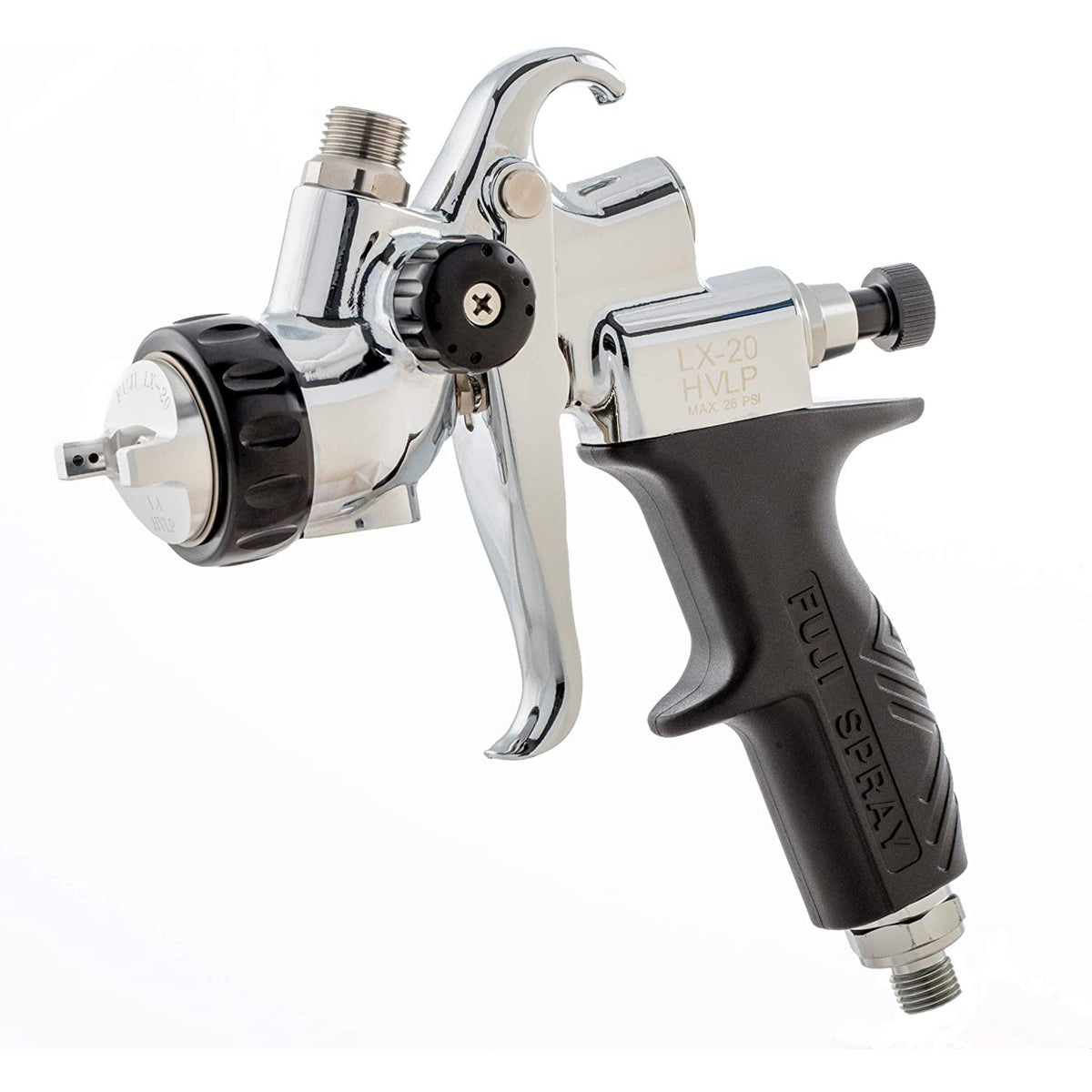

- Gravity feed, no cup (6265G-LX-N-14K)

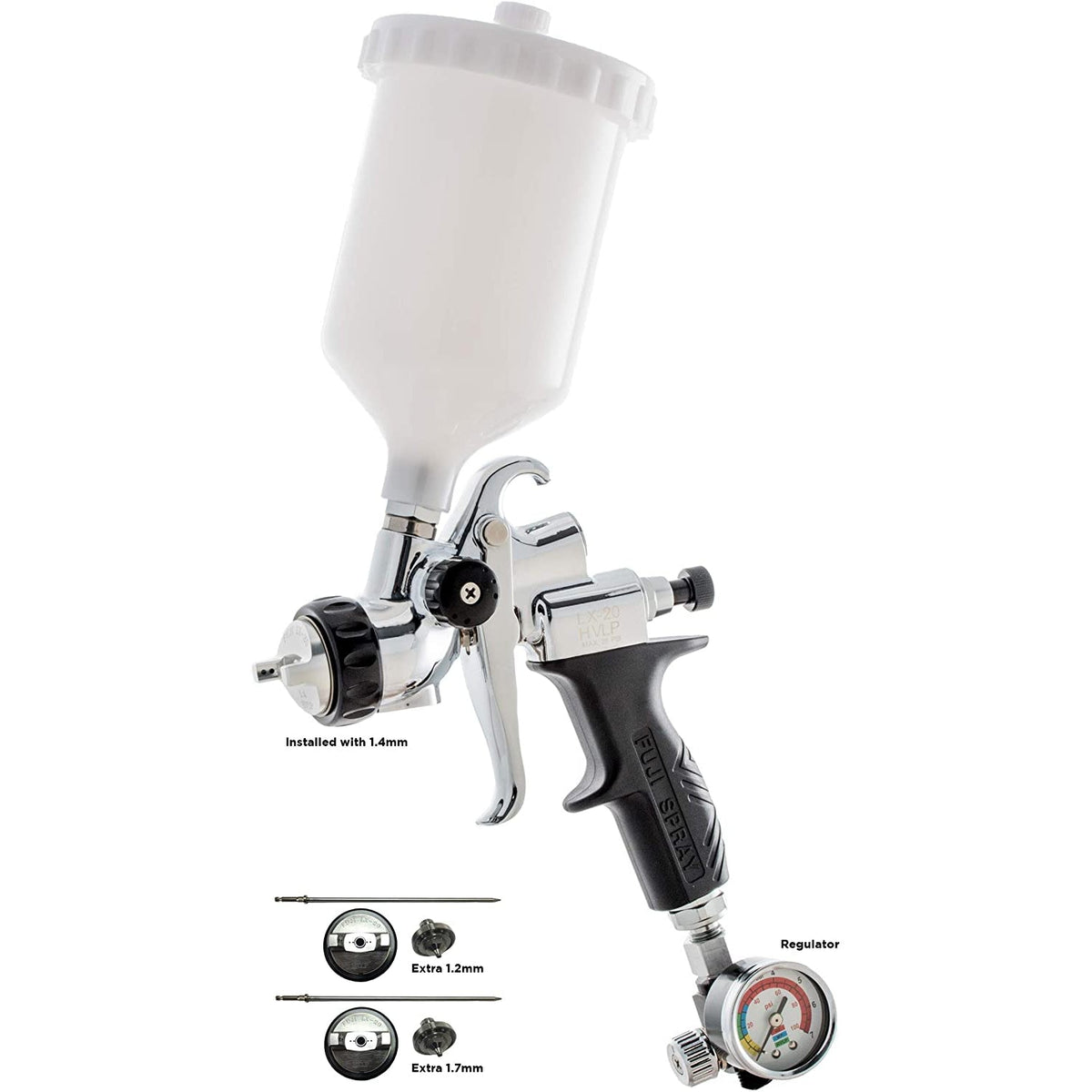

- Gravity feed with 600cc nylon cup (6265G-LX-C-14K)
- Pressure feed (6260P-LX-N-14K)
Worth adding
Pairs well
Specifications
LX-20 gun specs.
| Model | Fuji LX-20 HVLP compressor spray gun |
|---|---|
| Versions | Gravity feed, no cup (6265G-LX-N-14K); gravity feed with 600cc nylon cup (6265G-LX-C-14K); pressure feed (6260P-LX-N-14K) |
| Air cap installed | 1.4 mm |
| Extra air caps included | 1.2 mm and 1.7 mm |
| Air cap sets available | 1.0, 1.2, 1.4, 1.7 and 2.0 mm, sold separately |
| Recommended air supply | 15.2 cfm at 26 psi at the gun inlet |
| Air inlet | 1/4" BSP and NPT |
| Air hose | 5/16" ID |
| Fluid coupler | M16 x 1.5 (gravity), 3/8" x 19 (pressure) |
| Max fan width | 330 mm |
| Weight | 502 g, without cup |
| Fluid passages | 100% stainless steel |
| Coatings | Waterborne and solvent-based, including high-solids |
| Also included | Pressure regulator, spray gun wrench, manual |
| Warranty | 24 months limited (Fuji Spray), original purchaser, from the date of purchase |
| Brand | Fuji Spray, Toronto, Canada |
Set-up
Set up the LX-20.
- 1Check your airYour compressor and lines need to deliver 15.2 cfm at 26 psi at the gun. Use clean, dry air.
- 2Fit the regulatorFit the included regulator at the 1/4" air inlet so you can set pressure right at the gun.
- 3Pick your capStart with the 1.4 mm cap. Go to 1.2 mm for thin finishes or 1.7 mm for heavier coatings.
- 4Feed the gunFill the gravity cup, or connect your pressure pot's fluid hose to the pressure-feed gun.
- 5Test the patternSpray a test board. Adjust the side-mounted fan control and the fluid knob until the pattern is even.
- 6Clean right awayFlush the gun with the right cleaner for your waterborne or solvent-based coating.
Goes with it
Goes with the LX-20.
Air caps, a pressure pot, a touch-up cup, a gun stand and strainers, all listed by Fuji for the LX-20.
LX-20 air cap sets
1.0 to 2.0 mm, sold separately.
$88.956282 LX-20 rebuild kit
Seals and wear parts for the LX-20.
$74.955466 2 qt compressor pot
Pressure pot with 6 ft fluid and air hose.
$2896375 3 oz gravity cup
Small cup for touch-ups on the gravity gun.
$64.706380 regulator gauge
Spare regulator for the LX-20.
$37.205330 gun holder stand
Holds the gravity gun upright to fill.
$21.959030-10 barrel strainers
Stainless mesh for the nylon gravity cup. 10-pack.
$23.553100 gun cleaning kit
Brushes and lubricant for every clean-up.
$37.95Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
LX-20 gun questions, answered.
What size compressor do I need?
Fuji recommends 15.2 cfm at 26 psi at the gun inlet. Check your compressor's rated cfm at that pressure, not just its tank size. Not sure? Tell us your compressor and we'll check.
Gravity or pressure feed?
Choose gravity feed for smaller jobs with a cup on top of the gun. Choose pressure feed to run from a pressure pot, like the 5466 2 qt compressor pot, for bigger jobs without refilling a cup.
Which air caps does it come with?
It comes with a 1.4 mm air cap installed, plus extra 1.2 mm and 1.7 mm caps. LX-20 air cap sets from 1.0 to 2.0 mm are sold separately.
What else is in the box?
A pressure regulator for the gun's air inlet, a spray gun wrench and the manual. The gravity version with a cup also includes a 600cc nylon gravity cup.
What coatings can it spray?
With 100% stainless steel fluid passages, the LX-20 handles waterborne and solvent-based coatings, including high-solids. Not sure about yours? Ask us first.
Is there a rebuild kit?
Yes. The 6282 LX-20 rebuild kit has the seals and wear parts to service the gun. For touch-ups on the gravity version, add the 6375 3 oz gravity cup.
What warranty does it have?
Fuji Spray gives the original buyer a 24-month limited warranty from the date of purchase against defects in materials and workmanship. See Fuji's warranty terms, or contact us with questions.
Can you service it for me?
Yes, once it's out of warranty. Our Rockwood Village spray centre in Mississauga repairs spray guns. Contact us to book it in. Still under Fuji's 24-month warranty? Contact Fuji Spray first, because repairs by anyone other than Fuji or its authorized agent void the warranty.
