Fuji Spray · Turbine hose
Bigger turbine.
Same hose.

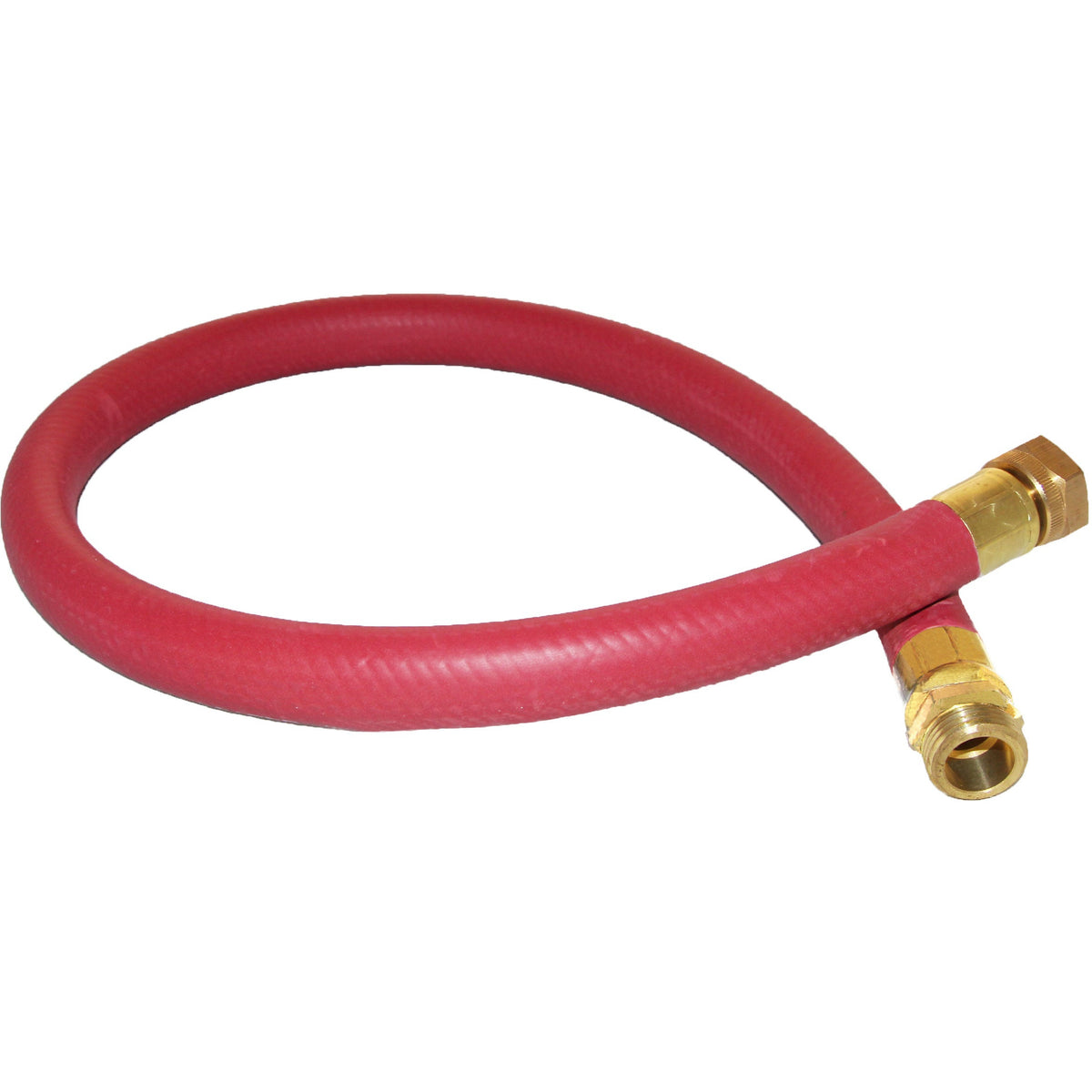

The genuine Fuji 7055 is a 3 ft heavy duty heat-resistant hose that fits between your turbine and your 25 ft hose. It lowers the temperature of the atomizing air, and Fuji recommends it when you step up from a 2 or 3-stage turbine to a 4 or 5-stage turbine and keep your original Hi-Flex hose.
3 ftheat-resistant hose
Cooleratomizing air
4 or 5stage turbine upgrades
Keepyour 25 ft hose
Tuyau chauffant Fuji Spray 7055, 3 pieds
3 ft heat-resistant hose · Keep your hose on a 4 or 5-stage turbine
Prix habituel
$48.75 CAD
Impossible de charger la disponibilité du service de retrait
✓ 10-Day Best Price Beat Guarantee: Found it cheaper? We'll beat it!
Lorsque les peintres professionnels ont besoin de passer des turbines à 2 ou 3 étages à des turbines à 4 ou 5 étages, le tuyau standard peut ne pas être capable de gérer la chaleur accrue générée. C'est pourquoi le tuyau de chaleur 7055, 3 pieds est le choix parfait ! Ce tuyau de chaleur robuste est conçu pour réduire la chaleur de l'air d'atomisation, vous offrant la fiabilité et l'efficacité dont vous avez besoin. De plus, il est conçu pour fonctionner avec toutes les turbines HVLP standard, vous n'aurez donc pas à vous soucier de problèmes de compatibilité. Donc, si vous cherchez un moyen fiable et efficace de mettre à niveau votre poste de travail, le tuyau de chaleur 7055, 3 pieds devrait être en tête de votre liste !
⭐ 3 pieds⭐ Réduit la chaleur de l'air d'atomisation
⭐ Convient à toutes les turbines HVLP standard tout en utilisant le tuyau d'origine
⭐ Recommandé lors de la mise à niveau d'une turbine à 2 ou 3 étages vers une turbine à 4 ou 5 étages.
Compare
Which Fuji hose do I need?
Match the hose to your turbine. More stages mean hotter air, so 5 and 6-stage turbines need a heavier-duty hose.
| 7055 heat hoseThis hose | 7049 / 9049 Hi-Flex | 7088 Heavy Duty | 7073 Super Duty | 6 ft whip hose | |
|---|---|---|---|---|---|
| Length | 3 ft | 25 ft (7.6 m) | 25 ft | 30 ft | 6 ft |
| Colour | Not listed | Blue (7049) or black (9049) | Blue | Grey | Blue (2049F) or black (2268) |
| What it is | Heat-resistant extension at the turbine | Main turbine hose | Main turbine hose, heavy duty | Main turbine hose with 3 ft of high-heat-resistant hose | Light, flexible extension at the gun |
| Use it with | Between the turbine and a 25 ft hose, when you step up to a 4 or 5-stage turbine | 2, 3 and 4-stage Fuji turbines. Fuji doesn't recommend it for 5 or 6-stage | Ships with the Q5 Platinum | All Fuji HVLP turbines. Ships with the D6 | The gun end of a 25 ft hose, never straight on the turbine |
| Fittings | Not listed | 2046 brass quick-connect and 2032 air control valve | Quick-connect and air control valve | 2046 brass quick-connect and 2032 air control valve | Glass fibre-reinforced polymer couplings |
| Price | $48.75 | $99.95 | $105.95 | $129.95 | $59.95 |
Ratings and fittings as listed by Fuji Spray and its dealers. "Not listed" means Fuji doesn't publish it. Prices are live.
Know the hose
What the 7055 heat hose does.
Handles the heatMore stages mean hotter air. The 7055 is heavy duty, heat-resistant hose for the end nearest the turbine.
Cooler atomizing airLowers the temperature of the air before it reaches your hose and gun.
Keep your hoseStep up to a 4 or 5-stage turbine without replacing a good Hi-Flex hose.
What's included
What's in the box.
Included
- 7055 heat hose, 3 ft
Specifications
7055 heat hose specs.
| Part number | 7055 |
|---|---|
| Length | 3 ft |
| Type | Heavy duty heat-resistant hose |
| Fits | Between the turbine and a standard 25 ft Fuji turbine hose |
| Recommended for | Stepping up from a 2 or 3-stage turbine to a 4 or 5-stage turbine while keeping your original Hi-Flex hose |
| Brand | Fuji Spray, Toronto, Canada |
How to
How to fit the heat hose.
- 1Switch offTurn off and unplug the turbine, and let it cool if you've been spraying.
- 2Unhook your hosePull back the quick-connect sleeve and take your 25 ft hose off the turbine.
- 3Fit the heat hoseConnect the 7055 to the turbine.
- 4Reconnect your hoseConnect your 25 ft hose to the other end of the 7055.
- 5Attach the gunFit the gun to the air control valve at the end of your 25 ft hose.
- 6TestTurn the turbine on and spray a test pass on cardboard.
Goes with it
More Fuji hoses and fittings.
Hoses, couplings and valves for Fuji turbines, all in stock at our Mississauga spray centre.
7049 Hi-Flex 25 ft, blue
For 2, 3 and 4-stage Fuji turbines.
$99.959049 Hi-Flex 25 ft, black
For 2, 3 and 4-stage Fuji turbines.
$99.957088 Heavy Duty 25 ft
The hose that ships with the Q5 Platinum.
$105.957073 Super Duty 30 ft
Fits all Fuji turbines. The D6 hose.
$129.956 ft whip hose
Lighter at the gun. Blue or black.
$59.952046 quick-connect coupling
Brass coupling for the hose end.
$8.752032 air control valve
Trims air at the gun to cut overspray.
$5.95Why buy from us
A spray shop, not just a website.
Real spray peopleOur Rockwood Village spray centre in Mississauga sells, rents and repairs sprayers. Ask us about caps, thinning and set-up before you buy.
Parts in stockFilters, air caps, cups, hoses and rebuild kits sit beside the systems, so a $12 filter doesn't take weeks.
Best price beatFind the same Fuji for less and we'll beat the price. How it works.
Family-run since 1997Free shipping on orders over $249 in Canada (excluding the territories), and 35-day returns on unused equipment.
FAQ
7055 heat hose questions, answered.
When do I need the 7055?
Where does it go?
Between the turbine and your standard 25 ft hose. The gun stays on the end of your 25 ft hose.
Should I buy the 7055 or a new hose?
If your hose is in good shape, the 7055 is the cheaper fix. If you want more reach too, the 7073 Super Duty 30 ft hose has 3 ft of heat-resistant hose built in.
What's included?
One 3 ft heat hose.
Which hose does my Fuji turbine need?
For 2, 3 and 4-stage turbines, the 7049 or 9049 Hi-Flex. The Q5 Platinum ships with the 7088 Heavy Duty, and the D6 with the 7073 Super Duty, which fits every Fuji turbine. Stepping up to a 4 or 5-stage turbine and keeping your hose? Add the 7055 heat hose.
Not sure which hose you have?
Send us a photo of the hose and your turbine through our contact page, or bring it to our Rockwood Village spray centre in Mississauga.
Step up without a new hose.
Not sure which hose suits your turbine? Tell us the model, or send a photo, and we'll match it.
