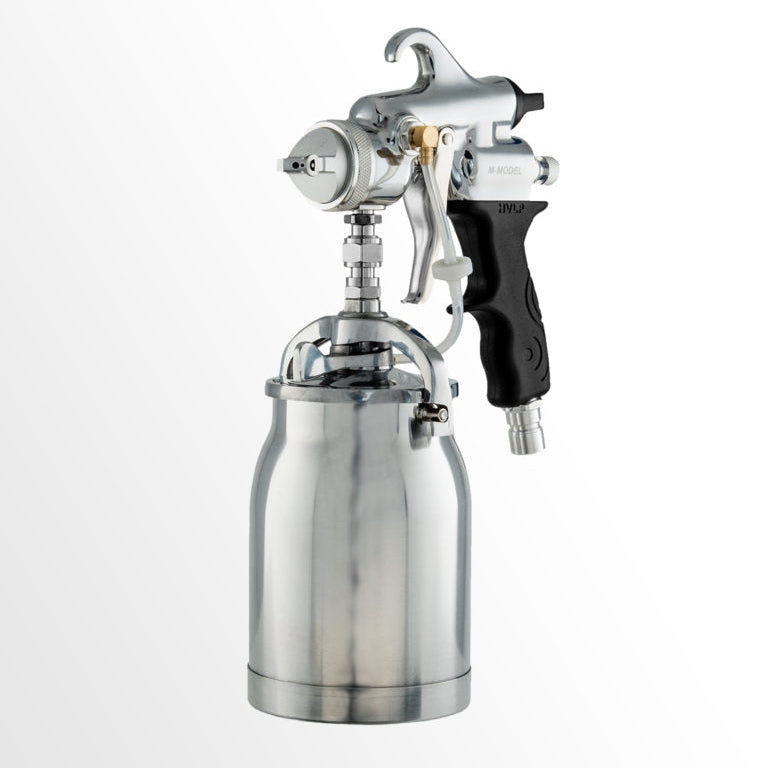

Fuji 7003 M-Model HVLP Turbine Spray Gun, Bottom Feed, 1.8 mm

The Fuji 7003 M-Model HVLP turbine spray gun comes with a 1 qt bottom-feed cup and a 1.8 mm air cap set installed. It's a convertible, non-bleed gun, so you can switch it between bottom feed and gravity feed to suit the job. Fuji offers it with the Semi-PRO 2 2-stage HVLP systems.

Key Features & Benefits

• Convertible: Switch between bottom feed and gravity feed.
• Non-bleed: Air only flows when you pull the trigger.
• Dedicated fan pattern control: Vertical, horizontal or round, from a 1 in. circle to a 12 in. oval.
• 1.8 mm air cap set installed: With a stainless steel needle and nozzle.
• Stay Cool handle: Nylon-coated for a cool, comfortable grip.
• Easy to clean: Comes apart quickly for clean-up and maintenance.

Compatibility

Fits Fuji HVLP turbine hoses. M-Model guns take 7020 M-Model air cap sets in 0.8, 1.0, 1.3, 1.5, 1.8 and 2.0 mm. M-Model parts don't fit other Fuji guns, so use M-Model replacement parts. Want gravity feed from the start? See the 7002G M-Model gravity gun with a 400cc cup.

Product Specifications

How to Use

1. Connect the gun to your turbine hose.
2. Strain and fill. Strain the coating into the 1 qt cup.
3. Set the pattern. Choose vertical, horizontal or round with the fan pattern control.
4. Test on cardboard. Adjust the fluid flow until the spray is even.
5. Spray with the gun square to the surface, overlapping each pass by about half.
6. Clean right away. Take the gun apart and clean the air cap, needle and nozzle.
