Adaptateur de type S2c de la série 3M PPS 2.0, femelle, M16-1.5

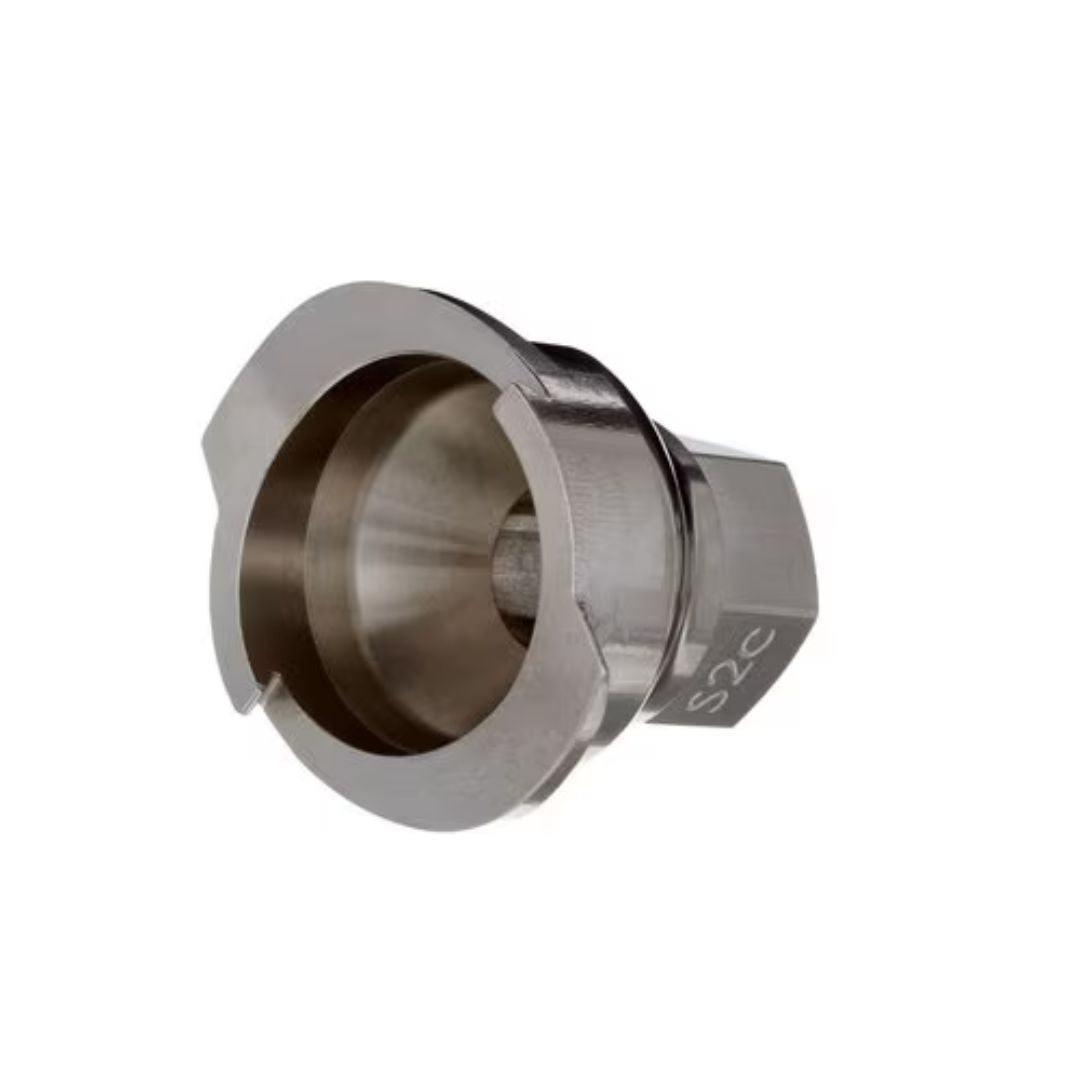

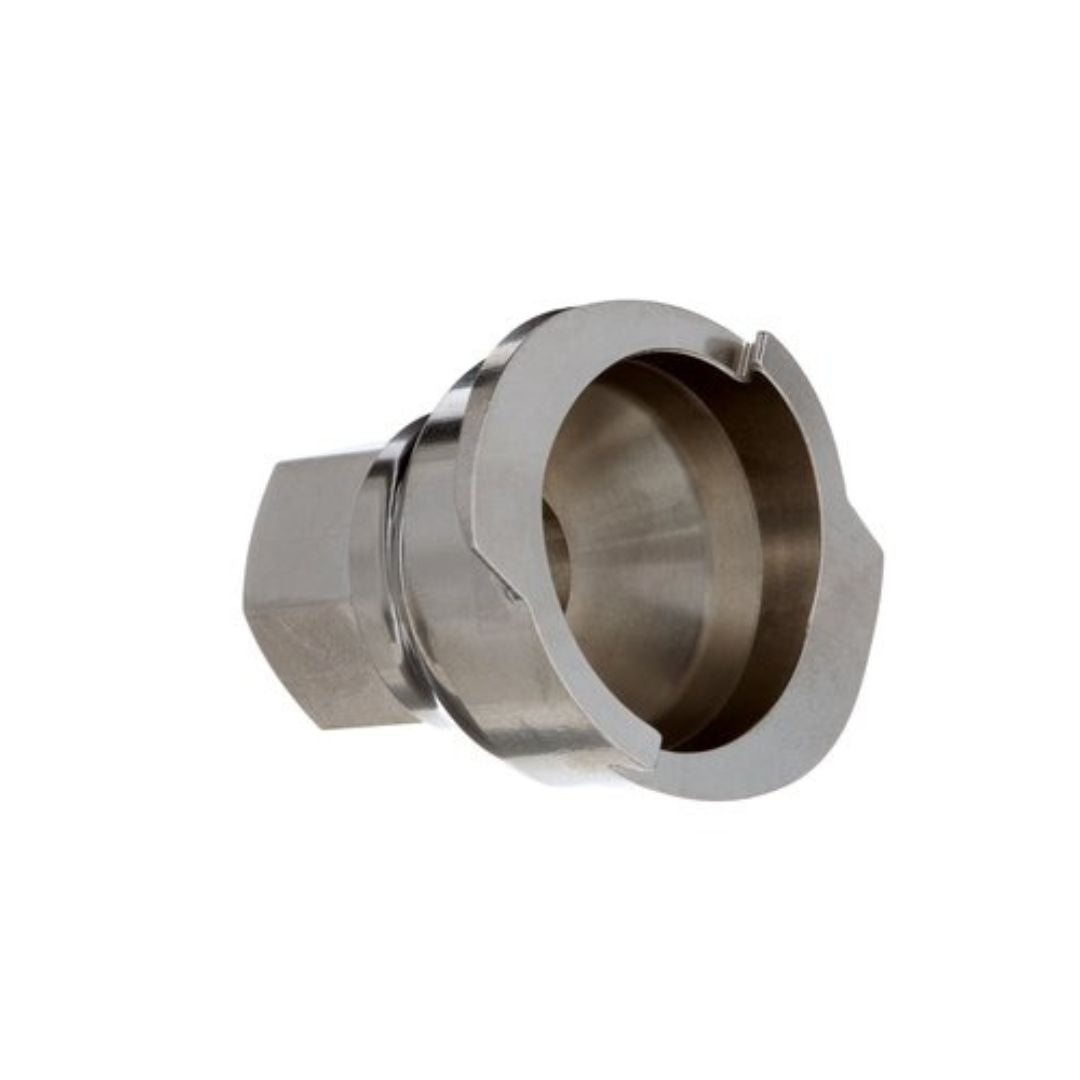

The 3M PPS 2.0 Adapter, Type S2c (26003) lets you run the 3M PPS Series 2.0 disposable cup system on the gravity spray gun you already own. It threads onto guns with a 16 mm x 1.5 mm (M16 x 1.5) cup thread, including the Fuji Spray T75G, Fuji LX-20 and MPX-30 gravity guns, Iwata W400 and LPH400, and dozens more. Once it's on, you mix, filter and spray from a disposable lid and liner, so the only things left to clean are the gun and the adapter. It's a smart upgrade for cabinet painters, furniture finishers, auto refinishers and anyone tired of scrubbing cups between colours.

Key Features & Benefits

• Keep your gun. Take off your existing cup and thread the adapter on. No new spray gun needed.
• Four-point connection on a wide 360° platform. The PPS 2.0 lid connects at four points, so a full cup stays steady through long passes.
• Stainless steel. Resists solvents and lacquer thinners and holds up to daily cleaning.

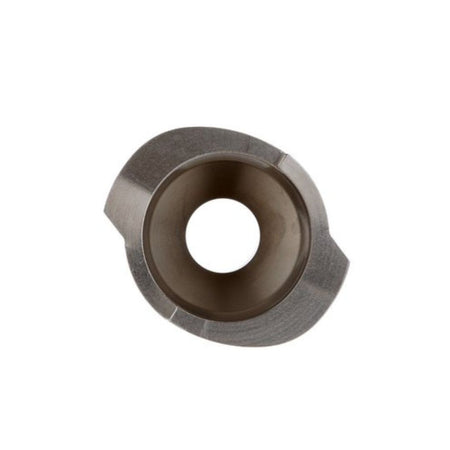

• Wide bowl design. Wipes clean fast between jobs.
• Fits every PPS 2.0 cup size. Works with the 90, 200, 400, 650 and 850 mL PPS 2.0 cups and the PPS 2.0 H/O pressure cups.
• Less solvent, faster clean-up. 3M reports up to 70% less cleaning solvent and up to 50% less prep and clean-up time than conventional cups.

Applications & Recommended Uses

Use the S2c on gravity-feed HVLP turbine and compressor guns with an M16 x 1.5 cup thread. It's a good fit for:

• Cabinet and furniture refinishing with lacquers, primers and waterborne enamels
• Trim, doors and millwork in the shop or on site
• Automotive, marine and equipment refinishing
• Jobs with frequent colour changes, where a fresh liner means no cup to wash
• Small batches you want to mix in the cup, spray, then seal and save

PPS 2.0 is a closed system, so you can spray at any angle, even upside down. That helps inside cabinet boxes and on the undersides of furniture.

How to Install and Use

1. Remove the existing cup from your spray gun.
2. Thread the S2c adapter onto the gun's cup inlet until snug.
3. Mix your coating in a PPS 2.0 liner inside the hard cup, using the mix ratios printed on the cup.
4. Lock the lid onto the cup with a quarter turn, then attach the cup to the adapter.
5. Spray. When you're done, cap the lid with a sealing plug to save leftover material, or throw away the lid and liner.
6. Clean the gun and adapter with a small amount of the right solvent or water for your coating.

PPS 2.0 lids have a built-in 125 or 200 micron filter. Follow your coating maker's filter recommendation.

Why Buy From The Paint People?

We're a family-run Mississauga paint business that has served painters since 1997. We carry the Fuji Spray guns this adapter fits plus 3M PPS 2.0 cups and liners, so you can build the whole setup in one order. Not sure which adapter fits your gun? Email info@thepaintpeople.com with the make and model and we'll point you to the right one.

Specifications

Compatible Spray Guns

3M lists the S2c (26003) for these guns. This is a partial list; check your gun's cup thread if your model isn't here.

• Fuji Spray: T75G gravity, LX-20 Gravity, MPX-30 Gravity
• Iwata: W400, W400LV, LPH400 LV / LVB / LVX, WR-400, LPA-94, LPH440 Primer, VX929, VXL949 Primer
• Graco / Sharpe: LT200, LT300, FX-200, FX-300
• Astro: EVO 4014, EVO 4018, M-Star, Quantum Ultra Light
• Campbell Hausfeld: DH-6500, DH-7800, DH-7900
• Husky: HDS-780, HDS-790, HDS-890 Pro
• Kobalt: KC-566CG, KC-577HG, SGY-AIR86, SGY-AIR88
• Porter-Cable: PSH-1, PSH-3
• Titan: Vaper 1.4 mm and 1.7 mm
• Others: SATAjet B, U-Pol Maximum

Using a Fuji T70, M-Model or another bottom-feed gun? You need the S18 adapter. For the Fuji G-XPC, choose the S24 adapter.

FAQs

Will the S2c adapter fit my Fuji T75G?

Yes. The S2c (26003) is the PPS 2.0 adapter for the Fuji T75G gravity gun, as well as the LX-20 Gravity and MPX-30 Gravity. Bottom-feed Fuji guns like the T70 and M-Model take the S18 instead.

Does it work with original PPS cups and lids?

No. 3M designs Series 2.0 adapters for PPS Series 2.0 lids, liners and cups only.

Which PPS 2.0 cup sizes does it fit?

All of them: Micro 90 mL, Mini 200 mL, Midi 400 mL, Standard 650 mL and Large 850 mL, plus the PPS 2.0 H/O pressure cups.

Does it come with cups, lids or liners?

No, this is the adapter only. Pair it with a PPS 2.0 lid and liner kit, such as the Midi 400 mL kit (26112).

How do I know which PPS adapter my gun needs?

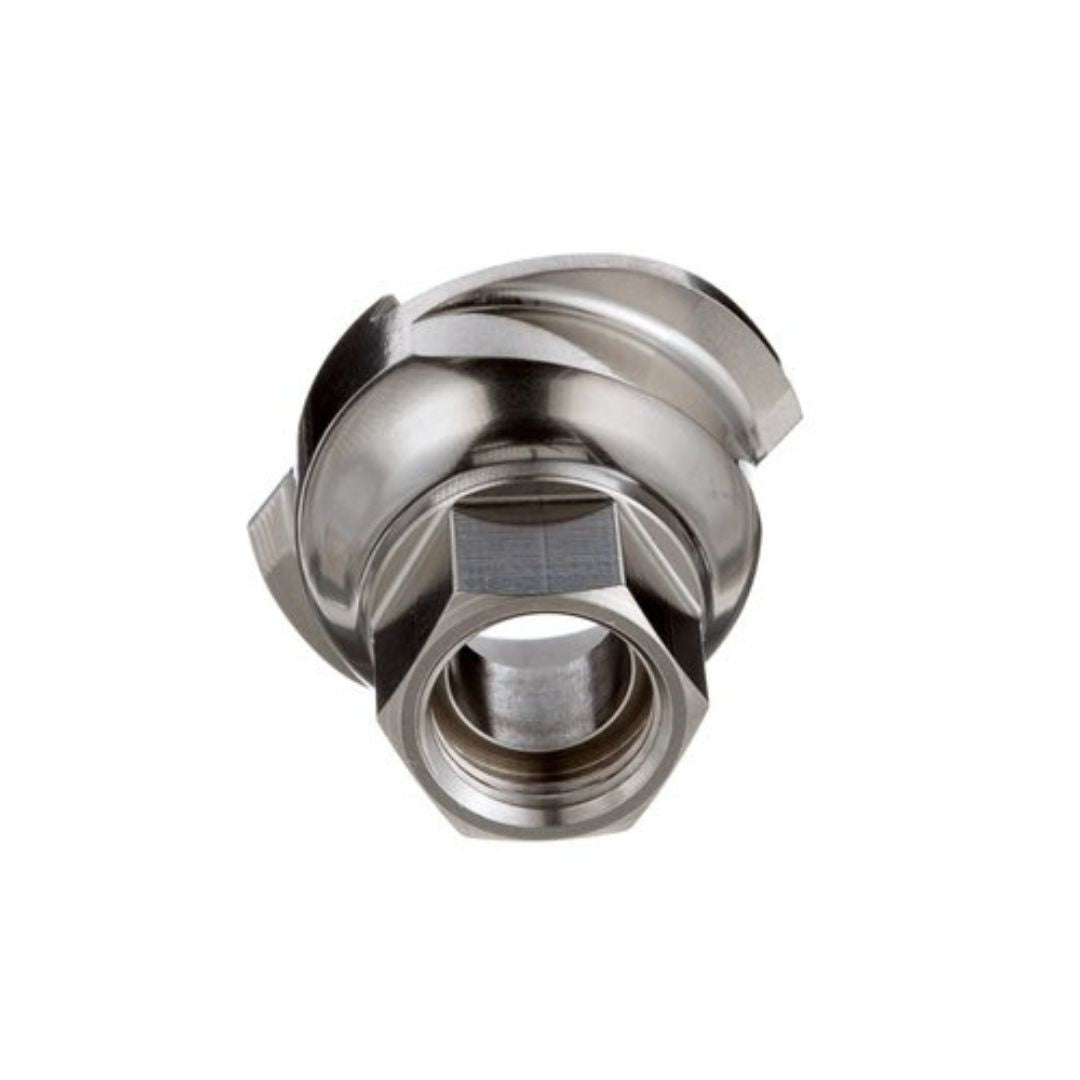

Look up your gun model in the list above, or check the cup thread. The S2c has a female M16 x 1.5 thread. Still unsure? Email us your gun's make and model.

How do I clean the adapter?

The lid and liner are disposable, so only the gun and adapter need cleaning. Flush or wipe the adapter with a small amount of the right solvent or water.
